MBW7000

Waterproof

Waterproof Multi Box

Waterproof Multi Box

You can see the enlarged image by clicking the image.

Data Sheet Download

for 1 Gang

Waterproof Multi Box

  • Catalog No.

    MBW7000

  • Price(JPY YEN)

    ¥11,630

  • Waterproof IP Rating

    IPX5 Equivalent Product

  • Color

    White

  • Weight

    616.5g

  • Note

    with Mount-on-panel Scrwe Set
    with Screw Set for Receptacle Mounting
    with Screw Set for Sealock Plate

*The dust and waterproof performance (IP code) in the notation is in accordance with the test method of JIS C 0920. For details, please refer to "Product performance" at the bottom.

Feauture

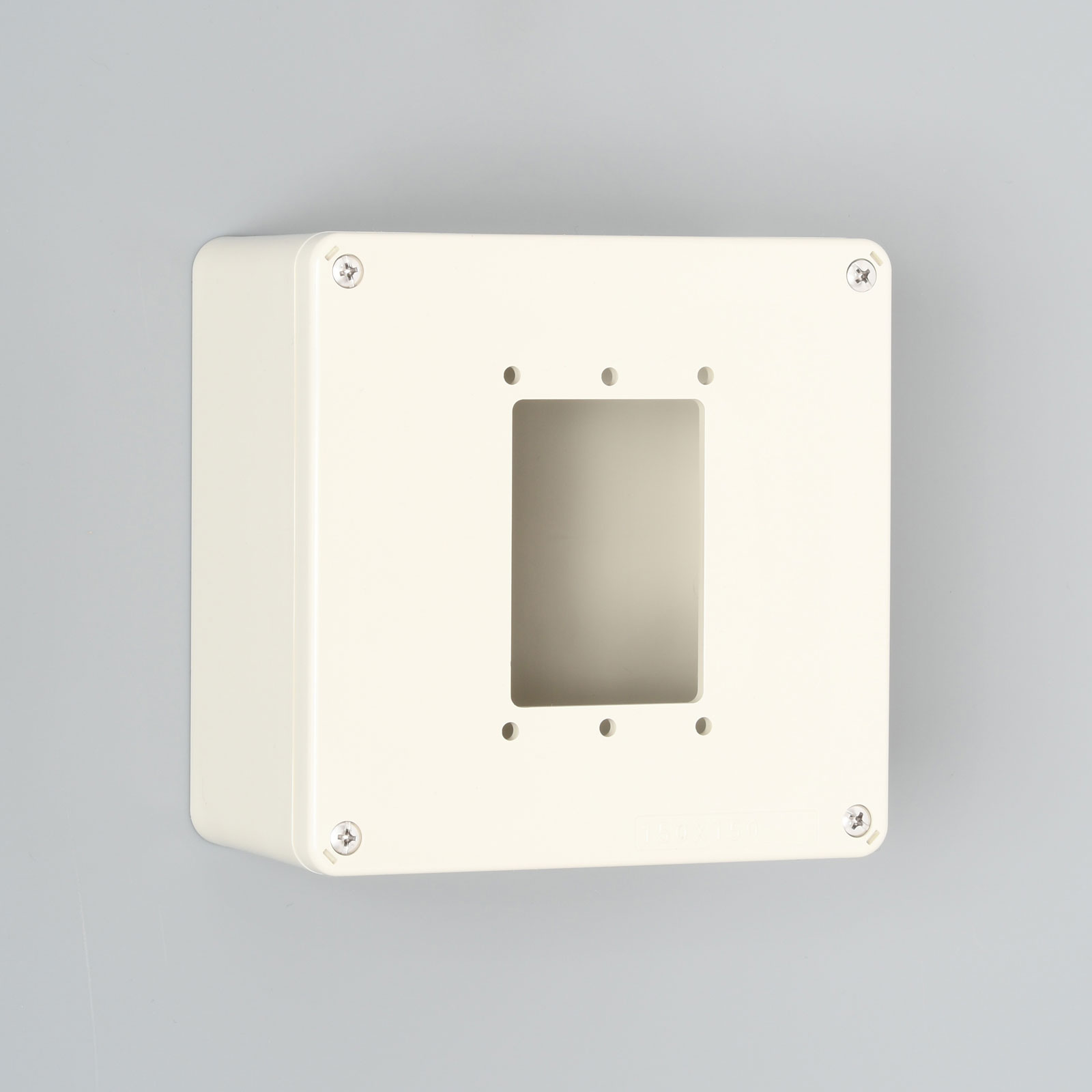

It is an exposed switch box with a cover to which a receptacle can be installed. By properly waterproofing such as the cable insertion hole and combining the waterproof plate, it can be waterproof performance to IPX5. まMoreover, by using various plates, it is possible to use it in the same way as a surface receptacle.

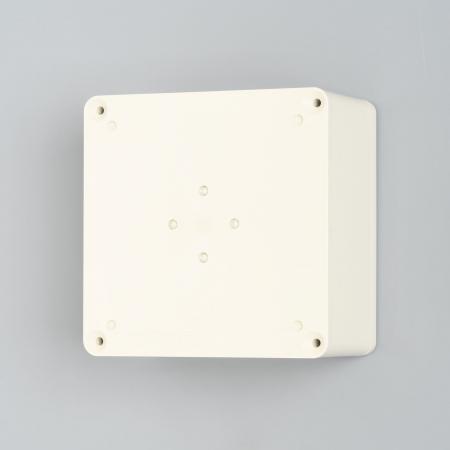

By using metal fittings that can be attached in two directions to the four corners on the back side of the box, it can also be installed on the wall.
