Twist Locking Wiring Devices - AMERICAN DENKI

Feauture

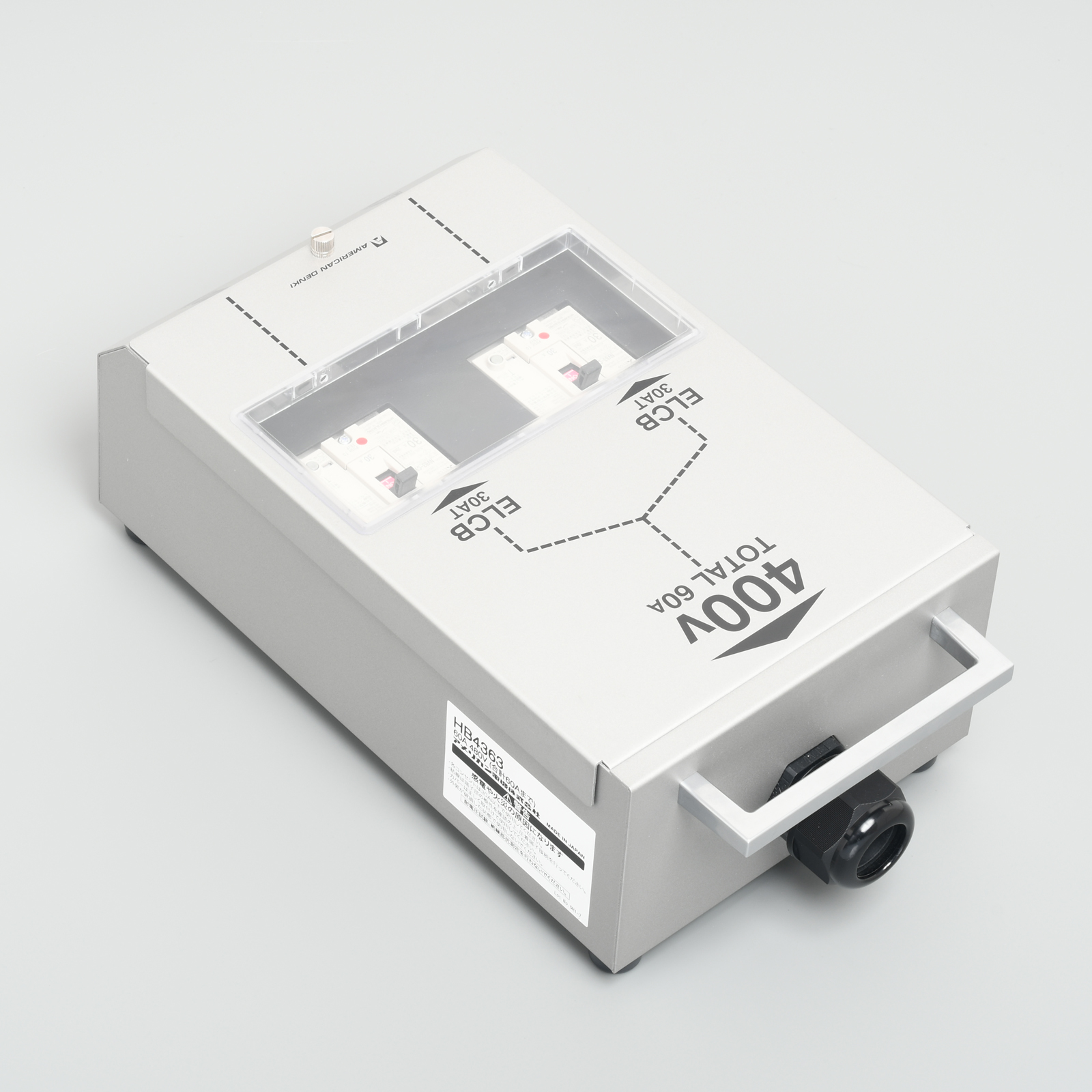

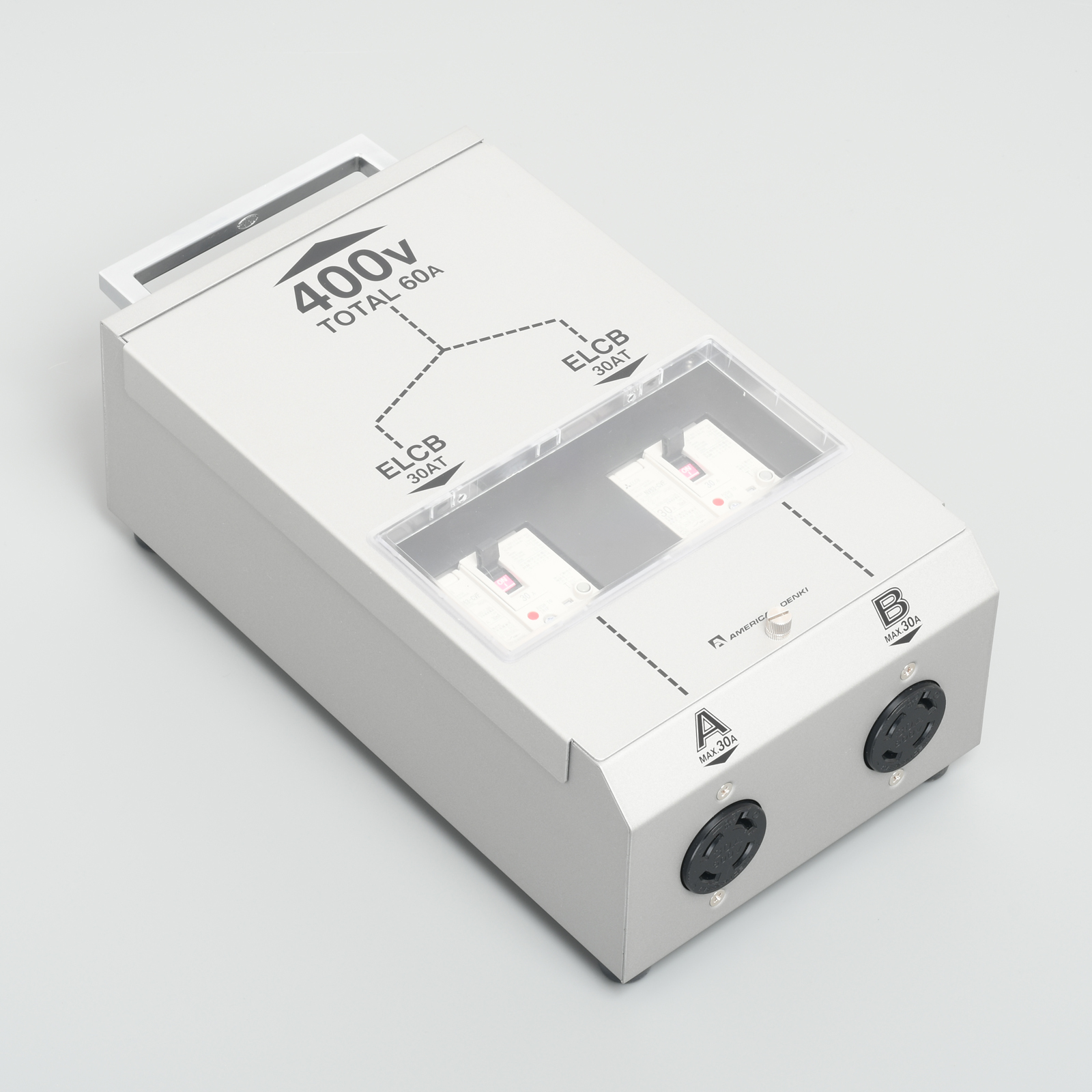

It is a portable steel outlet box, which can supply 2 power source of twist locking 30A through the 60A input.
The wiring capacity must not exceed 30A per 1 outlet for prevention of overcurrent accident, and total load must not exceed 60A.
By installing a 30A leakage breaker at each outlet, it protects equipment from overcurrent and leakage due to overload or short circuit. The operating state of the breaker can be confirmed visually with a transparent confirmation window.
Rubber foot is attached to the bottom, preventing the installation surface from being scratched. On the side of the cable insertion port, a handle that makes it easy to carry when installing or relocating is attached.
By connecting T-shaped connector body on the 100A mainline and using this portable dividing box in combination, it can be used two 30A outlets directly from the 100A mainline.
