4622E-CS

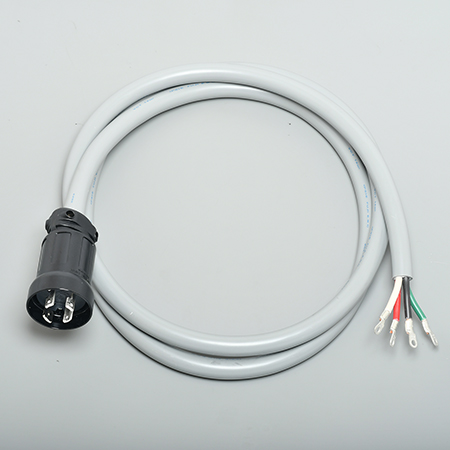

60A Plug with Cable

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 60A 250V

60A Plug with Cable

  • Catalog No.

    4622E-CS

  • Price(JPY YEN)

    ￥26,730

Twist Locking

  • Body Flammability

    UL94 V-0

  • Note

    Polycarbonate Housing Plug with Cable
    VCT14mm²×3M
    with 4 R14-6 Crimp Terminal
    with Insulation Cap×4
    RoHS2 Compliant

Feauture

It is a VCT 14mm² cable 3M set product with 60A polycarbonate housing plug.
Since the terminal end is crimp terminal processed, it can be easily connected to the terminal block of portable dividing box with earth breaker.
It can also be connected to receptacle and connector body.
