HKC2800UL

NEMA

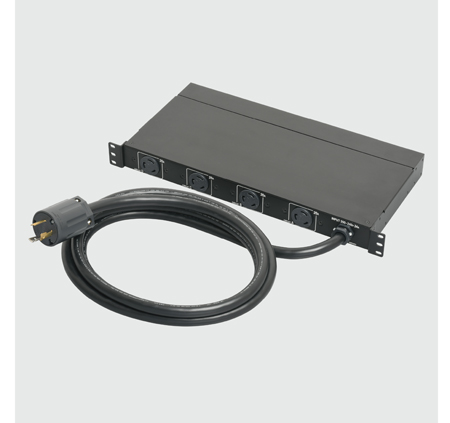

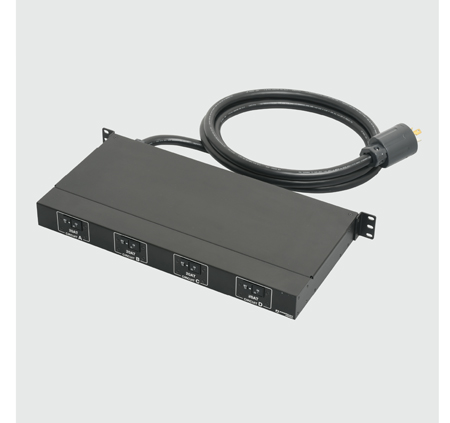

UL Listed and CSA certified 1U Rack Mount PDU

UL Listed and CSA certified 1U Rack Mount PDU

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 30A 250V (NEMA L6-30)

UL Listed and CSA certified 1U Rack Mount PDU

  • Catalog No.

    HKC2800UL

  • Price(JPY YEN)

    ￥133,720

4 Twist Locking

  • NEMA Configuration No.

    Input: NEMA L6-30/Output: NEMA L6-20

  • Color

    Black

  • Weight

    6050g

  • Note

    UL Listed and CSA Certified
    Input Plug: NEMA L6-30
    STO10AWG×3M
    with 20A Circuit Breaker
    File No. E506761
    Category Code: NWGQ, NWGQ7
    RoHS2 Compliant

*This product is for equipment (Products to be mounted on equipment). Please do not use it for other uses.

Feauture

It is a rack mount power distribution unit of UL standard and CSA standard approved specification with 4 NEMA L6-20 outlets and an input plug of NEMA L6-30 (2P, 3W GND 30A 250V), that can be attached to a 19-inch rack 1U size.
Each outlet has a 20A circuit breaker.
Since the attached bracket can attach 10 patterns on both sides of the main body, it supports various power supply environments such as horizontal / vertical / rear / side mounting direction of the rack.
The body is made of sturdy steel plate.
There is a bracket sold separately that can place the chassis inside 40mm of the rack.
