R52-L
2-Pole 3-Wire Grounding 15A 125V

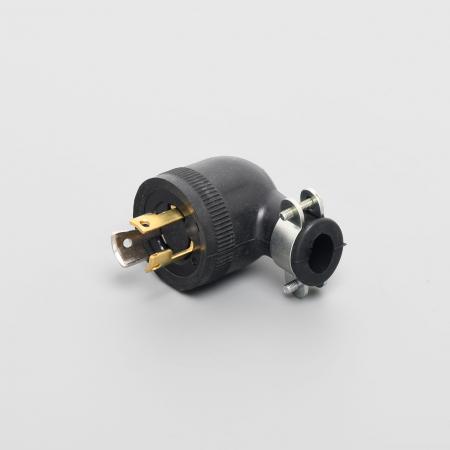

Plug (Rubber Housing)
-
Catalog No.
R52-L
-
Price(JPY YEN)
￥0
-
Discontinued Date
February 20th, 2025
-
Alternative Product
3112EL
Twist Locking
-
Color
Black
-
Wire Size
2PNCT/VCT 2mm²
-
Connectivity
Crimping Terminal
-
Crimp Terminal
R2-4
-
Body Flammability
UL94 V-0
-
Weight
78.0g
-
Note
Rubber Housing
Angle Plug
Discontinued on February 20th, 2025
RoHS2 Compliant
Feauture
Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.This plug is that allows the attached flexible cord exit at a right angle to the plug face.
The material of the main body is made of thermosetting resin excellent in durability and insulation properties, and the housing is made of high grade chloroprene rubber excellent in weather resistance and durability.

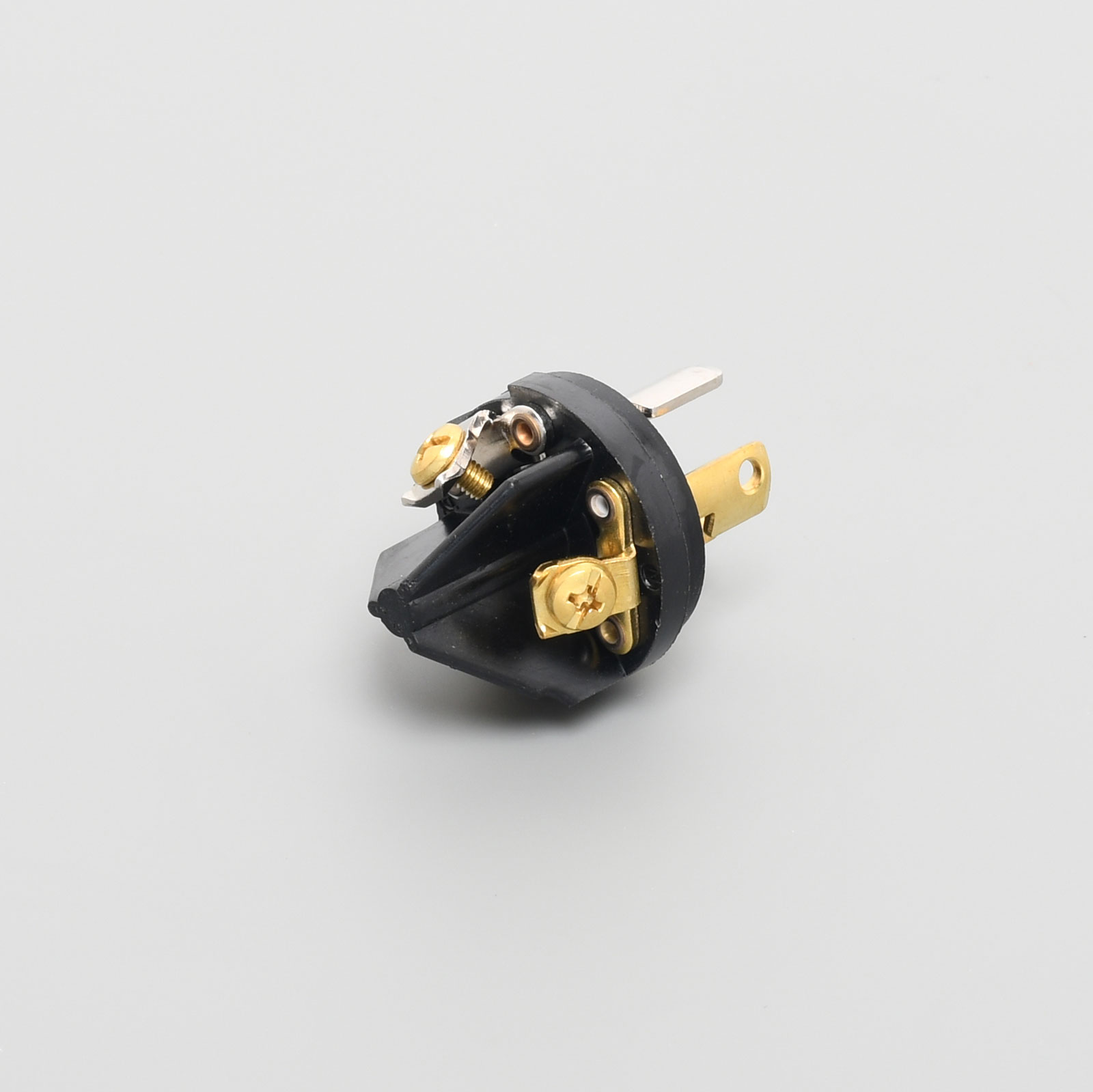

Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
