3212N-L5-BL

NEMA

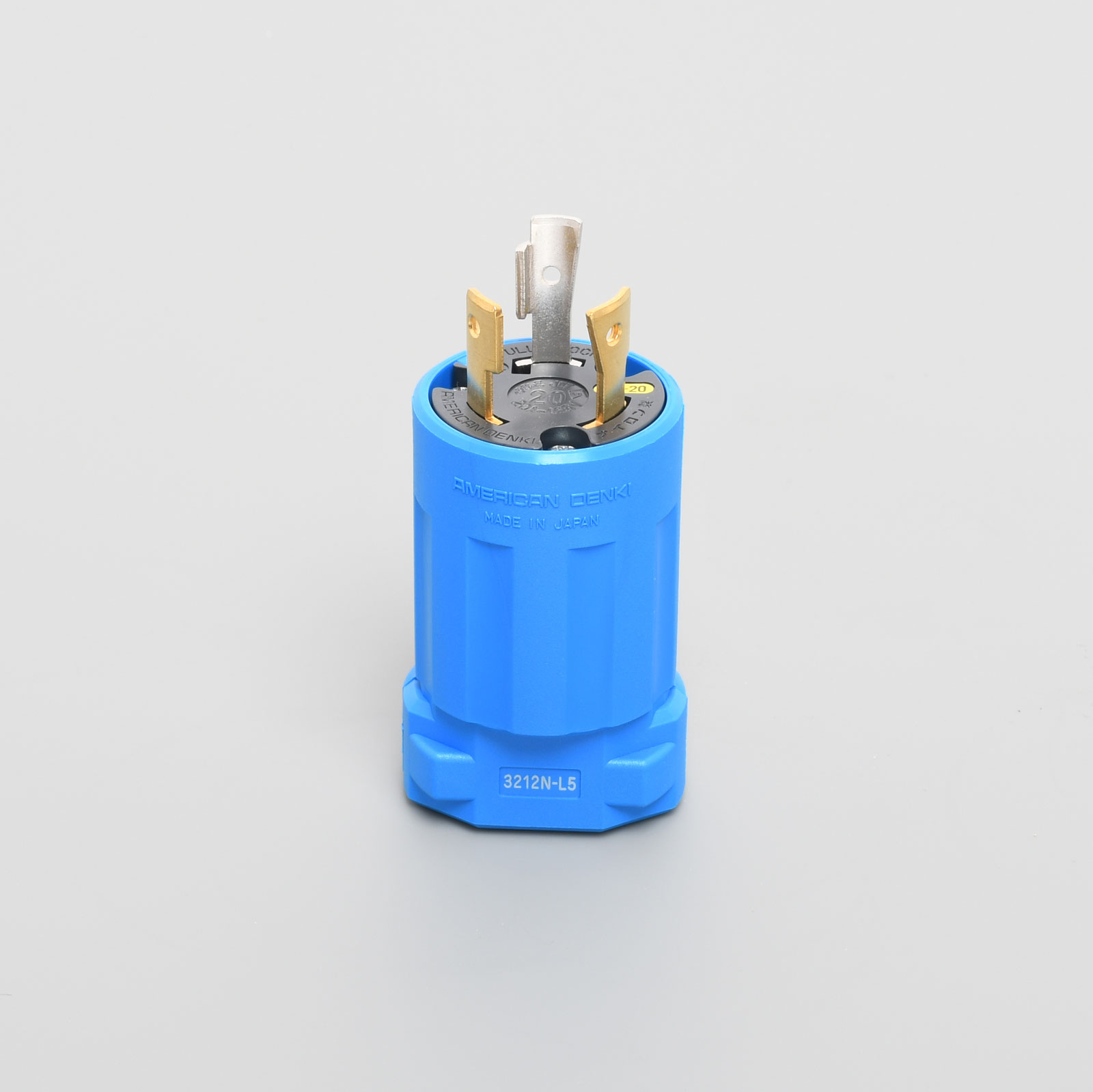

Plug (Nylon Housing)

Plug (Nylon Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 20A 125V (NEMA L5-20)

Plug (Nylon Housing)

  • Catalog No.

    3212N-L5-BL

  • Price(JPY YEN)

    ￥1,330

Twist Locking

  • NEMA Configuration No.

    NEMA L5-20

  • Color

    Blue

  • Wire Size

    2PNCT/VCT 3.5mm²、5.5mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R3.5-4、R5.5-4

  • Body Flammability

    UL94 V-0

  • Note

    Nylon Housing
    RoHS2 Compliant

Feauture

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.
The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
(Red and blue colors are convenient to be color-coded according to source circuit at the same place.)。
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
