3622E

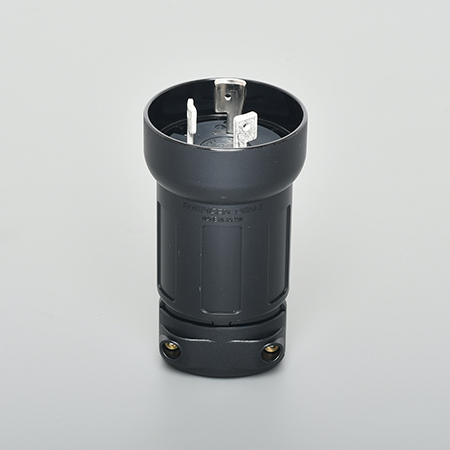

Plug (Polycarbonate Housing)

Plug (Polycarbonate Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 3-Wire 60A 250V

Plug (Polycarbonate Housing)

  • Catalog No.

    3622E

  • Price(JPY YEN)

    ¥5,400

Twist Locking

  • Color

    Black

  • Wire Size

    2CT/VCT 14mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R14-6

  • Body Flammability

    UL94 V-0

  • Weight

    237.2g

  • Note

    Polycarbonate Housing
    RoHS2 Compliant

Feauture

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.
The material of the main body is made of thermosetting resin excellent in durability and insulation properties, and the housing is made of ultrahigh strength polycarbonate resin excellent in impact resistance.
It is light weight and excellent in operability and with a protective shroud to prevent deformation of the blade and hand contact.
Connectivity is "crimp terminal" tightening the terminal screw (double sems) on the side.
