3622R

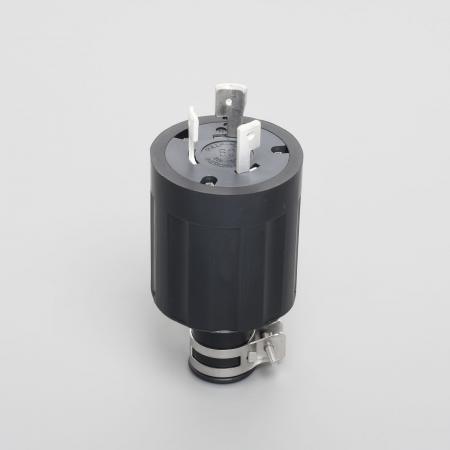

Plug (Rubber Housing)

Plug (Rubber Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 3-Wire 60A 250V

Plug (Rubber Housing)

  • Catalog No.

    3622R

  • Price(JPY YEN)

    ¥7,380

Twist Locking

  • Color

    Black

  • Wire Size

    2CT/VCT 14mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R14-6

  • Body Flammability

    UL94 V-0

  • Weight

    330.6g

  • Note

    Rubber Housing
    RoHS2 Compliant

Feauture

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances, and the housing is made of high grade chloroprene rubber excellent in weather resistance and durability.
Connectivity is "crimp terminal" tightening the terminal screw (double sems) on the side.
