2224N

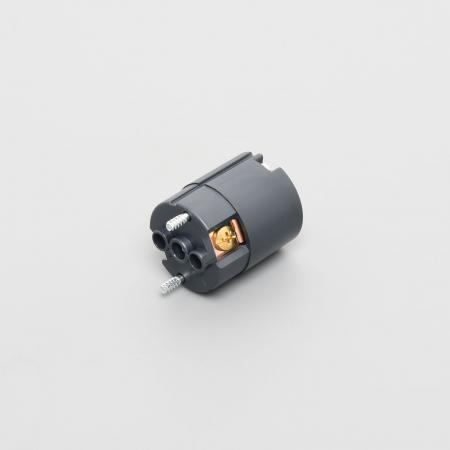

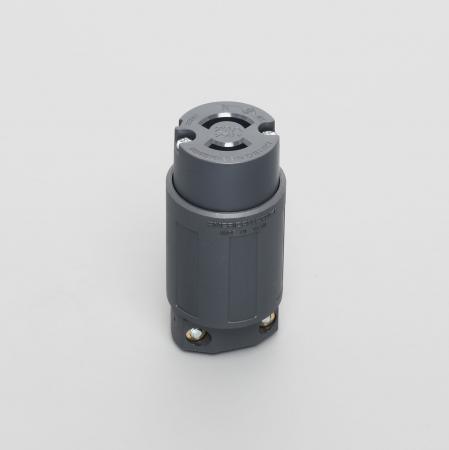

Connector Body (Nylon Housing)

Connector Body (Nylon Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 2-Wire 20A 250V

Connector Body (Nylon Housing)

  • Catalog No.

    2224N

  • Price(JPY YEN)

    ￥1,170

Twist Locking

  • Color

    Black

  • Wire Size

    2PNCT/VCT 3.5mm²、5.5mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R3.5-4、R5.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    65.4g

  • Note

    Nylon Housing
    RoHS2 Compliant

Feauture

Connector Body is the portable relay receptacle which is provided with means for attachment to a flexible cord and which is not intended for permanent mounting, and is used to connect to an inlet for receiving power and to supply power.
The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
