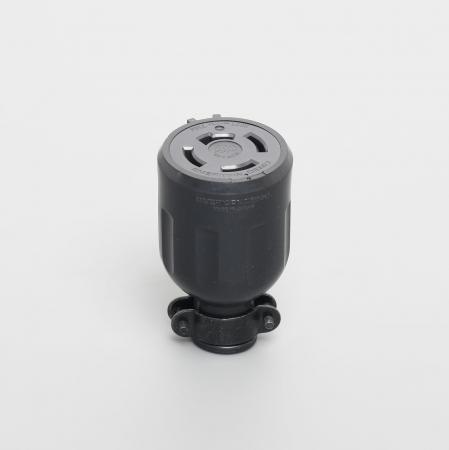

4224R

Connector Body (Rubber Housing)

Connector Body (Rubber Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 20A 250V

Connector Body (Rubber Housing)

  • Catalog No.

    4224R

  • Price(JPY YEN)

    ￥1,950

Twist Locking

  • Color

    Black

  • Wire Size

    2PNCT/VCT 3.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R3.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    138.8g

  • Note

    Rubber Housing
    RoHS2 Compliant

Feauture

Connector Body is the portable relay receptacle which is provided with means for attachment to a flexible cord and which is not intended for permanent mounting, and is used to connect to an inlet for receiving power and to supply power.
Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
