3113R

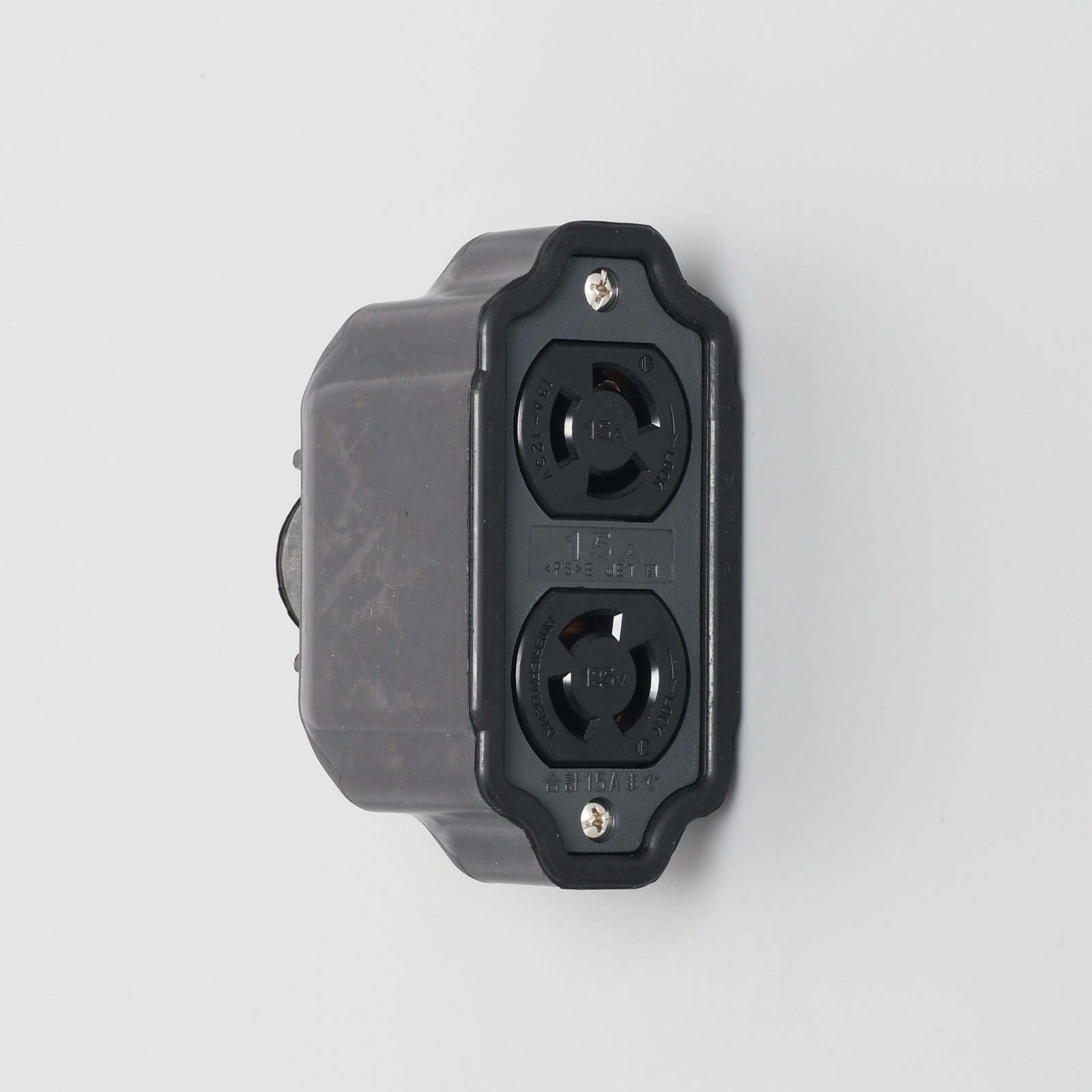

Double Connector Body

Double Connector Body

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 125V

Double Connector Body

  • Catalog No.

    3113R

  • Price(JPY YEN)

    ￥4,680

2 Twist Locking

  • Color

    Black

  • Wire Size

    2CT/VCT 2mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R2-4

  • Body Flammability

    UL94 V-0

  • Weight

    331.1g

  • Note

    Rubber Housing
    RoHS2 Compliant

Feauture

Duplex Connector Body is the portable double receptacle (total: 1500W) for terminal end, which is providing a series of electrical power all in one place.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances, and the housing is made of high grade chloroprene rubber excellent in weather resistance and durability.
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion hol
Electrical Appliance and Material Safety Law (PSE) compliant product.
