R104

Waterproof

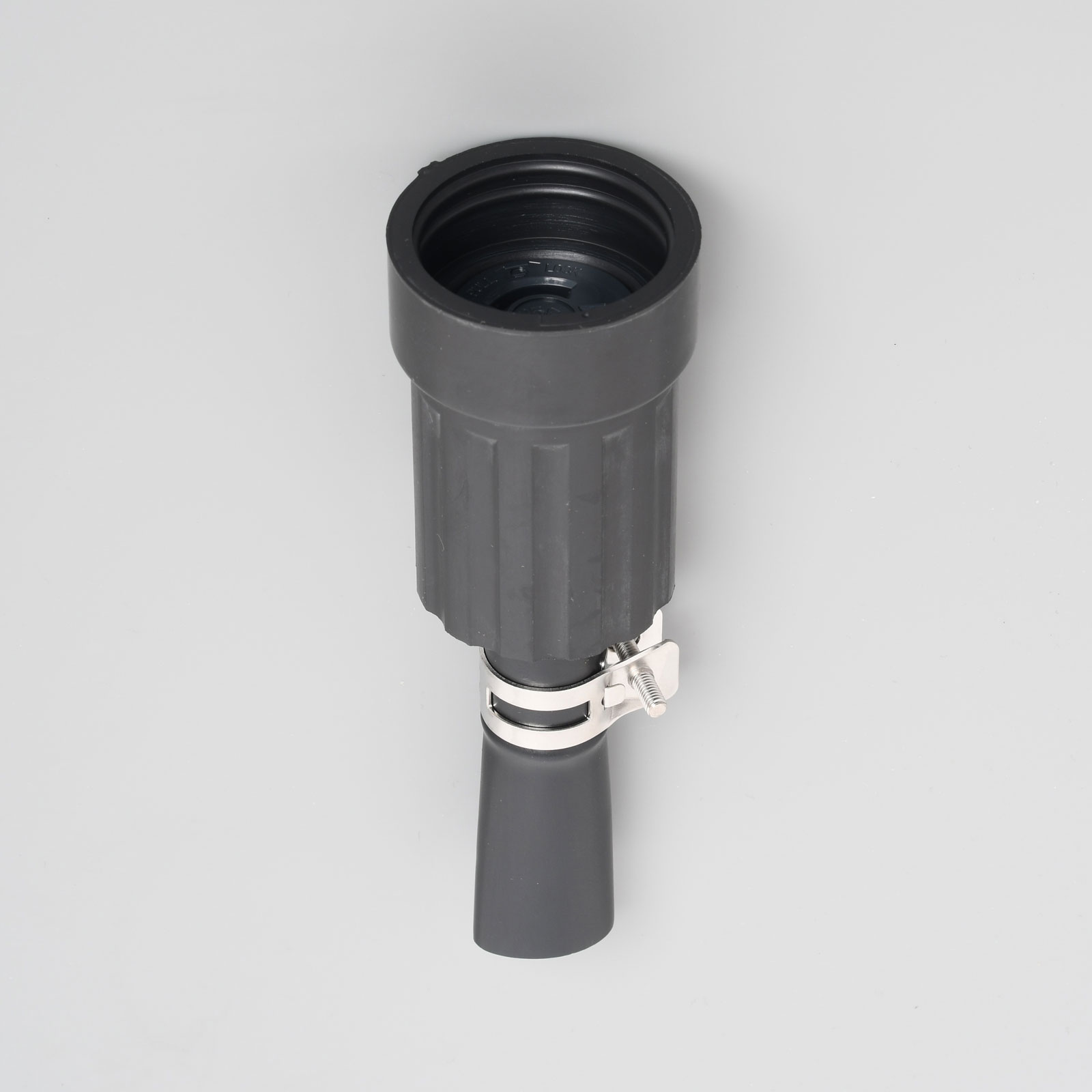

Waterproof Connector Body

Waterproof Connector Body

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 125V

Waterproof Connector Body

  • Catalog No.

    R104

  • Price(JPY YEN)

    ￥2,140

Twist Locking

  • Waterproof IP Rating

    IP65 Equivalent Product

  • Color

    Black

  • Wire Size

    2PNCT/VCT 2mm²、3.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R2-4、R3.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    145.34g

  • Note

    Rubber Housing
    RoHS2 Compliant

*The dust and waterproof performance (IP code) in the notation is in accordance with the test method of JIS C 0920. For details, please refer to "Product performance" at the bottom.

Feauture

Waterproof Connector Body is the portable relay receptacle, being waterproofed having performance of IP65 (International Protection Code) in use by combination of waterproof plug, which is provided with means for attachment to a flexible cord and which is not intended for permanent mounting..
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances, and the housing is made of high grade chloroprene rubber excellent in weather resistance and durability.
By combining with a waterproof plug (R102), it is possible to obtain dust proof and waterproof performance.

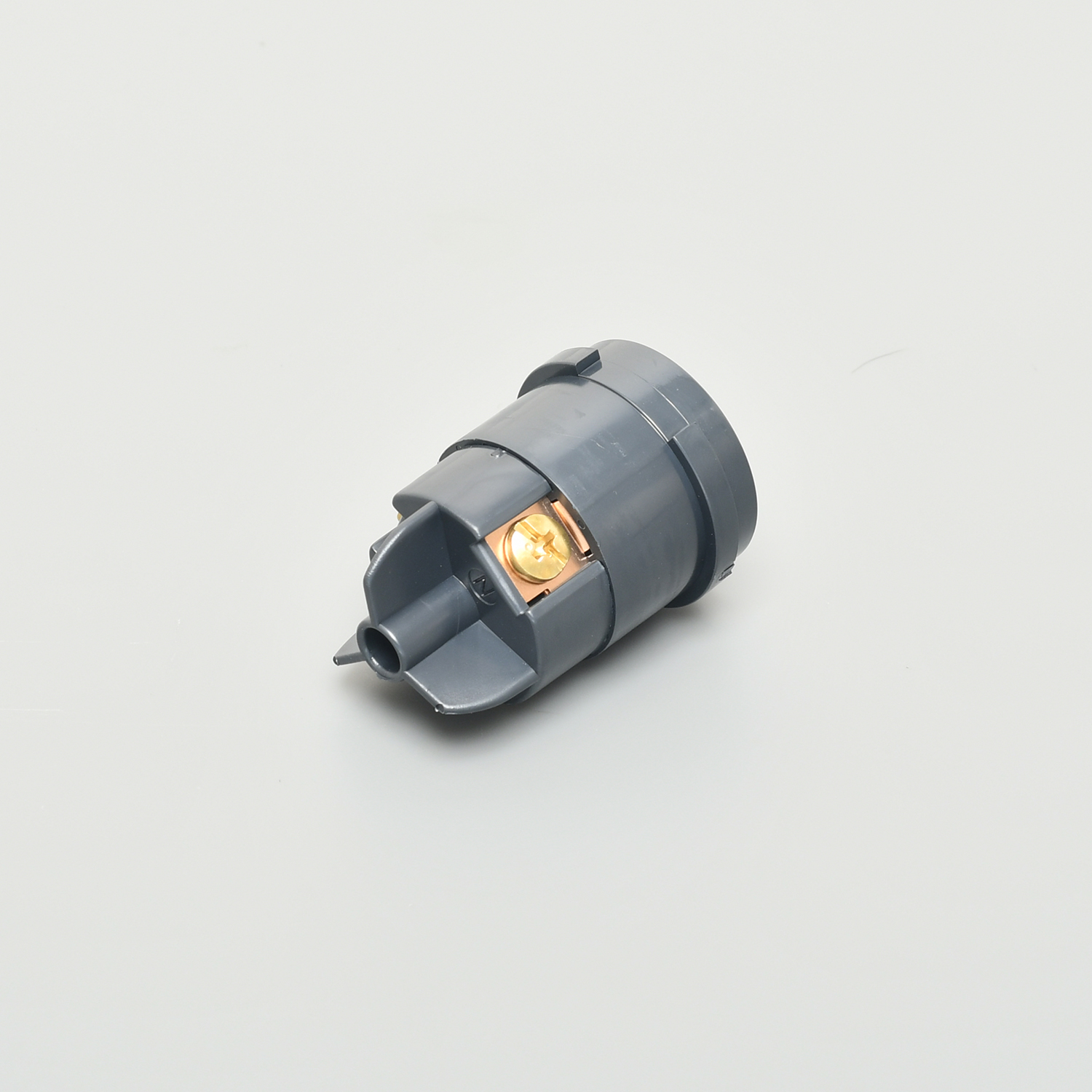

Connectivity is "crimp terminal" tightening the terminal screw on the side .By covering the cable entry with a insulation cover (heat shrinkable type), waterproof performance can be improved.
Electrical Appliance and Material Safety Law (PSE) compliant product.
