3214RW-L5

NEMA

Waterproof

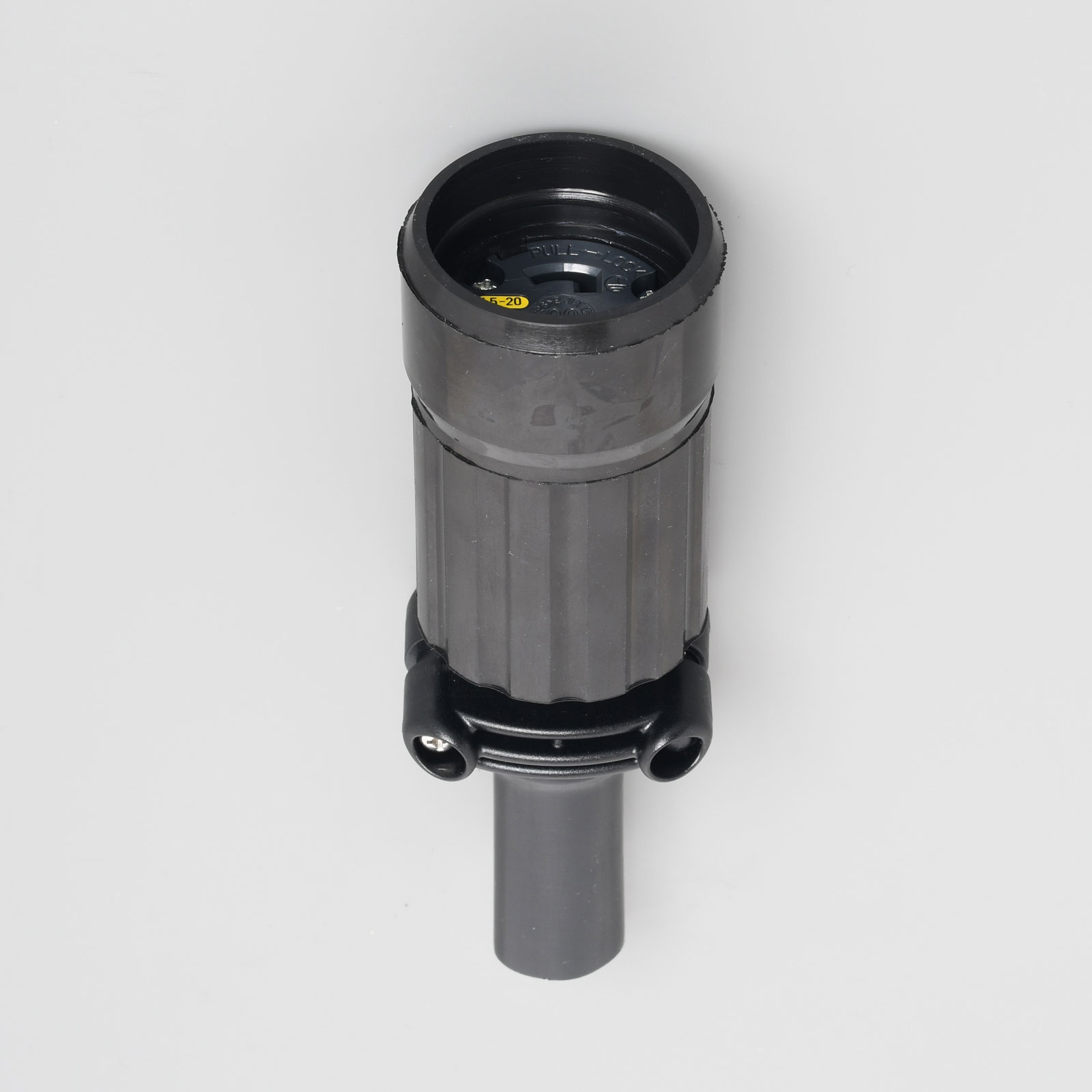

Waterproof Connector Body

Waterproof Connector Body

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 20A 125V (NEMA L5-20)

Waterproof Connector Body

  • Catalog No.

    3214RW-L5

  • Price(JPY YEN)

    ￥2,520

Twist Locking

  • NEMA Configuration No.

    NEMA L5-20

  • Waterproof IP Rating

    IP65 Equivalent Product

  • Color

    Black

  • Wire Size

    2CT/VCT 3.5mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R3.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    202.6g

  • Note

    Rubber Housing
    RoHS2 Compliant

*The dust and waterproof performance (IP code) in the notation is in accordance with the test method of JIS C 0920. For details, please refer to "Product performance" at the bottom.

Feauture

Waterproof Connector Body is the portable relay receptacle, being waterproofed having performance of IP65 (International Protection Code) in use by combination of waterproof plug, which is provided with means for attachment to a flexible cord and which is not intended for permanent mounting..
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances, and the housing is made of high grade chloroprene rubber excellent in weather resistance and durability.
By combining with a waterproof plug (3212RW-L5), it is possible to obtain dust proof and waterproof performance.
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes. By covering the cable entry with a insulation cover (heat shrinkable type), waterproof performance can be improved.
Electrical Appliance and Material Safety Law (PSE) compliant product.
