41062RW

Waterproof

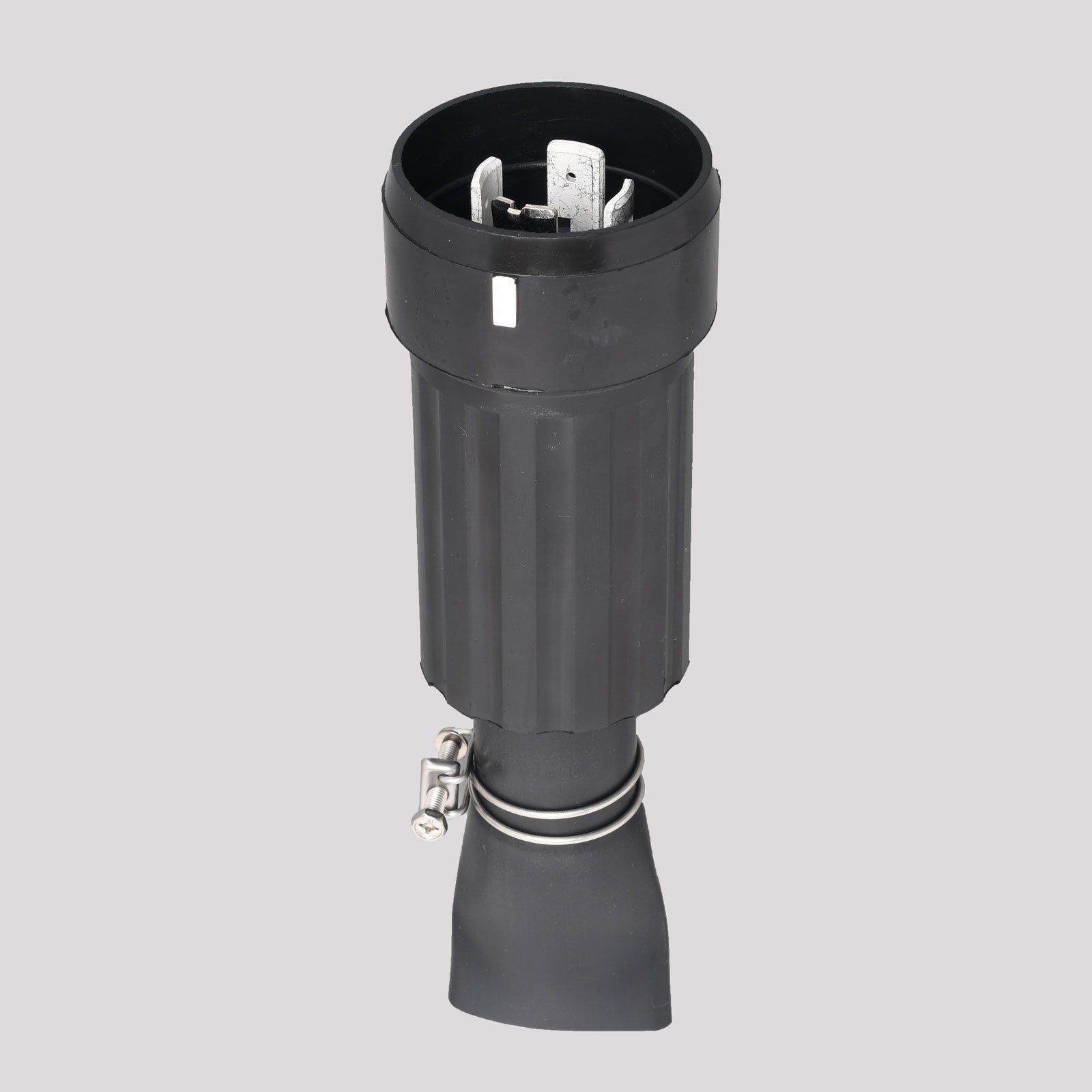

Waterproof Plug

Waterproof Plug

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 100A 600V

Waterproof Plug

  • Catalog No.

    41062RW

  • Price(JPY YEN)

    ￥27,760

Twist Locking

  • Waterproof IP Rating

    IP65 Equivalent Product

  • Color

    Black

  • Wire Size

    2CT 38mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    Z0301 (Included)

  • Body Flammability

    UL94 V-0

  • Weight

    1046.4g

  • Note

    Rubber Housing
    RoHS2 Compliant

*The dust and waterproof performance (IP code) in the notation is in accordance with the test method of JIS C 0920. For details, please refer to "Product performance" at the bottom.

Feauture

Waterproof Plug, having waterproof performance of IP65 (International Protection Code) is the device utilizing blades which, when inserted into a waterproof connector body, establishes connection between the conductors of the attached flexible cord and conductors connected to the waterproof connector body.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances, and the housing is made of high grade chloroprene rubber excellent in weather resistance and durability.
By combining with a waterproof connector body (41064RW), it is possible to obtain dust proof and waterproof performance.

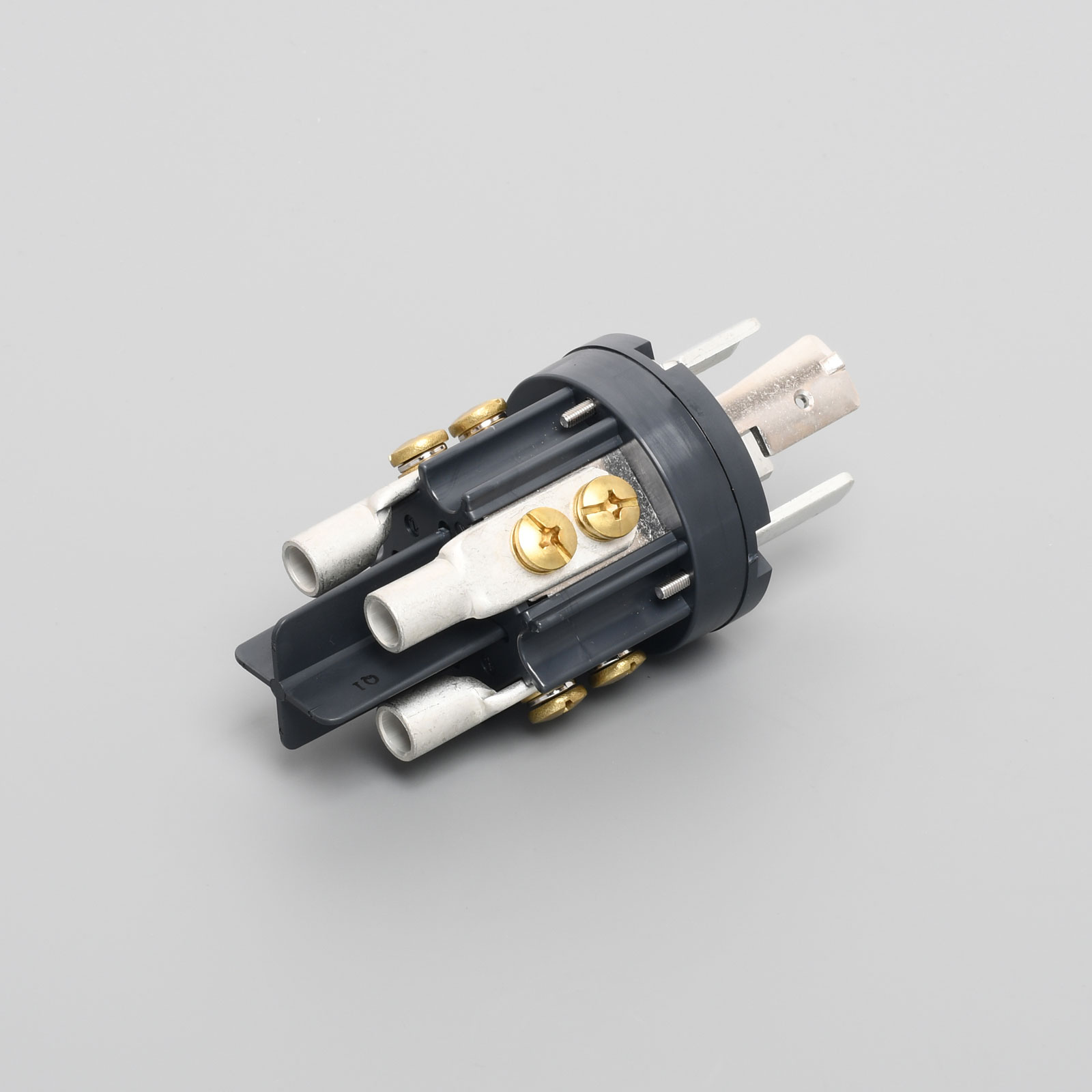

Connectivity is "crimp terminal" tightening the terminal screw (double sems) on the side.(3 pieces of RD type crimp terminals for 38 mm_ attached) By covering the cable entry with a insulation cover (heat shrinkable type), waterproof performance can be improved.
