4245N-L16

NEMA

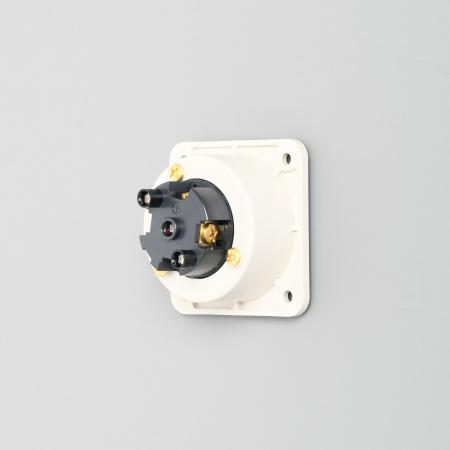

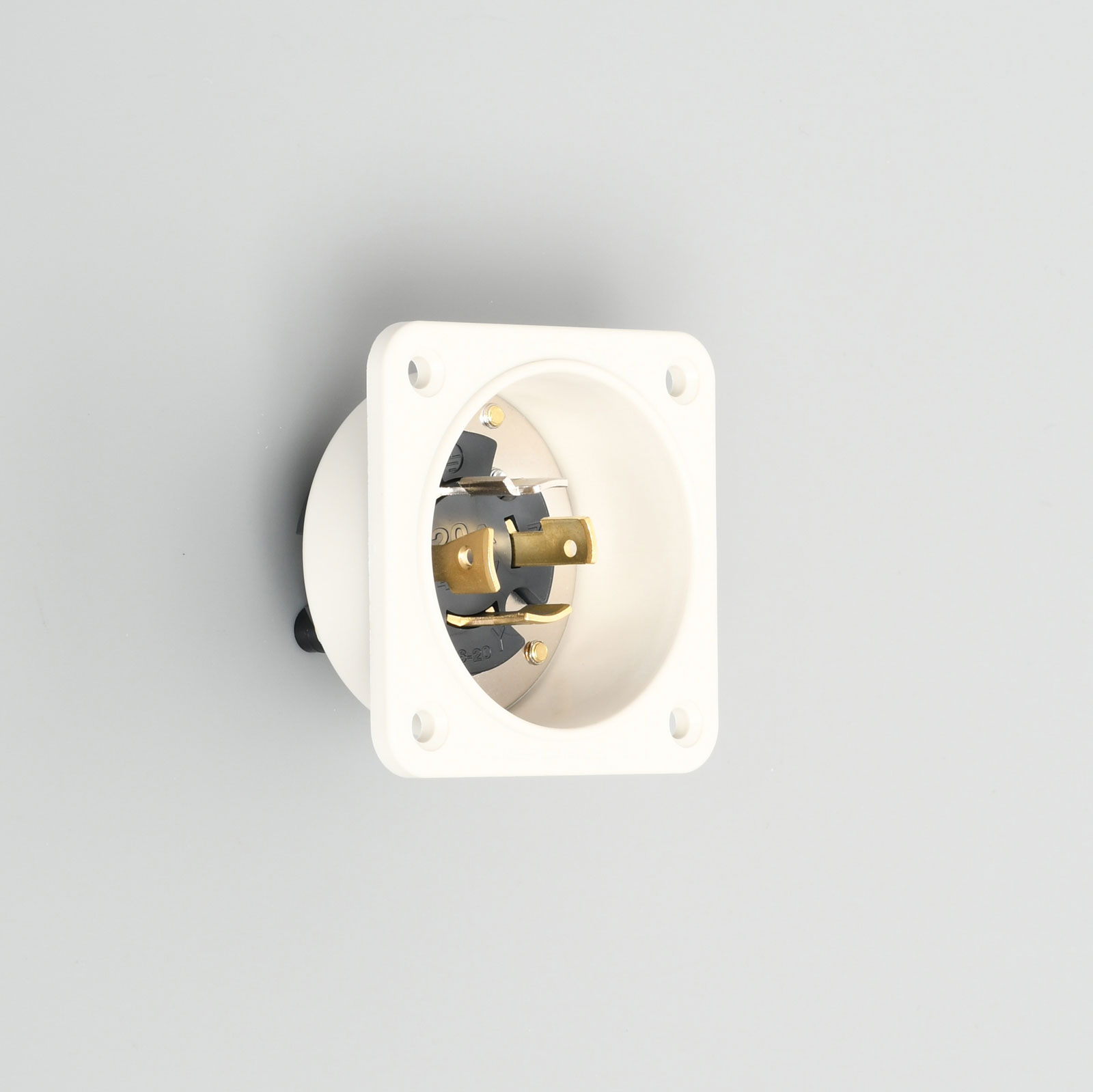

Flanged Inlet (Nylon Housing)

Flanged Inlet (Nylon Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 20A 480V (NEMA L16-20)

Flanged Inlet (Nylon Housing)

  • Catalog No.

    4245N-L16

  • Price(JPY YEN)

    ￥3,040

Twist Locking

  • NEMA Configuration No.

    NEMA L16-20

  • Color

    White

  • Wire Size

    2φ~2.6φ, 3.5mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R3.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    95.5g

  • Note

    Nylon Housing
    Build to Order
    RoHS2 Compliant

Feauture

Flanged Inlet is the device utilizing blades which is intended for flush mounting on an appliance or equipment and which is intended to establish electrical connection with an inserted connector body.
This device is primarily used for the power receiving ports such as portable blowers used in factories, electric food trolley in hospitals, showcases.
The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances. It is with a set of mounting screws and nuts, and with an insulating cover that can avoid exposure of the charging part.
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
