4325-L15

NEMA

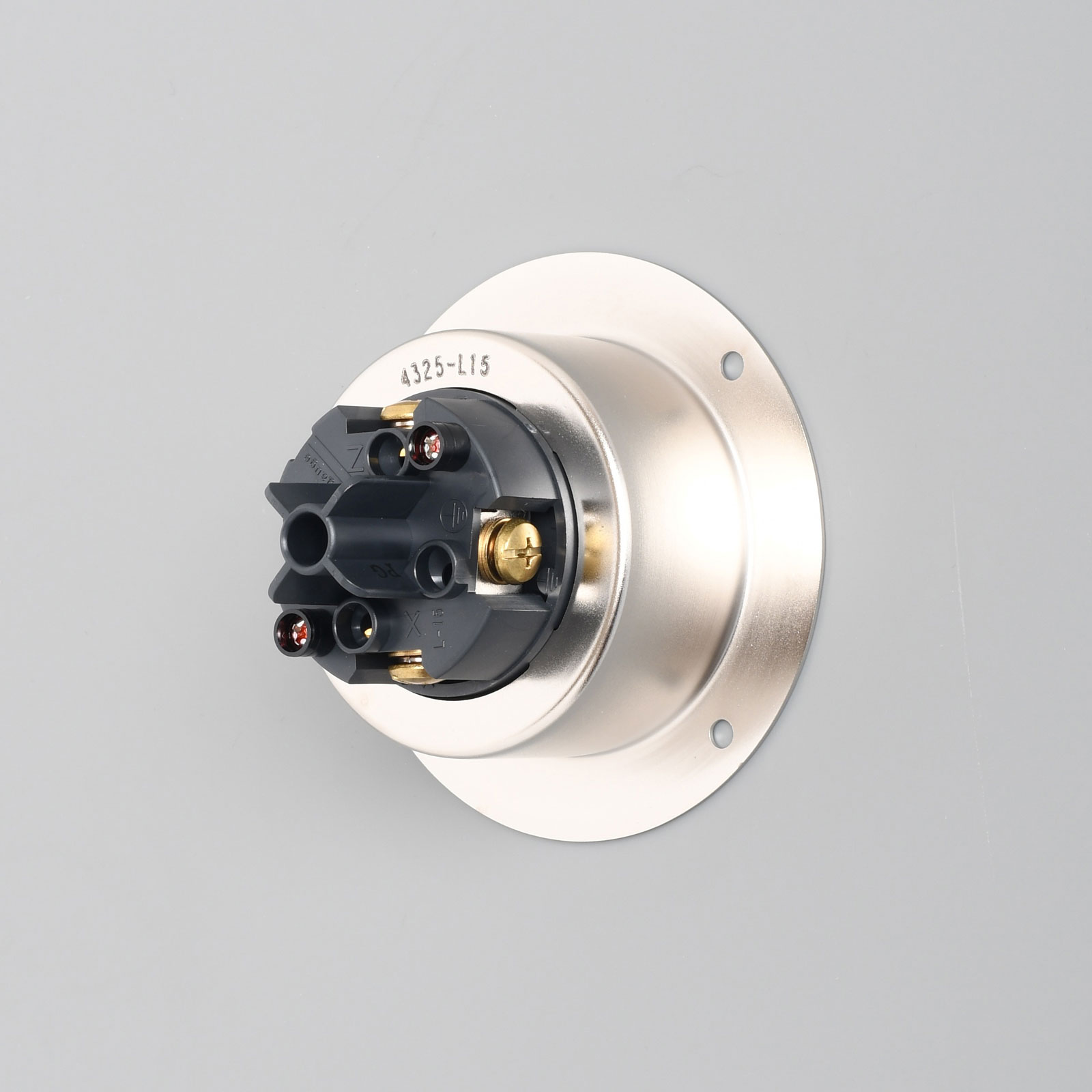

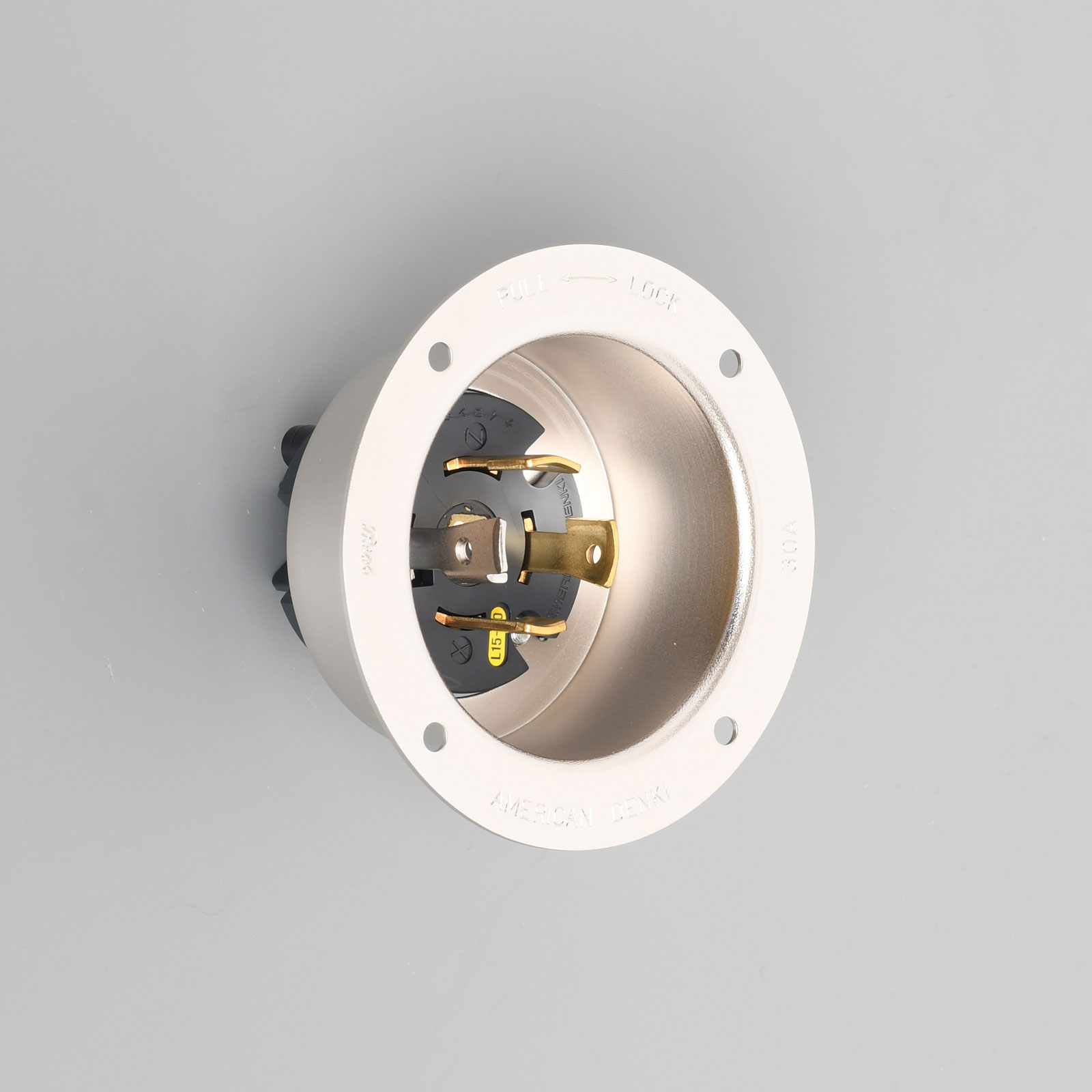

Flanged Inlet (Metal Housing)

Flanged Inlet (Metal Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 30A 250V (NEMA L15-30)

Flanged Inlet (Metal Housing)

  • Catalog No.

    4325-L15

  • Price(JPY YEN)

    ￥5,240

Twist Locking

  • NEMA Configuration No.

    NEMA L15-30

  • Color

    Silver

  • Wire Size

    2.6φ~3.2φ, 5.5mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R5.5-5

  • Body Flammability

    UL94 V-0

  • Weight

    156.0g

  • Note

    Metal Housing
    RoHS2 Compliant

Feauture

Flanged Inlet is the device utilizing blades which is intended for flush mounting on an appliance or equipment and which is intended to establish electrical connection with an inserted connector body.
This device is primarily used for the power receiving ports such as portable blowers used in factories, electric food trolley in hospitals, showcases.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances. Its brass housing is plated the nickel plating satin finish excellent in corrosion resistance.
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
