7115GNW

NEMA

Waterproof

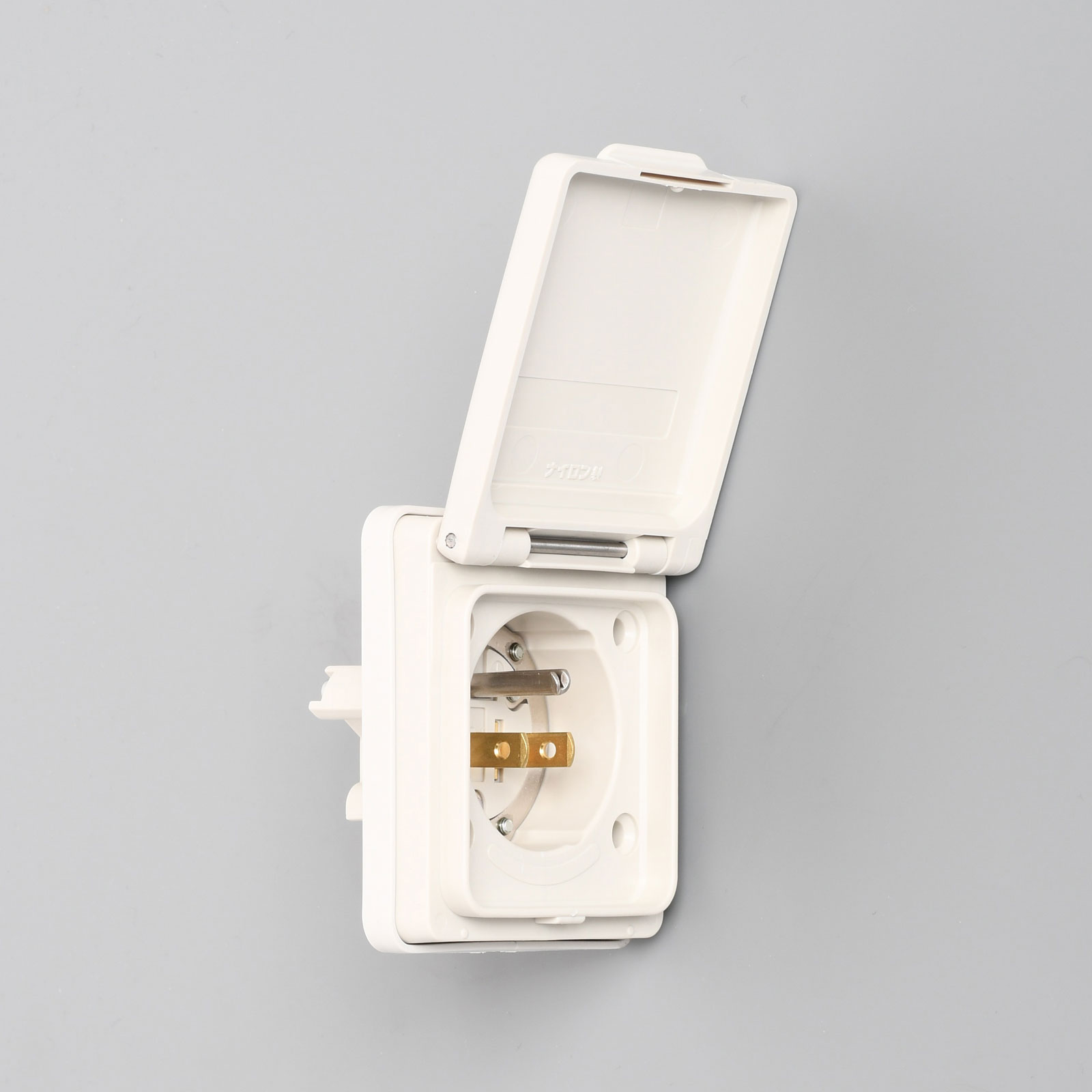

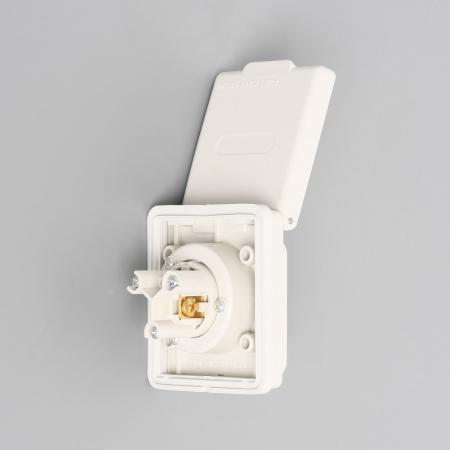

Waterproof Flanged Inlet

Waterproof Flanged Inlet

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 125V (NEMA 5-15)

Waterproof Flanged Inlet

  • Catalog No.

    7115GNW

  • Price(JPY YEN)

    ￥2,500

Straight Blade

  • NEMA Configuration No.

    NEMA 5-15

  • Waterproof IP Rating

    IP44 Conforming Product

  • Color

    White

  • Wire Size

    1.6φ~2φ, 2mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R2-4

  • Body Flammability

    UL94 V-0

  • Weight

    117.4g

  • Note

    RoHS2 Compliant

Feauture

Waterproof Flanged Inlet is the device utilizing blades which is intended for flush mounting on an appliance or equipment and which is intended to establish electrical And it can be stopped at the cover 80 ° and 160 ° position in use.
This device is primarily used for the power receiving ports such as golf cart charging and refrigeration car, storage battery, portable lighting.
The material of the main body and the housing, base flange are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
It is with a set of mounting screws and nuts, and with an insulating cover that can avoid exposure of the charging part.
Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
