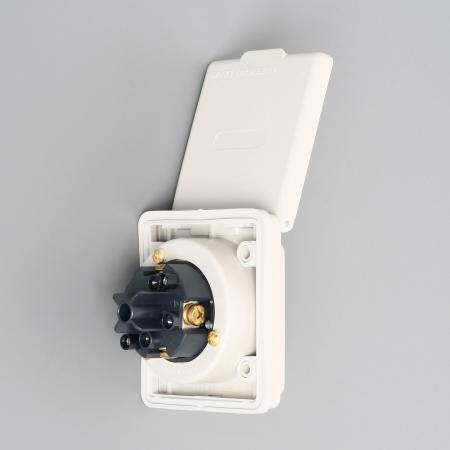

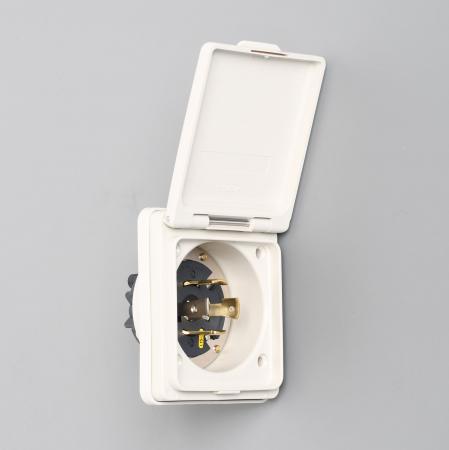

Waterproof Flanged Inlet

Waterproof Flanged Inlet

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 30A 250V (NEMA L15-30)

Waterproof Flanged Inlet

  • Catalog No.


  • Price(JPY YEN)


Twist Locking

  • NEMA Configuration No.

    NEMA L15-30

  • Waterproof IP Rating

    IP44 Conforming Product

  • Color


  • Wire Size

    2.6φ~3.2φ, 5.5mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal


  • Body Flammability

    UL94 V-0

  • Weight


  • Note

    RoHS2 Compliant


Waterproof Flanged Inlet is the device utilizing blades which is intended for flush mounting on an appliance or equipment and which is intended to establish electrical And it can be stopped at the cover 80 ° and 160 ° position in use.
This device is primarily used for the power receiving ports such as golf cart charging and refrigeration car, storage battery, portable lighting.
The material of the main body and the housing, base flange are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
It is with a set of mounting screws and nuts, and with an insulating cover that can avoid exposure of the charging part.
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
