3665RW

Waterproof

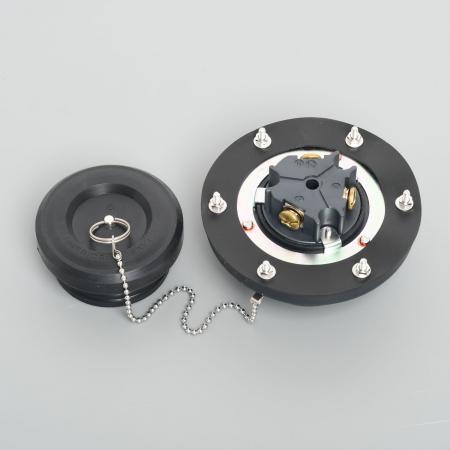

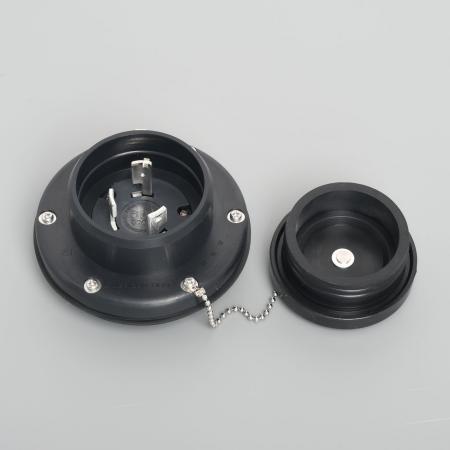

Waterproof Flanged Inlet

Waterproof Flanged Inlet

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 3-Wire 60A 600V

Waterproof Flanged Inlet

  • Catalog No.

    3665RW

  • Price(JPY YEN)

    ￥16,810

Twist Locking

  • Waterproof IP Rating

    IP65 Conforming Product

  • Color

    Black

  • Wire Size

    14mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R14-6

  • Body Flammability

    UL94 V-0

  • Weight

    574.3g

  • Note

    RoHS2 Compliant

*The dust and waterproof performance (IP code) in the notation is in accordance with the test method of JIS C 0920. For details, please refer to "Product performance" at the bottom.

Feauture

Waterproof Flanged Inlet is the device utilizing blades which is intended for flush mounting on an appliance or equipment and which is intended to establish electrical connection with an inserted connector body.
By combining with a waterproof connector body (3664RW), it is possible to obtain waterproof performance. It has waterproof performance of IP65 (International Protection Code) when using and not in use (by the included waterproof rubber cover fully closed).
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.High-grade chloroprene rubber excellent in weather resistance and durability is adopted as the material of the base flange part.
Connectivity is "crimp terminal" tightening the terminal screw (double sems) on the side.
