KC1130HNF

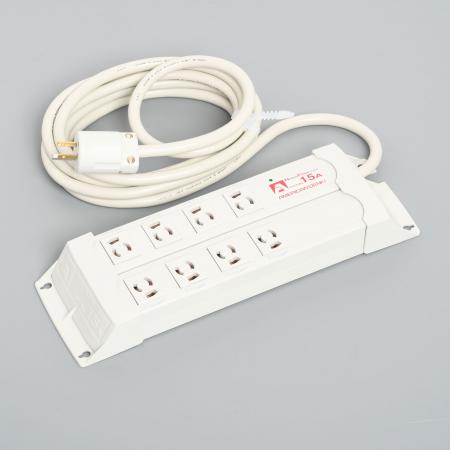

Para Tap:Horizontal Power Strip, 8 Clamp Locking Outlet with 3m Cord and Straight blade Plug, Noise Filter

Para Tap:Horizontal Power Strip, 8 Clamp Locking Outlet with 3m Cord and Straight blade Plug, Noise Filter

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 125V

Para Tap:Horizontal Power Strip, 8 Clamp Locking Outlet with 3m Cord and Straight blade Plug, Noise Filter

  • Catalog No.

    KC1130HNF

  • Price(JPY YEN)

    ¥19,350

8 Clamp Locking

  • Color

    White

  • Body Flammability

    UL94 V-0

  • Weight

    1357g

  • Note

    with Noise Filter
    RoHS2 Compliant

Feauture

It is 8 outlet OA tap of space-saving type rated at 2P, 3W GND 15A 125V that is arranged in parallel rather than arranged in series against a large number of outlets. Its cases and built-in receptacle are made of nylon (flame retardancy UL94 V-0). On the back side, it is possible to install 6 optional magnets (Z0353) sold separately.
The cable of the cord set is a soft VCT cable of vinyl cabtire cable which is high allowable current, excellent heat resistance and flexibility.
A noise filter equipped with a large amount of lightning surge absorption element (varistor) attenuates two types of noise (normal mode / common mode).
Electrical Appliance and Material Safety Law (PSE) compliant product.
