KU1030JT

Discontinued

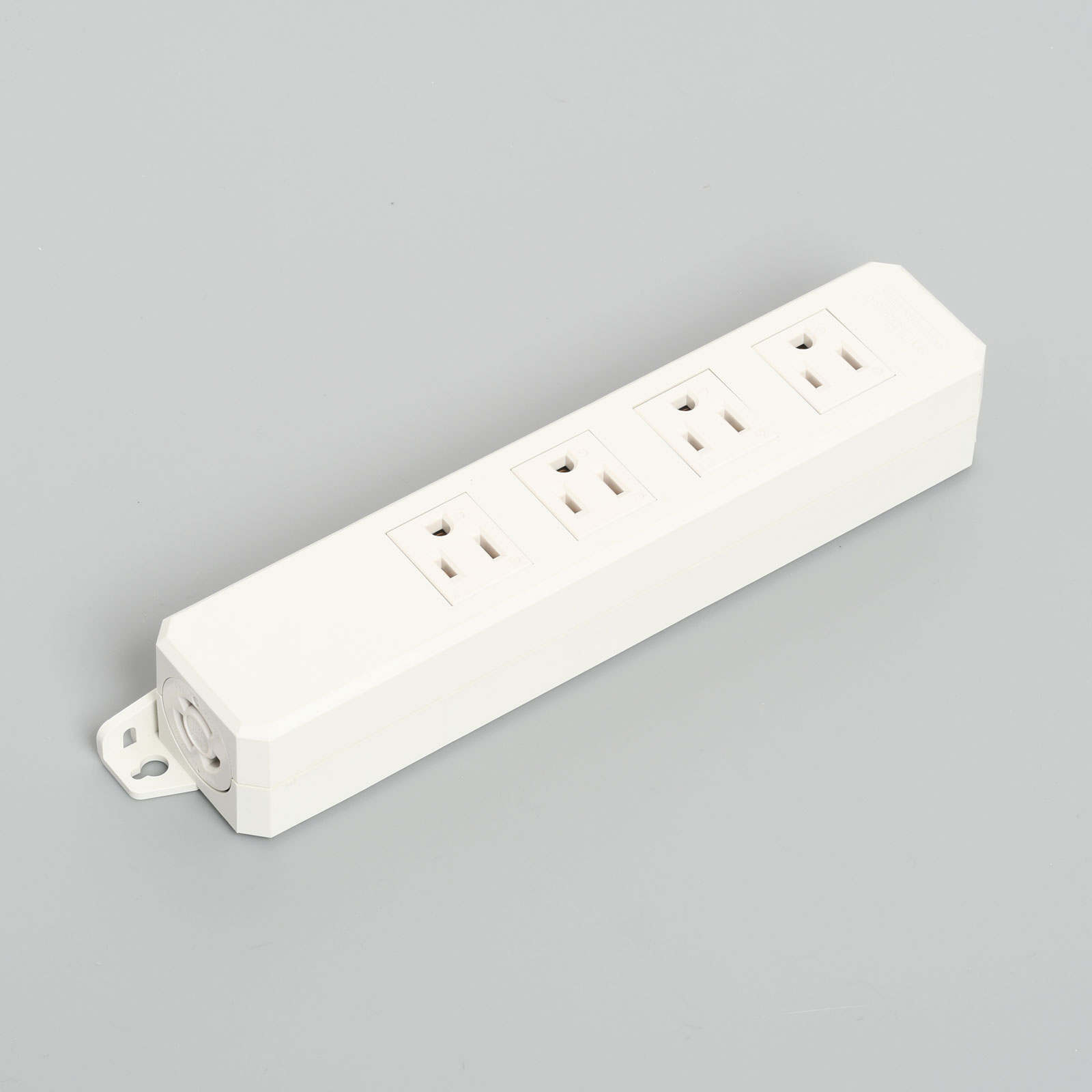

Jointing Power Strip, 4 Straight blade Outlet

Jointing Power Strip, 4 Straight blade Outlet

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 125V

Jointing Power Strip, 4 Straight blade Outlet

  • Catalog No.

    KU1030JT

  • Price(JPY YEN)

    ￥0

  • Discontinued Date

    February 20th, 2025

  • Alternative Product

4 Straight Blade
1 Twist Locking

  • Color

    White

  • Wire Size

    VCT 2mm², 3.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R2-4, R3.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    349g

  • Note

    Discontinued on February 20th, 2025
    RoHS2 Compliant

Feauture

It is an OA tap with a twist locking outlet for connection that can be easily changed or expanded even after laying out the power supply environment. Its cases and built-in receptacle are made of nylon (flame retardancy UL94 V-0). It has 4 outlets and it can be used up to a total of 15A with the rated at 2P, 3W GND 15A.

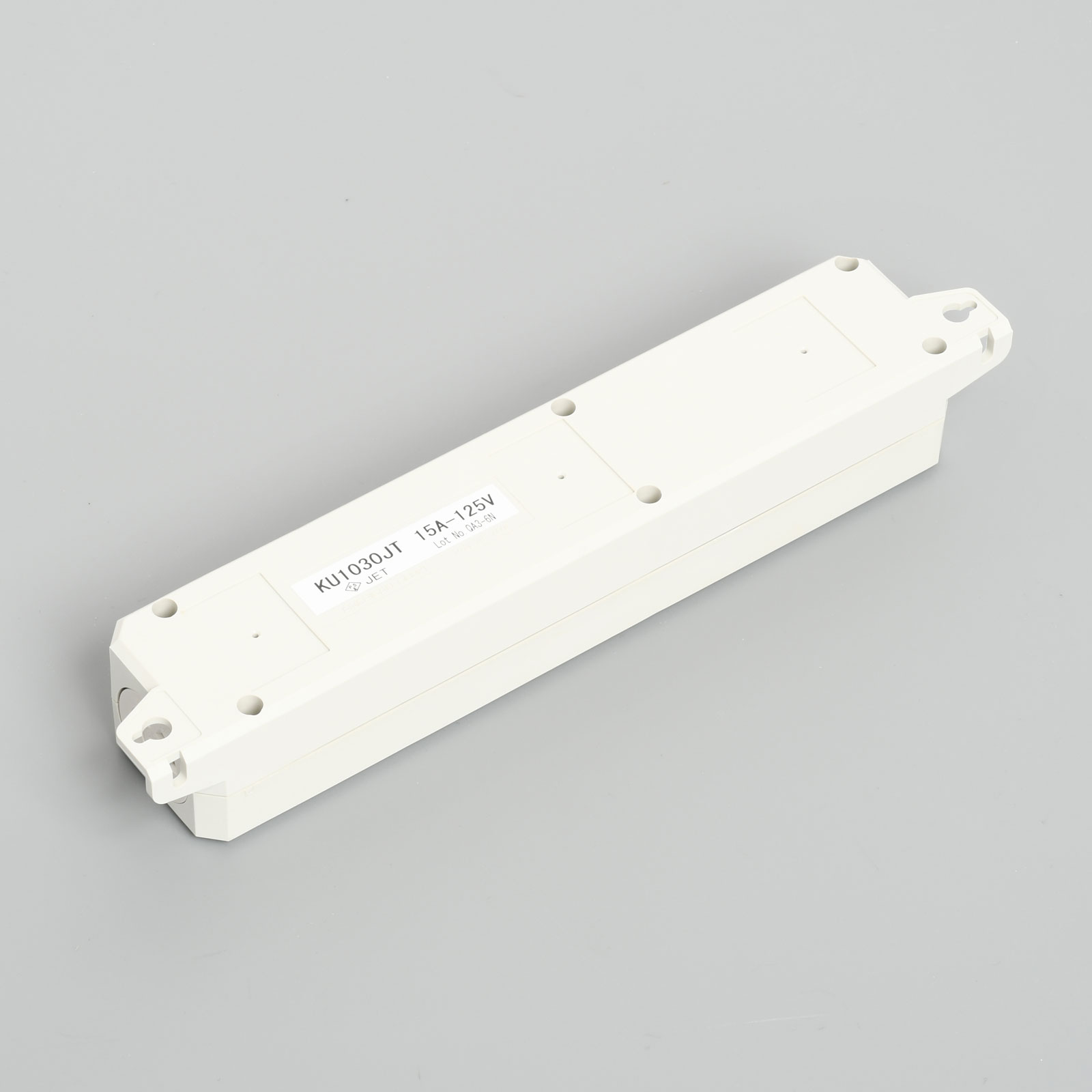

It corresponds to various wires such as cabtire cable 1.25 to 3.5 and VVF 1.6 to 2.0 mm. On the back side, it is possible to install 3 optional magnets (Z0206) sold separately.
Electrical Appliance and Material Safety Law (PSE) compliant product.
