AU1010

Access Tap, 4 Twist Locking Outlet

Access Tap, 4 Twist Locking Outlet

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 125V

Access Tap, 4 Twist Locking Outlet

  • Catalog No.

    AU1010

  • Price(JPY YEN)

    ￥9,920

4 Twist Locking

  • Color

    White

  • Wire Size

    1.6φ~2.6φ, VCT 2mm², 3.5mm², 5.5mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R2-5, R3.5-5, R5.5-5

  • Body Flammability

    UL94 V-0

  • Weight

    471g

  • Note

    RoHS2 Compliant

Feauture

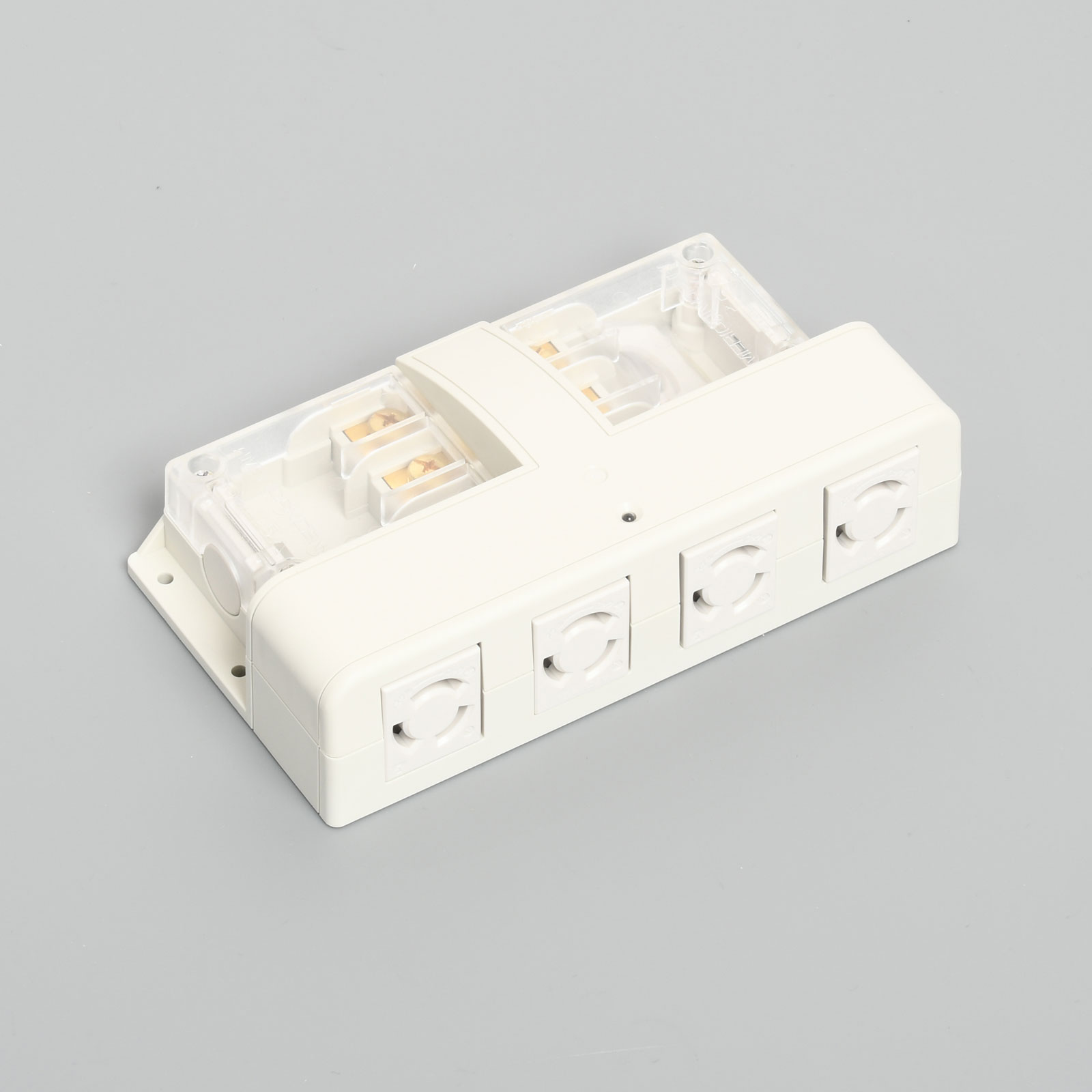

It is 4 outlets OA tap which is providing a series of electrical power all in one place, having nylon cases and built-in receptacle (flame retardancy UL94 V-0) and double terminals for through wiring, accepts a wide range of VCT 1.25~5.5 or VVF 1.6~2.6mm.
It is best use for the environments that require reliable connections such as access floor as well as on the desk and floor.

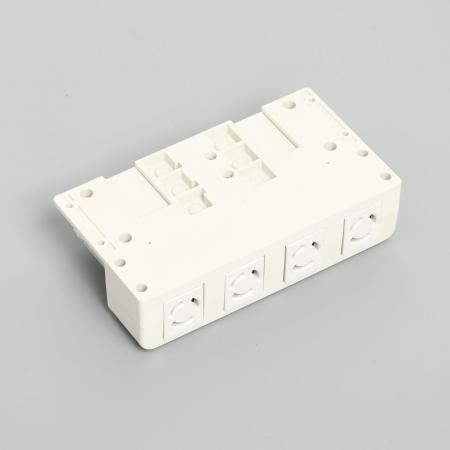

On the back side, it is possible to install 2 optional magnets (Z0353) sold separately.
Electrical Appliance and Material Safety Law (PSE) compliant product.
