3243NT-L8

NEMA

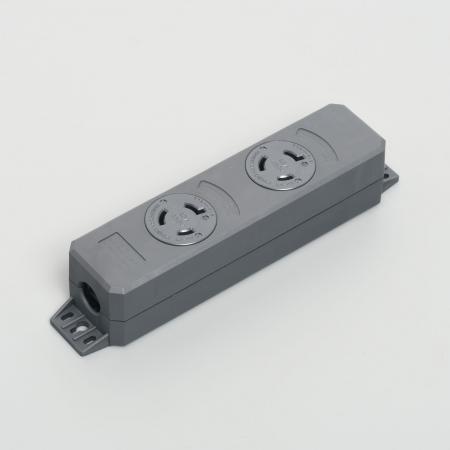

Double Tap (20A Power Strip)

Double Tap (20A Power Strip)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 20A 480V (NEMA L8-20)

Double Tap (20A Power Strip)

  • Catalog No.

    3243NT-L8

  • Price(JPY YEN)

    ￥5,890

2 Twist Locking

  • NEMA Configuration No.

    NEMA L8-20

  • Color

    Black

  • Wire Size

    2CT/VCT 3.5mm², 5.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R3.5-4, R5.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    336.5g

  • Note

    RoHS2 Compliant

Feauture

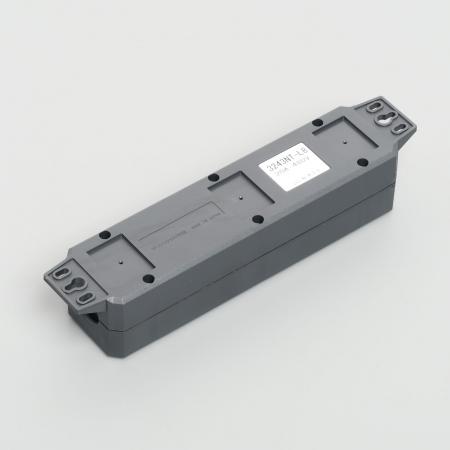

Double tap 20A is the high-spec portable multiple receptacle, which is providing a series of electrical power all in one place, having nylon cases (flame retardancy UL94 V-0) and double terminals for through wiring, accepts a wide range of VCT cable sized 3.5~5.5. It has 2 outlets and it can be used up to a total of 20A. It corresponds to wire conductor size increase for reducing current-carrying loss. On the back side, it is possible to install 3 optional magnets (Z0206) sold separately.
It is best use for temporary power supply at 20A machine equipment, peripherals, servers, and exhibition halls.
