3-Pole 4-Wire Grounding 30A 250V

Double Tap

  • Catalog No.


  • Price(JPY YEN)


2 Twist Locking

  • Color


  • Wire Size

    2CT/VCT 5.5mm², 8mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R5.5-5, R8-5

  • Body Flammability

    UL94 V-0

  • Weight


  • Note

    RoHS2 Compliant

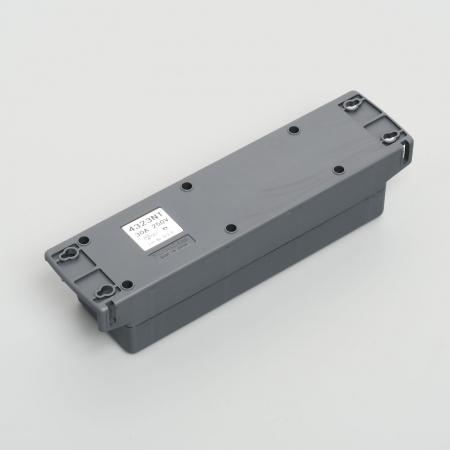

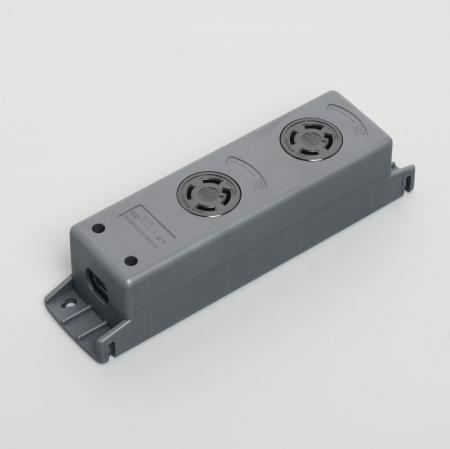

It is an OA tap type twist locking 30A duplex receptacle that can be used fixedly, accepts a wide range of VCT cable sized 5.5~8. It has 2 outlets and it can be used up to a total of 30A. It corresponds to wire conductor size increase for reducing current-carrying loss.
The wiring workability is improved by aligning the terminal screws of the built-in receptacle for connecting the crimp terminal all to the same side.
It can be used in machinery facilities and peripheral equipment of 30 A specifications, and further, power supply installation such as UPS and PDU.
