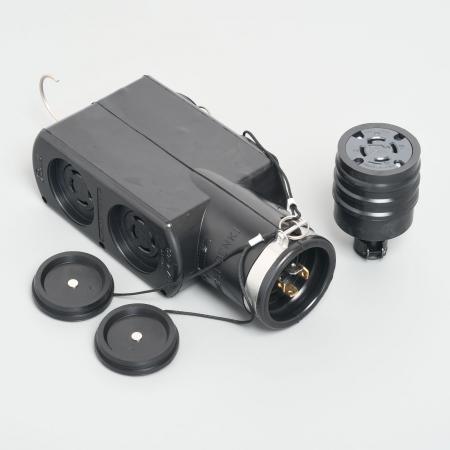

PRZ-4-160

Portable Dividing Box

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 20A 250V

Portable Dividing Box

  • Catalog No.

    PRZ-4-160

  • Price(JPY YEN)

    ￥44,050

4 Twist Locking

  • Color

    Black

  • Wire Size

    2CT/VCT 5.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R5.5-5

  • Note

    with Input Connector Body
    Scheduled to be discontinued on January 20, 2027
    RoHS2 Compliant

Feauture

It is a rubber housing type portable dividing box with a hook for hanging, with a structure that can respond to additional power supply and relocation in the field. By connecting the dedicated connector body to the inlet of the lower part of the main body, the electrical power is supplied to the 20A outlets of 4 places at the top of the main body. The outlet is made of thermosetting resin excellent in durable and insulation properties. A blank cover that prevents dust from entering is attached.
Electrical Appliance and Material Safety Law (PSE) compliant product.
