BZ-3

Dividing Box

Dividing Box

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 20A 250V

Dividing Box

  • Catalog No.

    BZ-3

  • Price(JPY YEN)

    ￥52,710

3 Twist Locking

  • Color

    Black

  • Wire Size

    2CT 3.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R3.5-4

  • Note

    RoHS2 Compliant

Feauture

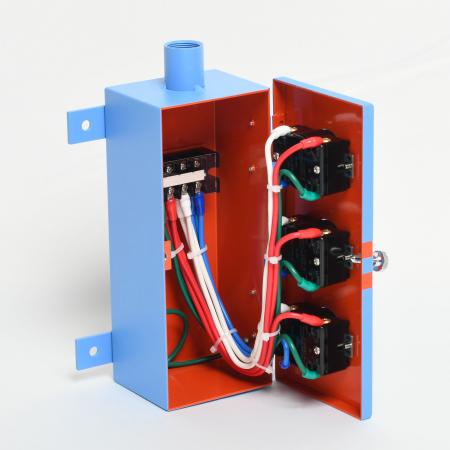

It is a 20A rated portable dividing box of a strong metallic shell with a structure that can respond to additional power supply and relocation in the field. Three load devices (total 20A) can be connected at the same time from the three outlets on the surface. Power supply is performed by connecting to the internal terminal block (screw terminal type) through the conduit tube (for thin steel conduit tube C25) on the top side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
