HKC0530

NEMA

1U Rack Mount PDU, Input 15A/Output 15A Clamp Locking

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 125V

1U Rack Mount PDU, Input 15A/Output 15A Clamp Locking

  • Catalog No.

    HKC0530

  • Price(JPY YEN)

    ￥30,930

10 Clamp Locking

  • NEMA Configuration No.

    Input: NEMA 5-15

  • Color

    White

  • Note

    Input Plug: NEMA 5-15
    VCT2mm²×3M
    RoHS2 Compliant

*This product is for equipment (Products to be mounted on equipment). Please do not use it for other uses.

Feauture

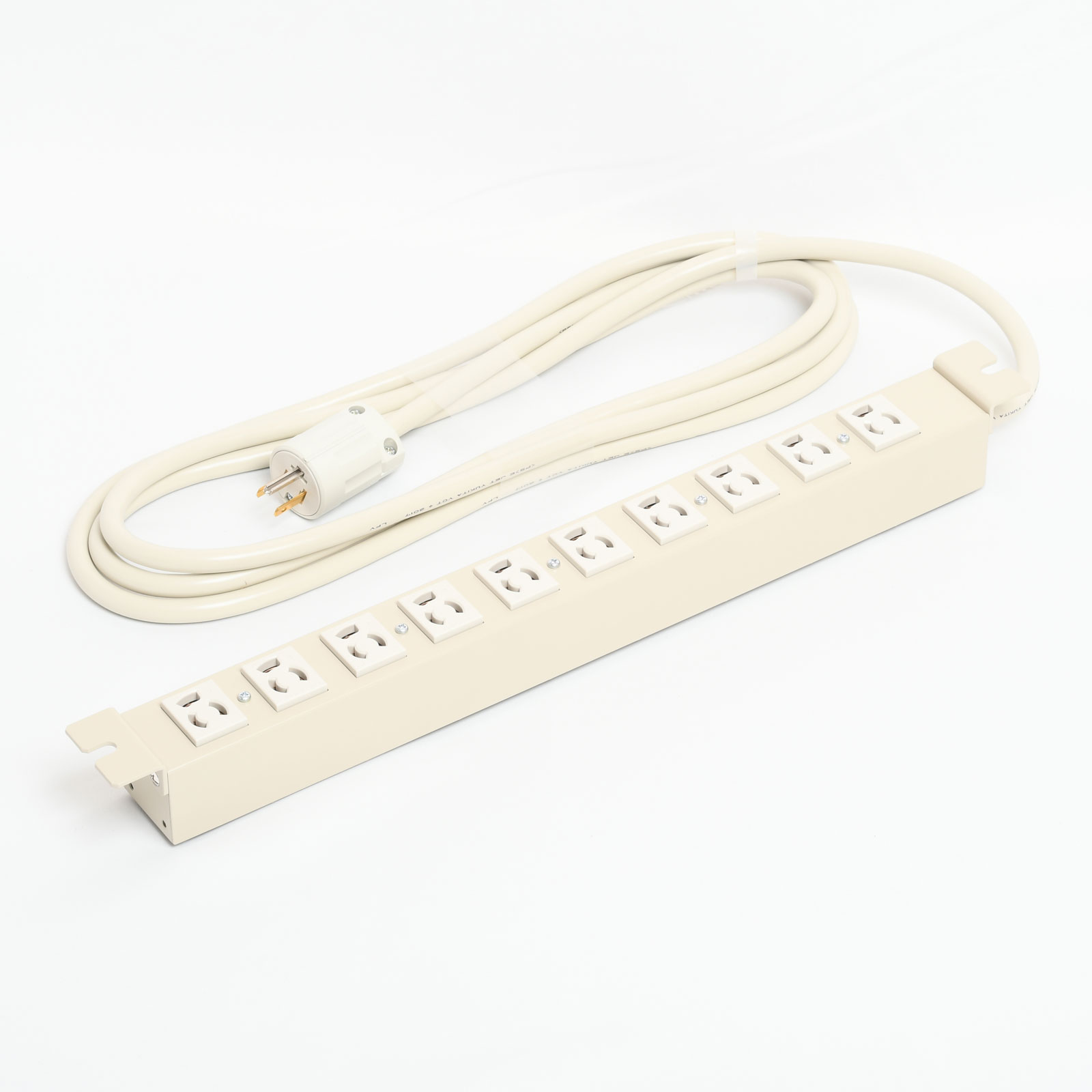

It is a rack mount power distribution unit with 10 clamp locking 15A outlets and an input plug of NEMA 5-15 (2P, 3W GND 15A 125V), that can be attached to a 19-inch rack 1U size. The attached bracket can be mounted with 4 patterns on both sides of the main body. The body is made of sturdy steel plate. There is a bracket sold separately that can place the chassis inside 40mm of the rack.
Electrical Appliance and Material Safety Law (PSE) compliant product.
