HKC2910PT

NEMA

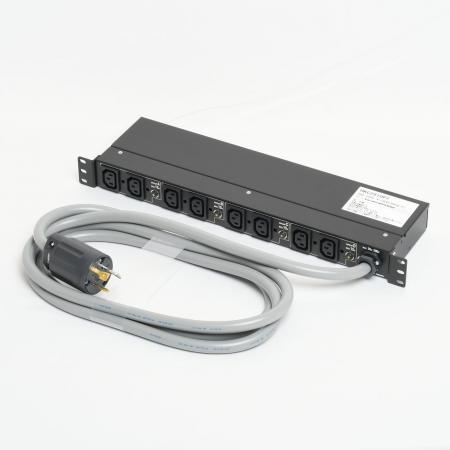

1U Rack Mount PDU, Input 30A/Output IEC C13

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 30A 250V (NEMA L6-30)

1U Rack Mount PDU, Input 30A/Output IEC C13

  • Catalog No.

    HKC2910PT

  • Price(JPY YEN)

    ￥60,050

IEC C13×8

  • NEMA Configuration No.

    Input: NEMA L6-30

  • Color

    Black

  • Weight

    3320g

  • Note

    Input Plug: NEMA L6-30
    VCT5.5mm²×3M
    with 15A Circuit Protector
    RoHS2 Compliant

*This product is for equipment (Products to be mounted on equipment). Please do not use it for other uses.

Feauture

It is a rack mount power distribution unit with 8 IEC C13 outlets and an input plug of NEMA L6-30 (2P, 3W GND 30A 250V), that can be attached to a 19-inch rack 1U size. Each outlet has a 15A circuit protector. Since the attached bracket can attach 5 patterns on both sides of the main body, it supports various power supply environments such as horizontal / vertical / rear / side mounting direction of the rack. The body is made of sturdy steel plate. Group display and number display are printed so that power management can be easily done. There is a bracket sold separately that can place the chassis inside 40mm of the rack.
Electrical Appliance and Material Safety Law (PSE) compliant product.
