HA9242VS

Discontinued

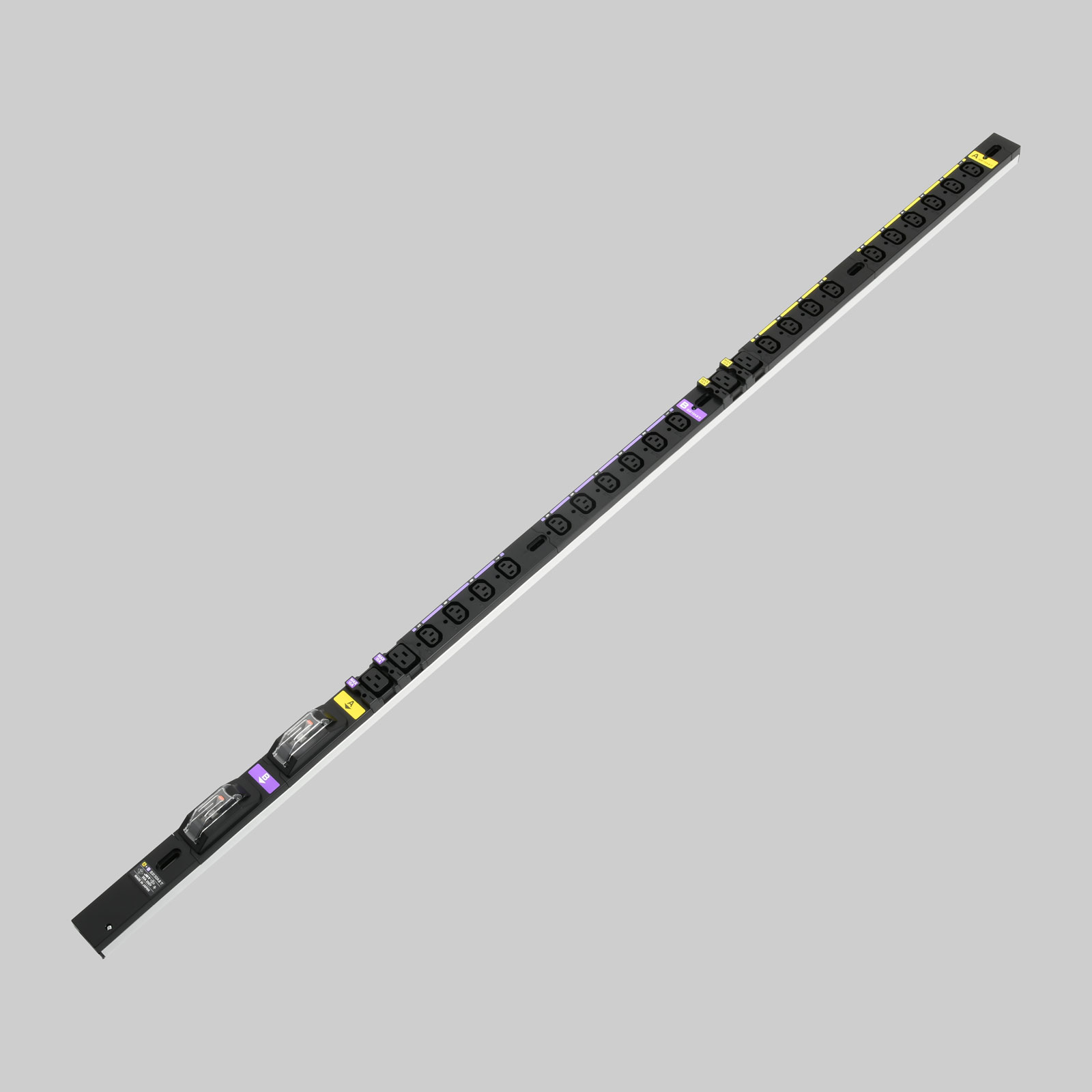

0U Rack Mount PDU, Input 30A/Output IEC C-13 + IEC C-19

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 30A250V

0U Rack Mount PDU, Input 30A/Output IEC C-13 + IEC C-19

  • Catalog No.

    HA9242VS

  • Price(JPY YEN)

    ￥0

  • Discontinued Date

  • Alternative Product

IEC C-13×20
IEC C-19×4

  • Color

    Black

  • Wire Size

    VCT 5.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R5.5-5

  • Weight

    1730g

  • Note

    Slim Type
    with 15A Overcurrent Circuit breaker×2
    Build to Order
    RoHS2 Compliant

*This product is for equipment (Products to be mounted on equipment). Please do not use it for other uses.

Feauture

It is a 30A input rack mount power distribution unit with 20 IEC C-13 and 4 IEC C-19 outlet that can be attached in the vertical direction of 19 inch rack.. This product has two power supply circuits in one unit, and a 20A safety breaker with a code protection function that immediately detects and cuts off current when an overcurrent due to overload or short circuit occurs is carried on each circuit. By eliminating the slide-rail and mounting brackets, it becomes slim type specification contributed to space saving. In order to make power management easier, group notation is given on the surface by alphabet for each circuit. In addition, numeric notation by the number is given to each outlet. There is a mounting hole for the cord clamp (sold separately) to fix the plug which prevents falling off when using the IEC C-14 or C-20 plug at all outlets.
Electrical Appliance and Material Safety Law (PSE) compliant product.
