HAC7121S-BL

Discontinued

NEMA

0U Rack Mount PDU, Input 30A/Output 15A Clamp Locking, Blue Color

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 30A 125V

0U Rack Mount PDU, Input 30A/Output 15A Clamp Locking, Blue Color

  • Catalog No.

    HAC7121S-BL

  • Price(JPY YEN)

    ¥57,300

  • Discontinued Date

  • Alternative Product

12 Clamp Locking

  • NEMA Configuration No.

    Input: NEMA L5-30

  • Color

    Blue

  • Note

    Slim Type
    with 15A Overcurrent Circuit breaker×2
    Input Plug: NEMA L5-30
    VCT5.5mm²×3M
    Build to Order
    RoHS2 Compliant

*This product is for equipment (Products to be mounted on equipment). Please do not use it for other uses.

Feauture

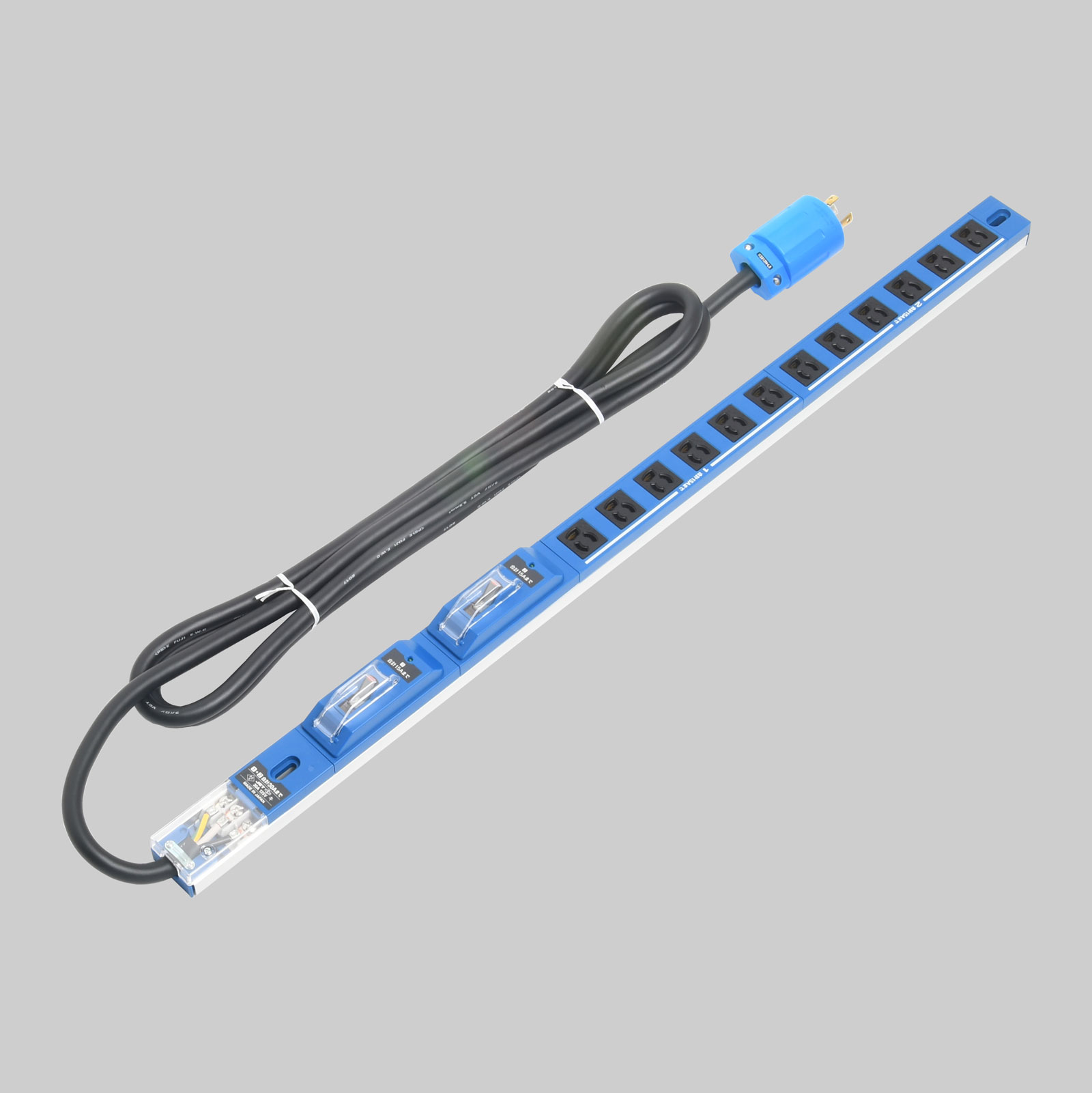

It is a blue rack mount power distribution unit with 12 clamp locking outlets and an input plug of NEMA L5-30 (2P, 3W GND 30A 125V), that can be attached in the vertical direction of 19 inch rack.
By making the attached plugs the same color, it is possible to identify the power line more easily. This product has two power supply circuits in one unit, and a 15A safety breaker with a code protection function that immediately detects and cuts off current when an overcurrent due to overload or short circuit occurs is carried on each circuit. By eliminating the slide-rail and mounting brackets, it becomes slim type specification contributed to space saving.
Electrical Appliance and Material Safety Law (PSE) compliant product.
