HAC9060S-RD

Discontinued

NEMA

0U Rack Mount PDU, Input 20A/Output 15A Clamp Locking, Red Color

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 20A 250V

0U Rack Mount PDU, Input 20A/Output 15A Clamp Locking, Red Color

  • Catalog No.

    HAC9060S-RD

  • Price(JPY YEN)

    ￥34,580

  • Discontinued Date

  • Alternative Product

IEC C-13×6

  • NEMA Configuration No.

    Input: NEMA L6-20

  • Color

    Red

  • Note

    Slim Type
    Input Plug: NEMA L6-20
    VCT5.5mm²×3M
    Build to Order
    RoHS2 Compliant

*This product is for equipment (Products to be mounted on equipment). Please do not use it for other uses.

Feauture

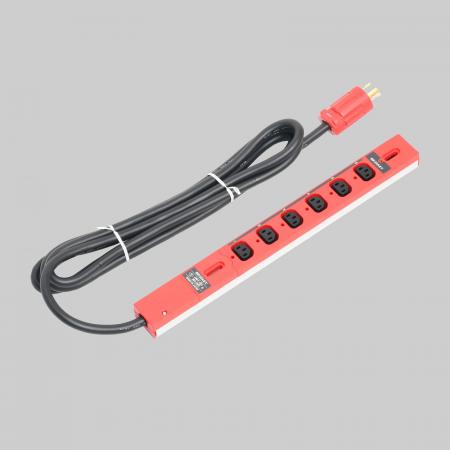

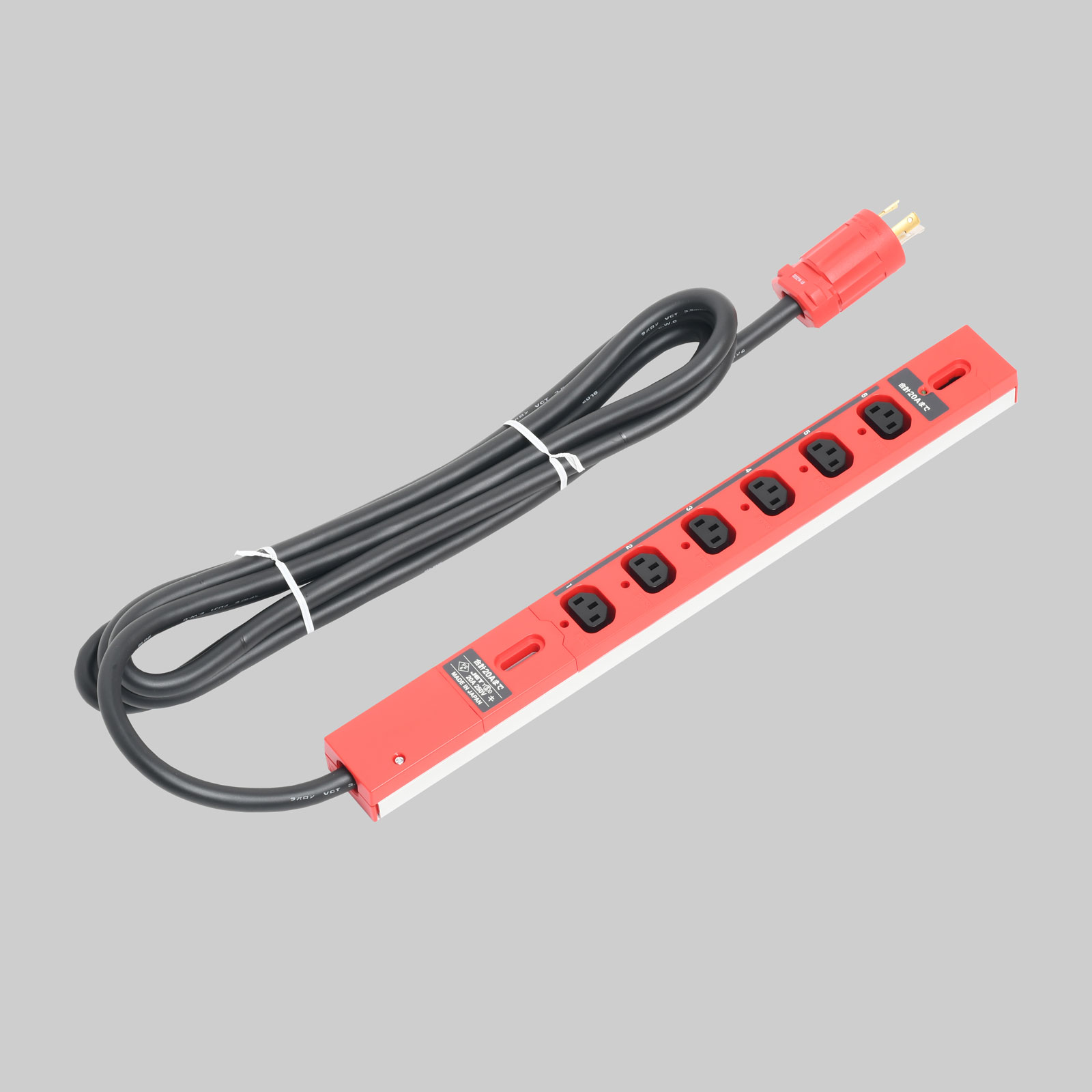

It is a red rack mount power distribution unit with 6 IEC C-13 outlets and an input plug of NEMA L6-20 (2P, 3W GND 20A 250V), that can be attached in the vertical direction of 19 inch rack. By making the attached plugs the same color, it is possible to identify the power line more easily. By eliminating the slide-rail and mounting brackets, it becomes slim type specification contributed to space saving. In order to make power management easier, group notation is given on the surface by alphabet for each circuit. In addition, numeric notation by the number is given to each outlet. There is a mounting hole for the cord clamp (sold separately) to fix the plug which prevents falling off when using the IEC C-14 plug at all outlets.
Electrical Appliance and Material Safety Law (PSE) compliant product.
