SLP9100-SV

Waterproof

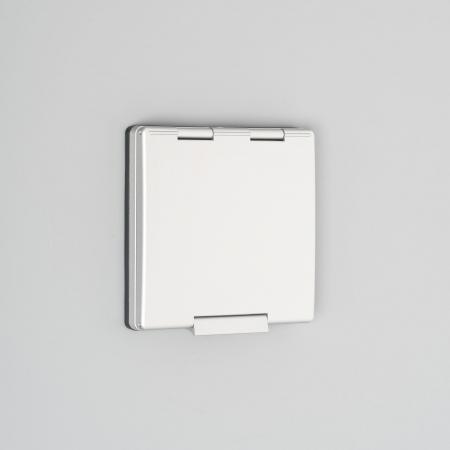

Sealock Plate: Dust & Jet Proof Lift Cover Plate [Silver Color]

Sealock Plate: Dust & Jet Proof Lift Cover Plate [Silver Color]

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Gang, for Multipurpose (Hole Dimension 71×99)

Sealock Plate: Dust & Jet Proof Lift Cover Plate [Silver Color]

  • Catalog No.

    SLP9100-SV

  • Price(JPY YEN)

    ￥7,810

  • Waterproof IP Rating

    IP65 Conforming Product

  • Color

    Silver

  • Body Flammability

    UL94 V-0

  • Weight

    145.8g

  • Note

    for 2 Gang
    with LB-S Sticker (Rated Voltage Display)
    RoHS2 Compliant

*When using it as a dust and jet proof specification, be sure to install it using "mounting hole for dust and jet proof". Please note that you can not obtain the function for dust and jet proof by installation only "mounting hole for receptacle".

Feauture

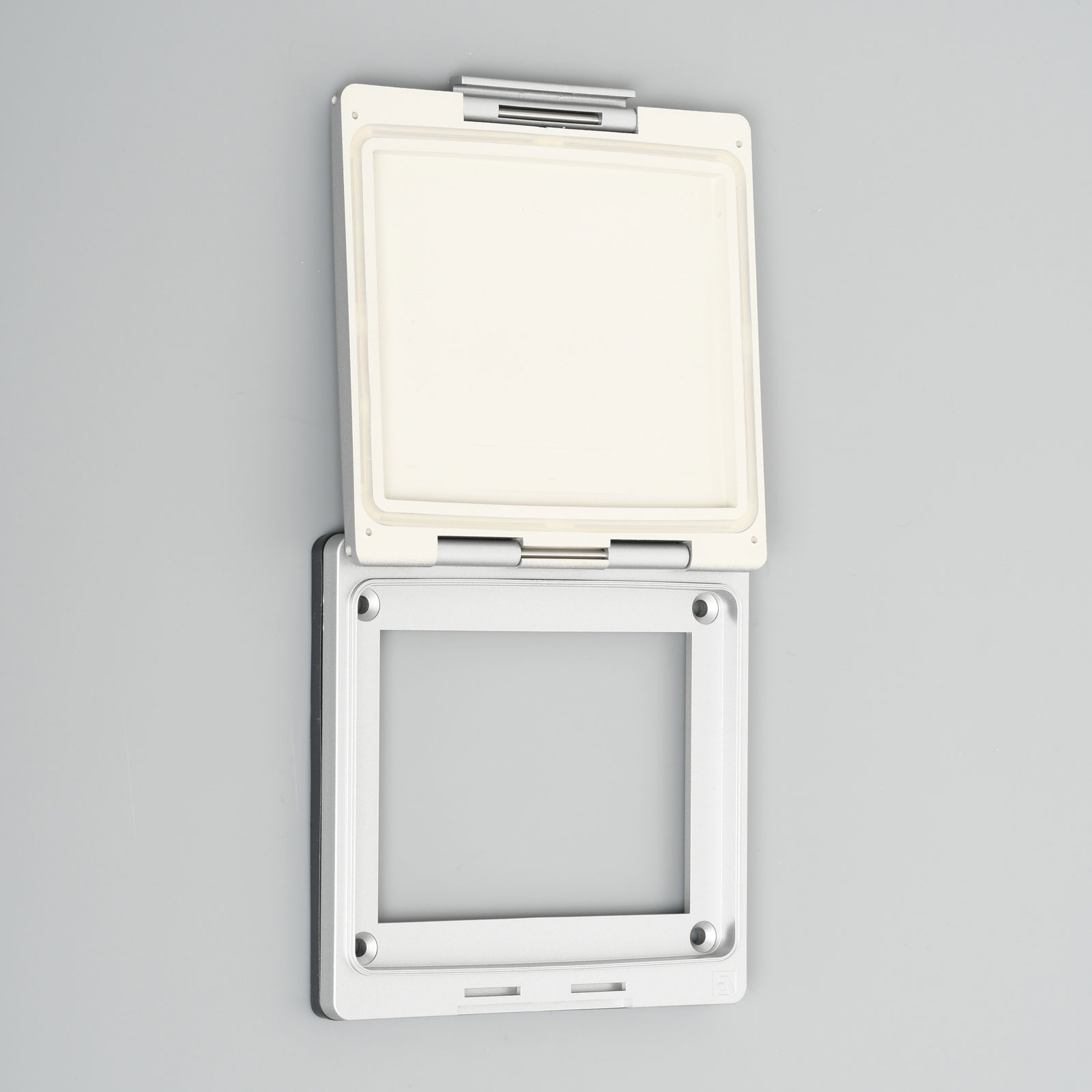

It is a multipurpose type cover opening-closing type plate that can be installed as a waterproof cover for holes on the panel surface. Depending on the installation method, when cover is fully closed, it will be dust and jet proof specification IP65, equivalent products based on JIS C 0920 (protection class by electrical machine equipment shell). In use, it can be stopped at the cover full-open position (180°).The material of the plate and cover are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
