4220PW

Waterproof

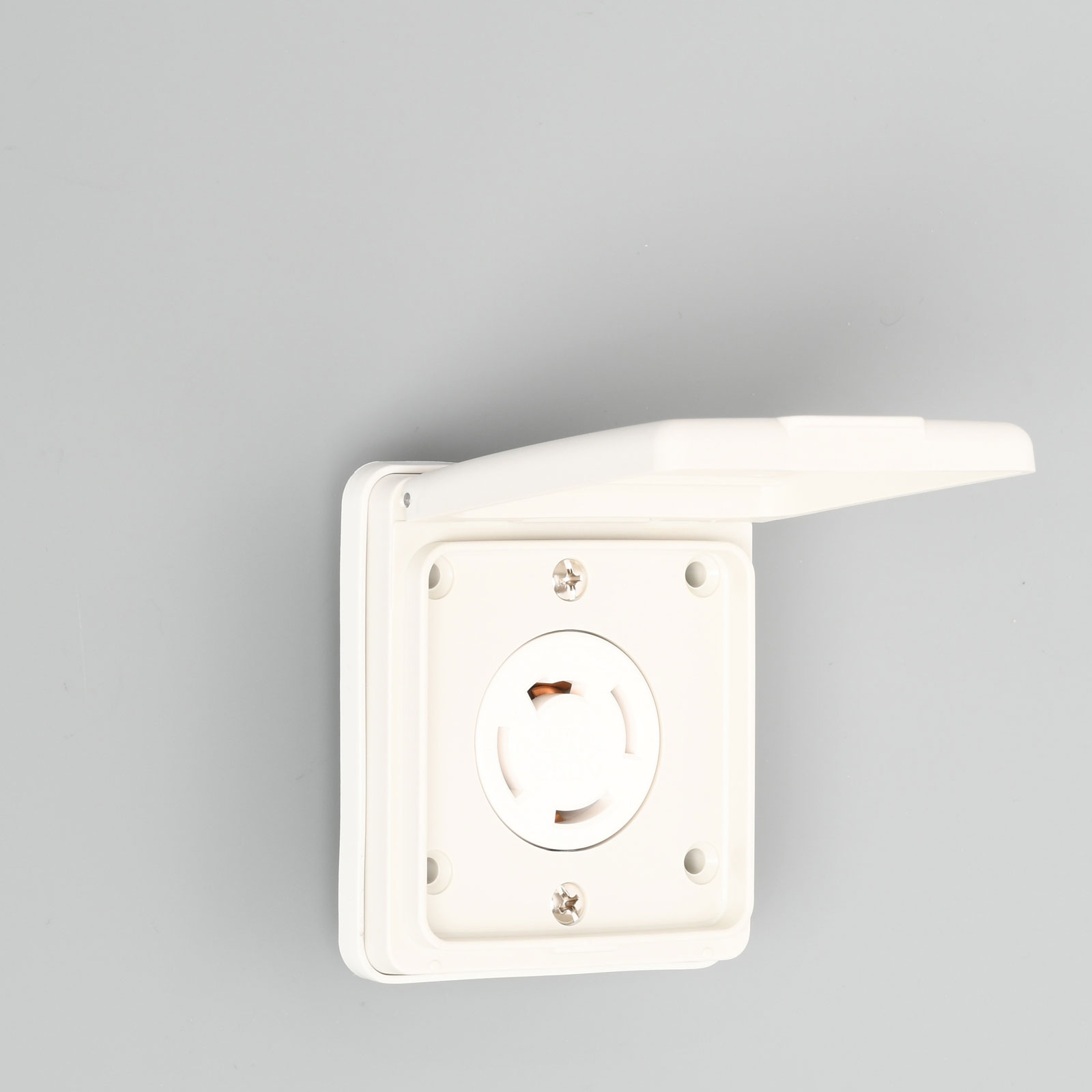

Waterproof Panel Receptacle

Waterproof Panel Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 20A 250V

Waterproof Panel Receptacle

  • Catalog No.

    4220PW

  • Price(JPY YEN)

    ￥3,170

Twist Locking

  • Waterproof IP Rating

    IP44 Conforming Product

  • Color

    White

  • Wire Size

    2φ〜2.6φ、3.5mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R3.5-4、R5.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    199.3g

  • Note

    Combination of PLC41W and 4220-P-IV
    with Plate Screw, Mounting Screw and Nut
    with PLC Sticker (Rated Voltage Display)
    RoHS2 Compliant

Feauture

It is a cover opening-closing type waterproof panel receptacle which is combination of Panel Receptacle (4220-P-IV) and Waterproof Panel Lift Cover Plate (PLC41W). When cover is fully closed, it will be dust & jet proof specification IP44, equivalent products based on JIS C 0920 (protection class by electrical machine equipment shell). And it can be stopped at the cover 80 ° and 160 ° position in use. The material of the plate and cover are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
Electrical Appliance and Material Safety Law (PSE) compliant product.
