W501-3

Waterproof

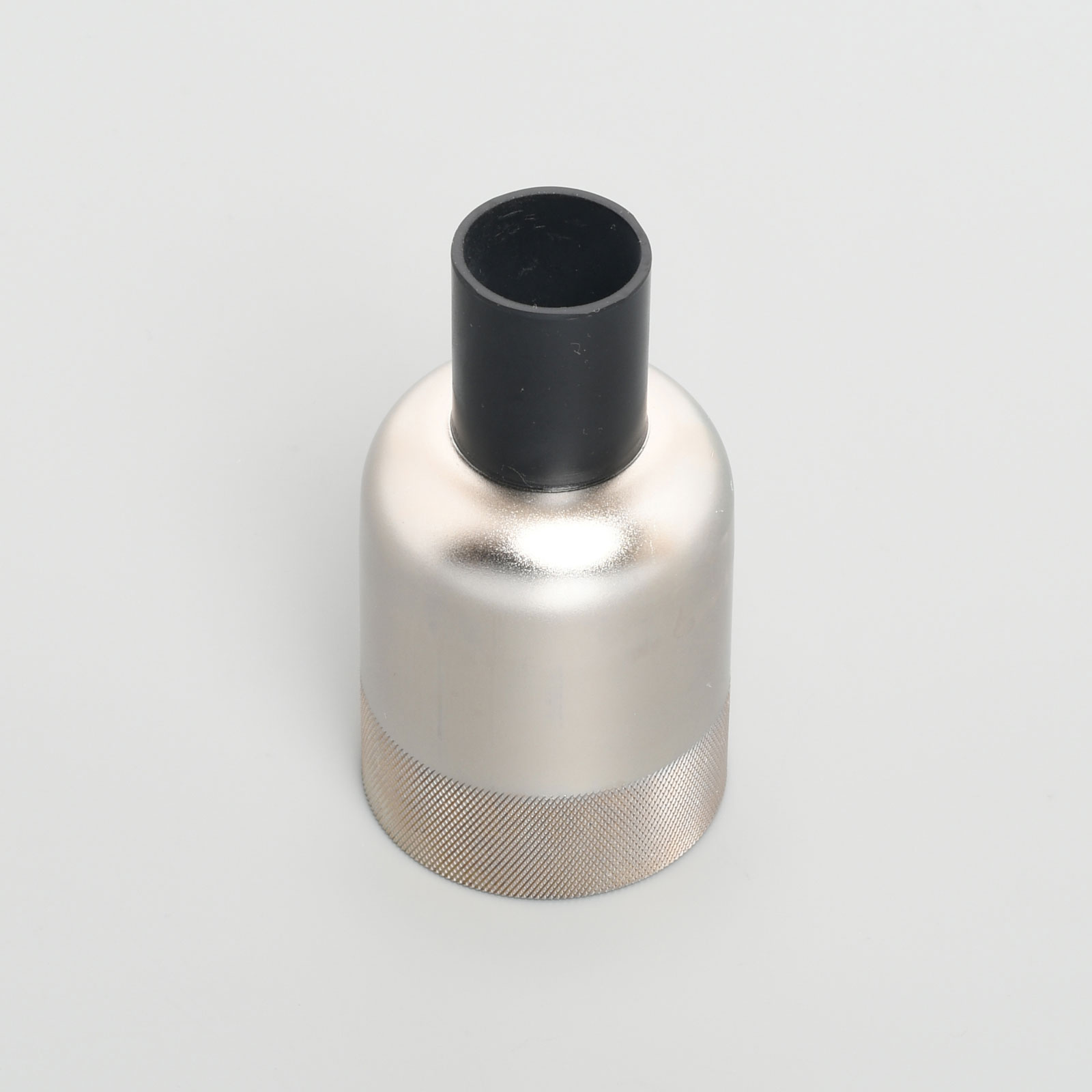

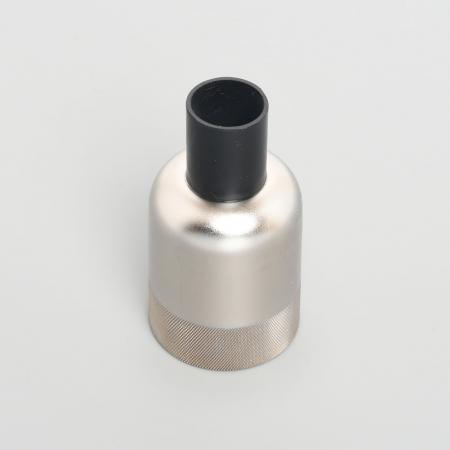

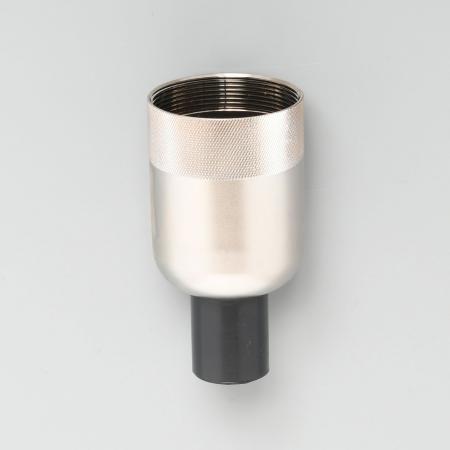

Waterproof Metallic Cover

Waterproof Metallic Cover

You can see the enlarged image by clicking the image.

Data Sheet Download

for Waterproof Plate (W501-2・W502-2)

Waterproof Metallic Cover

  • Catalog No.

    W501-3

  • Price(JPY YEN)

    ￥4,570

  • Waterproof IP Rating

    IP65 Conforming Product

  • Weight

    170.8g

  • Note

    Applicable Plug: Main Body Dimension φ44×60mm or Less
    RoHS2 Compliant

Feauture

It is a brass cover for covering 15A plug and connector body which can be used for waterproof plate (dust & jet proof) and waterproof flanged inlet (dust & jet proof). When using, pass the cable through this waterproof metallic cover before connecting the devices such as a plug. After inserting the plug or connector body, it can be given IP65 performance by tightening to the waterproof plate (dust & jet proof) and the waterproof flanged inlet (dust & jet proof).
