W901-3

Waterproof

Waterproof Metallic Cover

Waterproof Metallic Cover

You can see the enlarged image by clicking the image.

Data Sheet Download

for Waterproof Plate (W901-2)

Waterproof Metallic Cover

  • Catalog No.

    W901-3

  • Price(JPY YEN)

    ￥8,840

  • Waterproof IP Rating

    IP65 Conforming Product

  • Weight

    372.3g

  • Note

    Applicable Plug: Main Body Dimension φ75×82mm or Less
    RoHS2 Compliant

Feauture

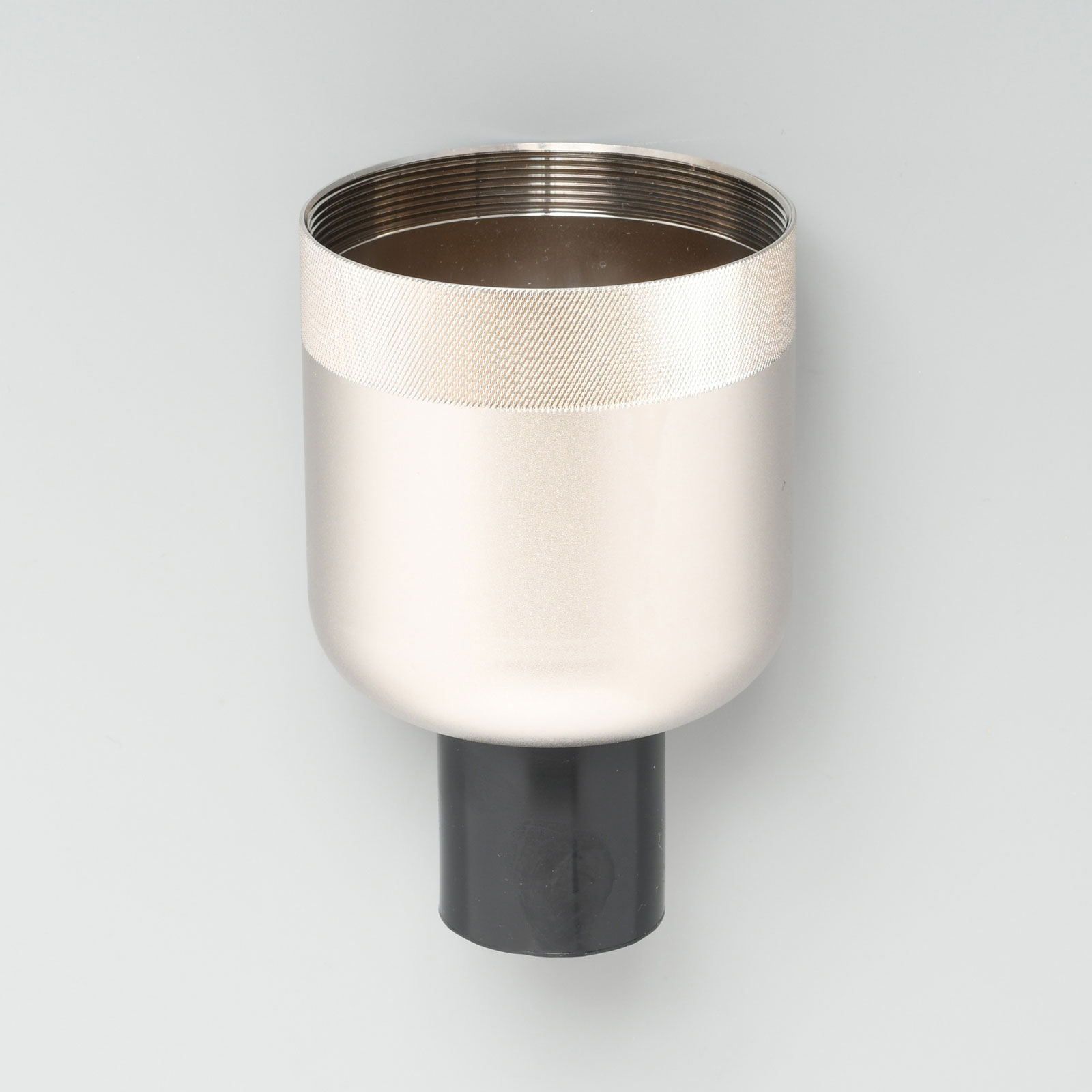

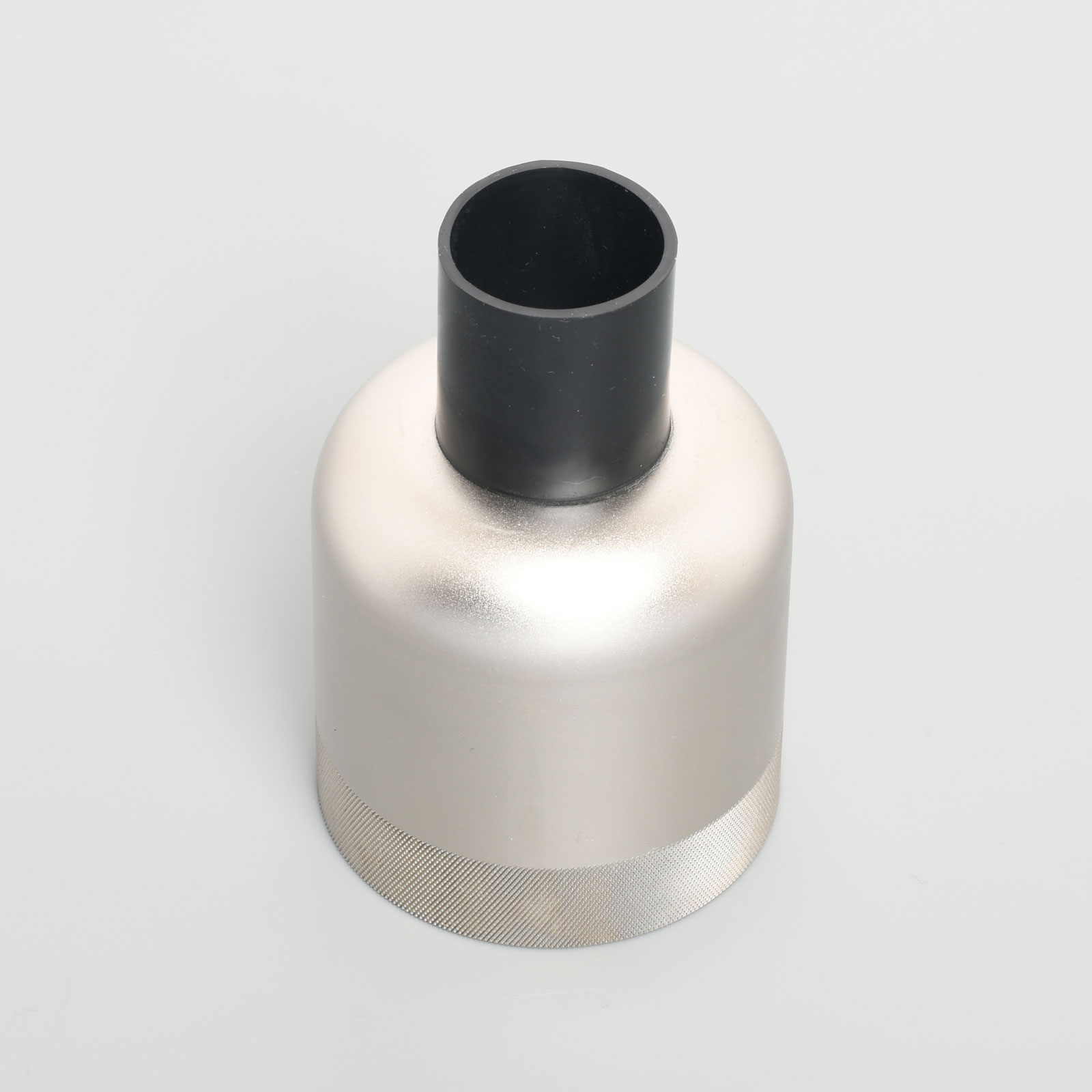

It is a brass cover for covering 30A/60A plug and connector body which can be used for waterproof plate (dust & jet proof) and waterproof flanged inlet (dust & jet proof). When using, pass the cable through this waterproof metallic cover before connecting the devices such as a plug. After inserting the plug or connector body, it can be given IP65 performance by tightening to the waterproof plate (dust & jet proof) and the waterproof flanged inlet (dust & jet proof).
