8320N

Receptacle

Receptacle

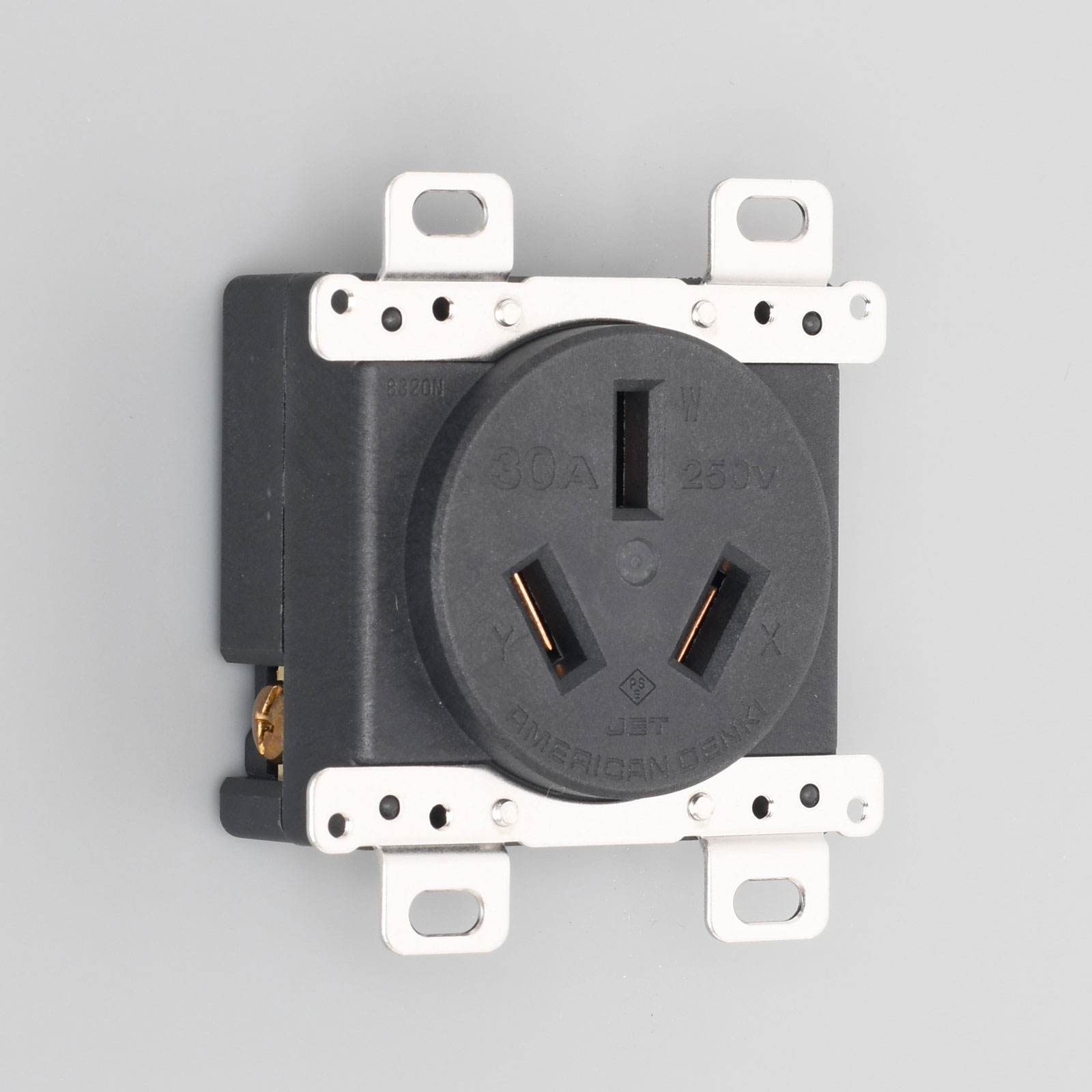

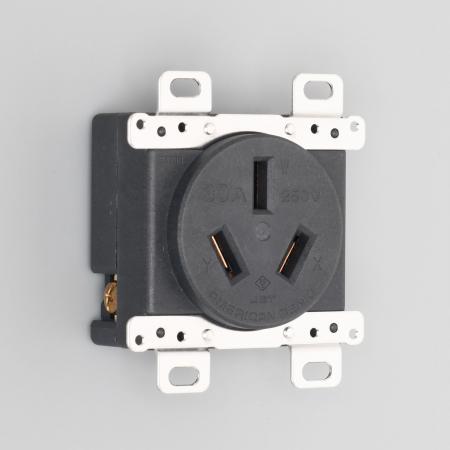

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 3-Wire 30A 250V

Receptacle

  • Catalog No.

    8320N

  • Price(JPY YEN)

    ￥3,210

Straight Blade

  • Color

    Black

  • Wire Size

    2.6φ〜3.2φ、5.5mm²、8mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R5.5-5、R8-5

  • Body Flammability

    UL94 V-0

  • Weight

    210.2g

  • Note

    RoHS2 Compliant

Feauture

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.
The material of the main body is made of flame-retardant (UL94 V-0) reinforced nylon resin containing 30% filler (glass fiber) which possesses heat resistance and tracking resistance and contains no harmful substances.

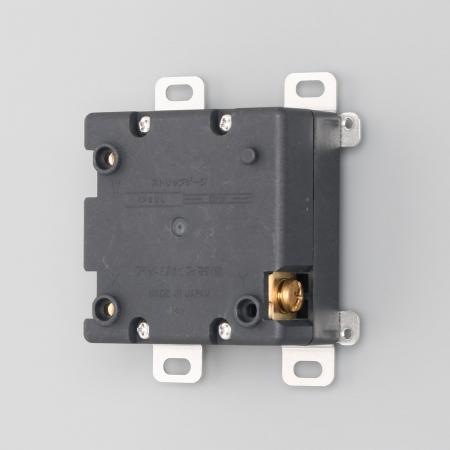

Connectivity is "crimp terminal" tightening the terminal screw (double sems) on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
