JB5C

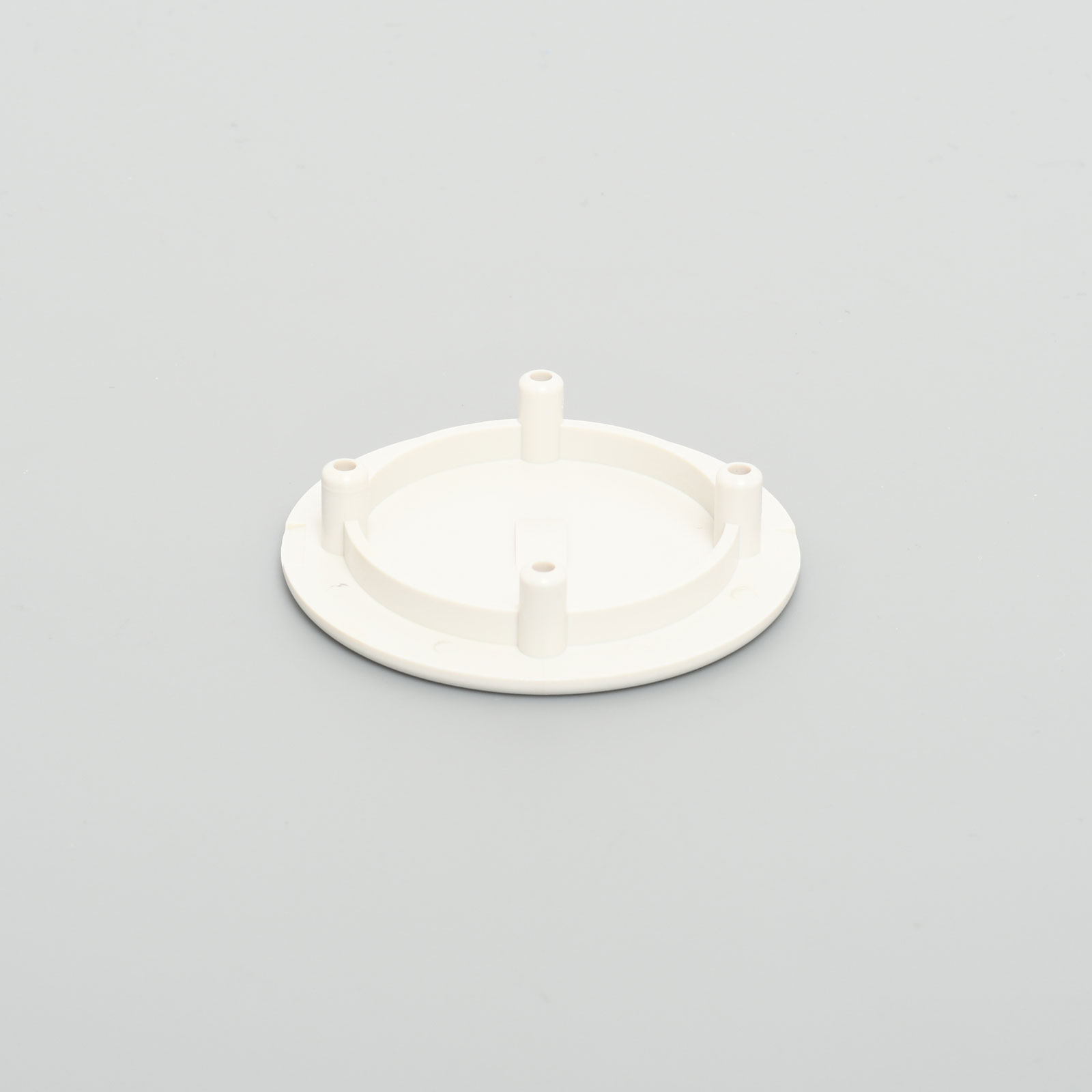

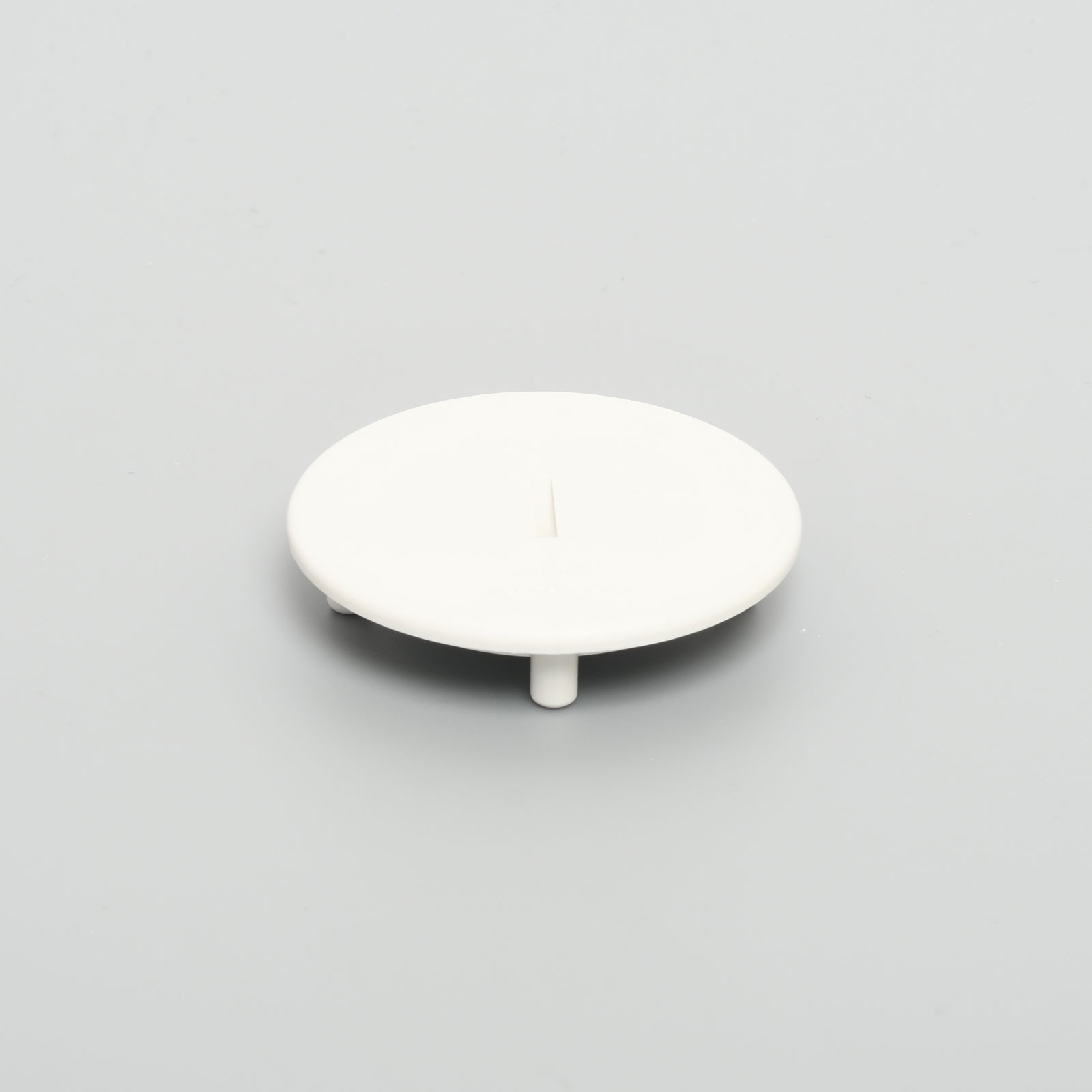

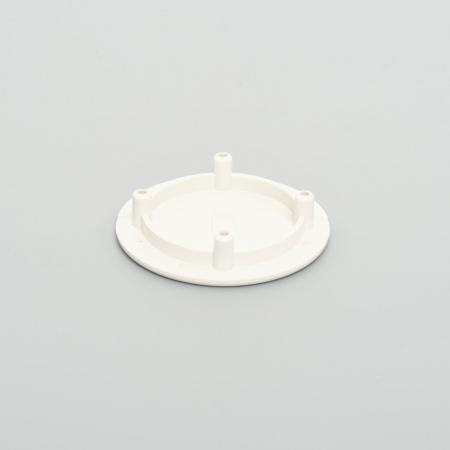

Extensible Nylon Cord Bushing [Cap]

Extensible Nylon Cord Bushing [Cap]

You can see the enlarged image by clicking the image.

Data Sheet Download

Cap for Flange

Extensible Nylon Cord Bushing [Cap]

  • Catalog No.

    JB5C

  • Price(JPY YEN)

    ¥360

  • Color

    White

  • Body Flammability

    UL94 V-0

  • Weight

    13.65g

  • Note

    Nylon
    Scheduled to be discontinued on January 20, 2027
    RoHS2 Compliant

Feauture

It is a nylon cord bushing that can adjust the length, protecting the surface of penetrating holes and penetrations (cable and pipe) from damage such as scratches or abrasions.
Effective length can be freely set by combination of various parts.
It is a closing cap dedicated to Flange (JB5F).
It is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
