3222N-L6-CS
2-Pole 3-Wire Grounding 20A 250V (NEMA L6-20)

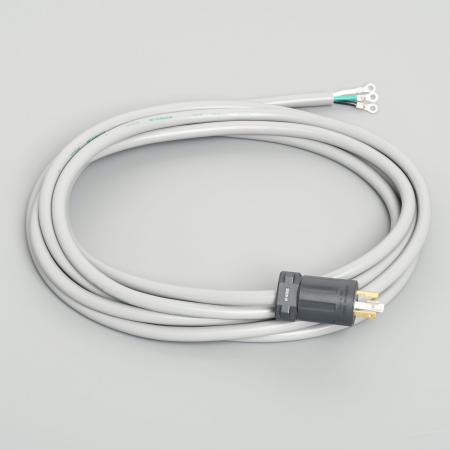

NEMA L6-20 Plug with Cable
-
Catalog No.
3222N-L6-CS
-
Price(JPY YEN)
￥8,520
Twist Locking
-
NEMA Configuration No.
NEMA L6-20
-
Body Flammability
UL94 V-0
-
Weight
1403.6g
-
Note
Nylon Housing Plug with Cable
VCT3.5mm²×5M
with 3 Crimp Terminal R3.5-5S
RoHS2 Compliant
Feauture
It is a VCT cable 5M set product with NEMA L6-20 nylon housing plug.Since the terminal end is crimp terminal processed, it can be easily connected to the terminal block of 0U rack mount power distribution unit.
Electrical Appliance and Material Safety Law (PSE) compliant product.
