Twist Locking Wiring Devices - AMERICAN DENKI

Feauture

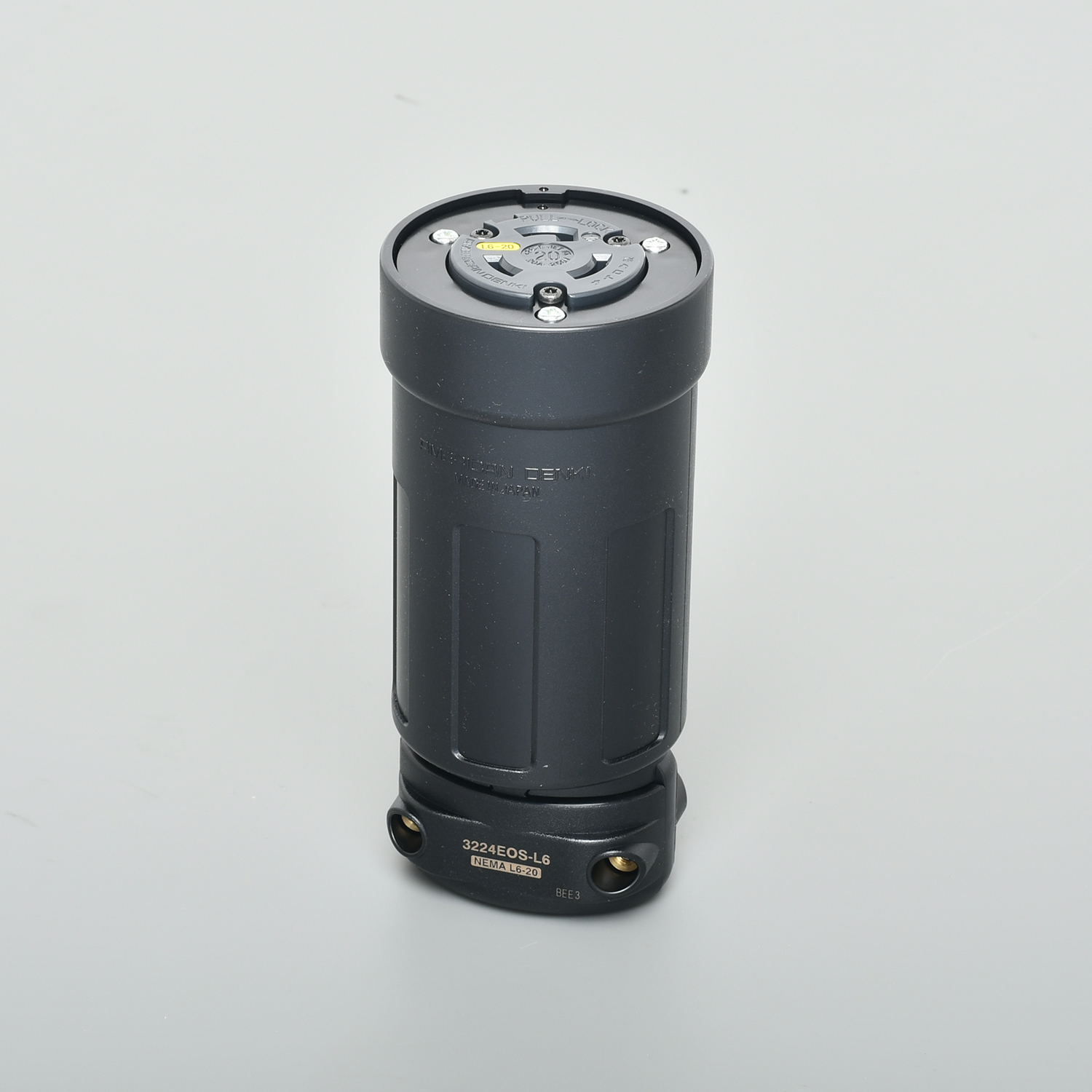

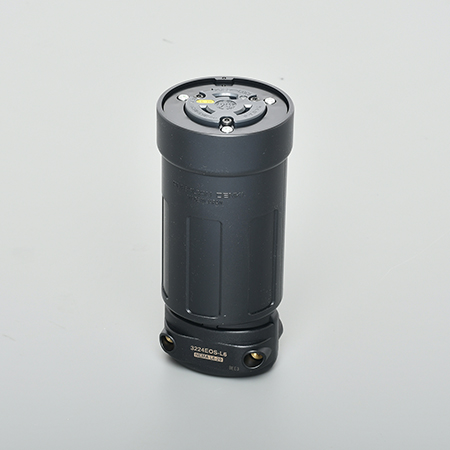

This is a device that is connected to the end of an electric wire and used for relaying in combination with a plug.
This connector body is ideal for reducing current loss at a high level or for voltage drop countermeasures when long distance wiring is required.
The body material is flame-retardant (UL94 V-0) nylon resin that has heat resistance and tracking resistance and does not contain harmful substances. The outer housing material is flame-retardant (UL94 V-0 or higher) polycarbonate, an ultra-high strength resin with excellent impact resistance.

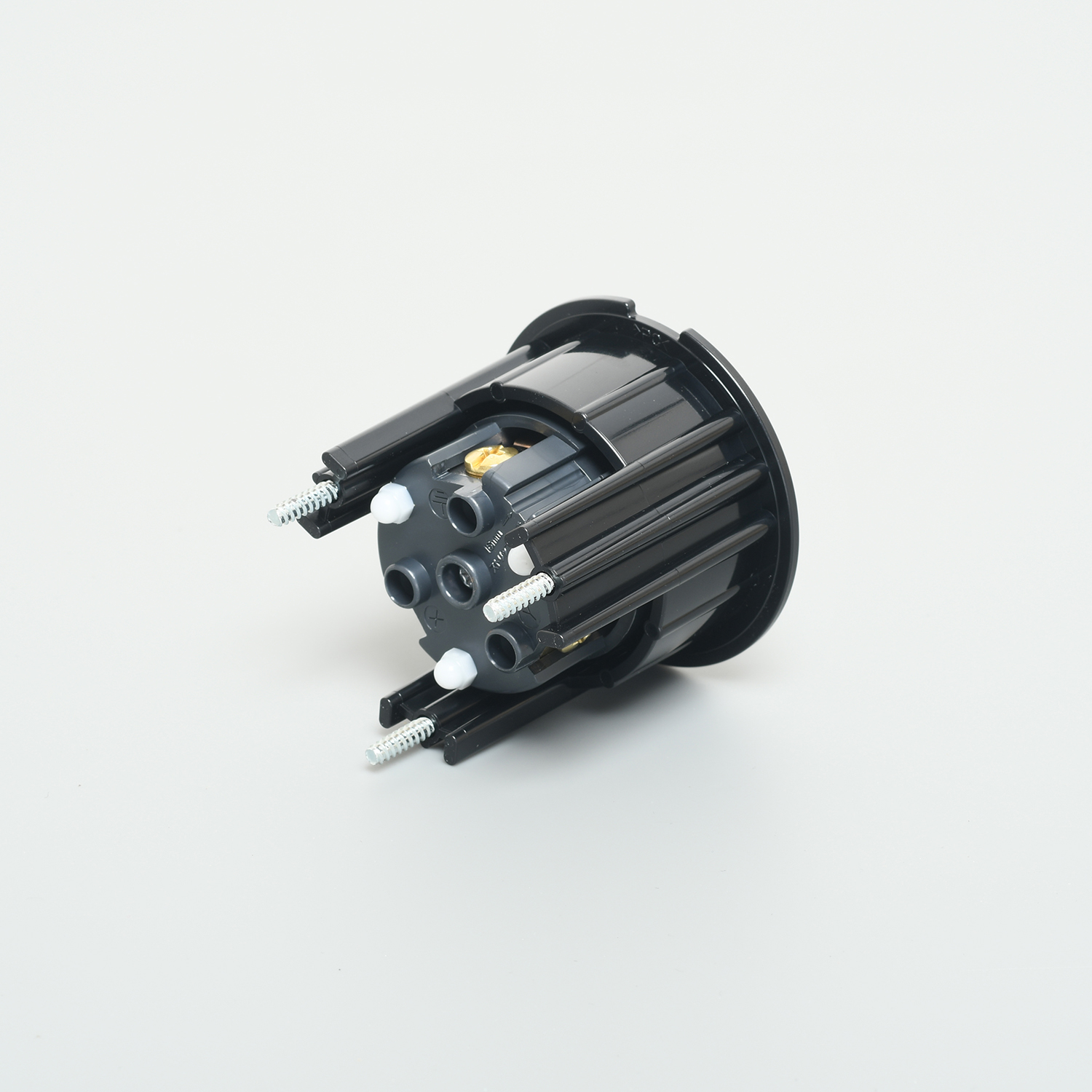

The electric wire is connected using a "crimp terminal" by tightening the terminal screw.
Our 20A rated cord connector body can connect 2PNCT/VCT 3.5mm² or one size larger thick electric wire 5.5mm², but the oversized connector body can be used to connect conductor sizes up to 2CT/VCT 8mm² or 14mm².
When connecting 8mm² wire, first pass the wire through the included bushing tube, then after connecting it to the main body, move the tube close to the product grip and tighten the grip.
This product complies with the Electrical Appliance and Material Safety Act (PSE).
