7112GNXL

NEMA

Hyper Plug

Hyper Plug

You can see the enlarged image by clicking the image.

Data Sheet Download

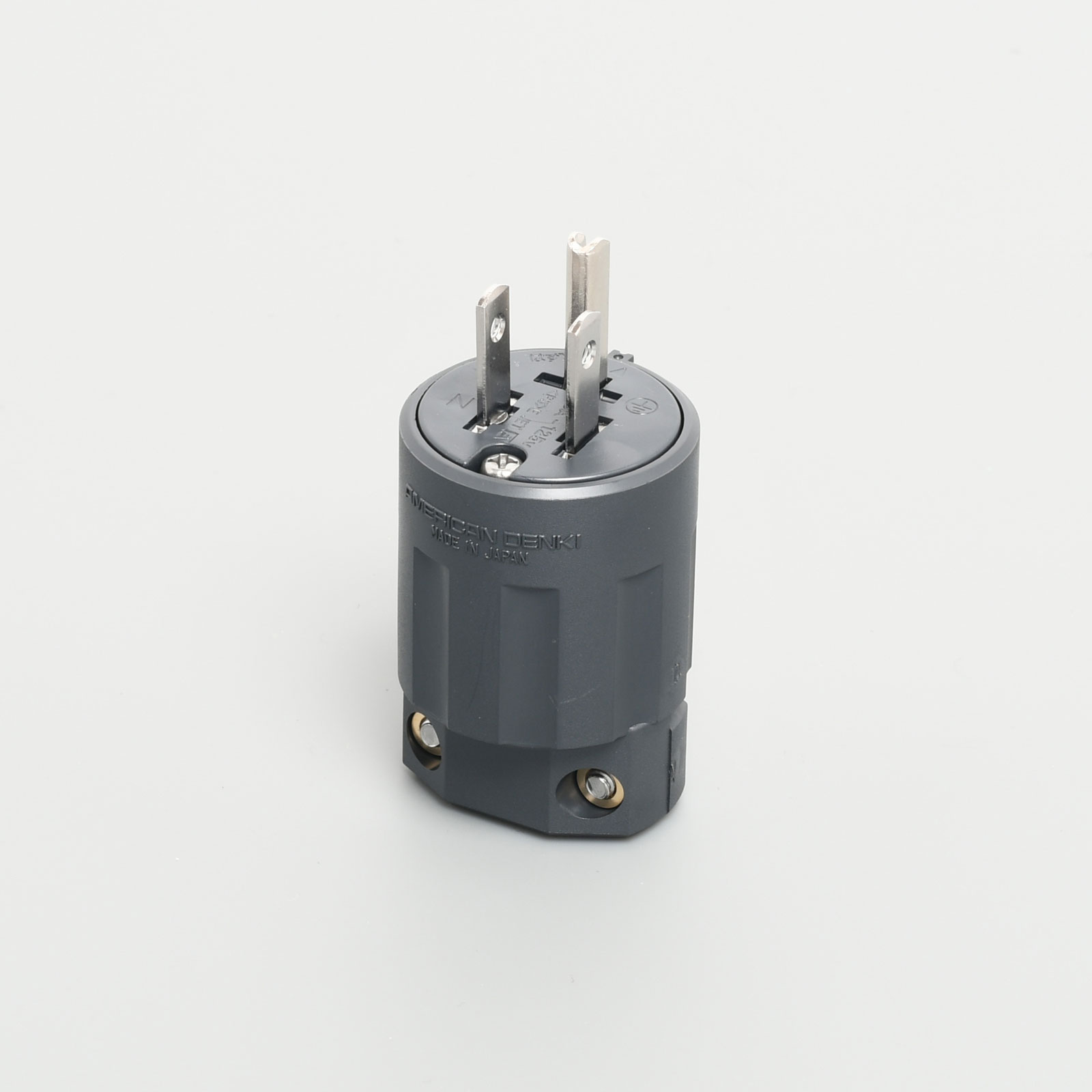

2-Pole 3-Wire Grounding 15A 125V (NEMA 5-15)

Hyper Plug

  • Catalog No.

    7112GNXL

  • Price(JPY YEN)

    ￥4,500

Straight Blade

  • NEMA Configuration No.

    NEMA 5-15

  • Color

    Black

  • Wire Size

    VCT 3.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R3.5-4 (Included)

  • Body Flammability

    UL94 V-0

  • Weight

    53.2g

  • Note

    Hyper Series
    Nylon Housing
    RoHS2 Compliant

Feauture

This is a plug developed for minimizing the attenuation of the AC power supply and realizing high quality conduction in the cleaner (improvement of the conduction efficiency and stabilization of the conduction). The body (enclosure / insulation part) contains flame retardant specification (UL94 V-0) which is excellent in heat resistance, oil resistance, abrasion resistance, chemical resistance, tracking resistance nylon resin is adopted. Furthermore, in order to improve corrosion resistance and abrasion resistance on the surface of all the blades and terminal screws excluding the earth blade, rare platinum group metal used for high crass tableware, accessories, special chemical equipment, medical instruments, etc. Similarly, rhodium plating crimp terminals (R5.5-4 & times; 3 pieces) for wiring are also included. Considering suppression of the influence on the electric circuit, we adopted the non-magnetic metal for all metal parts, such as using stainless steel for the material of the setscrew.
Electrical Appliance and Material Safety Law (PSE) compliant product.
