7117GHDZ-RD

Discontinued

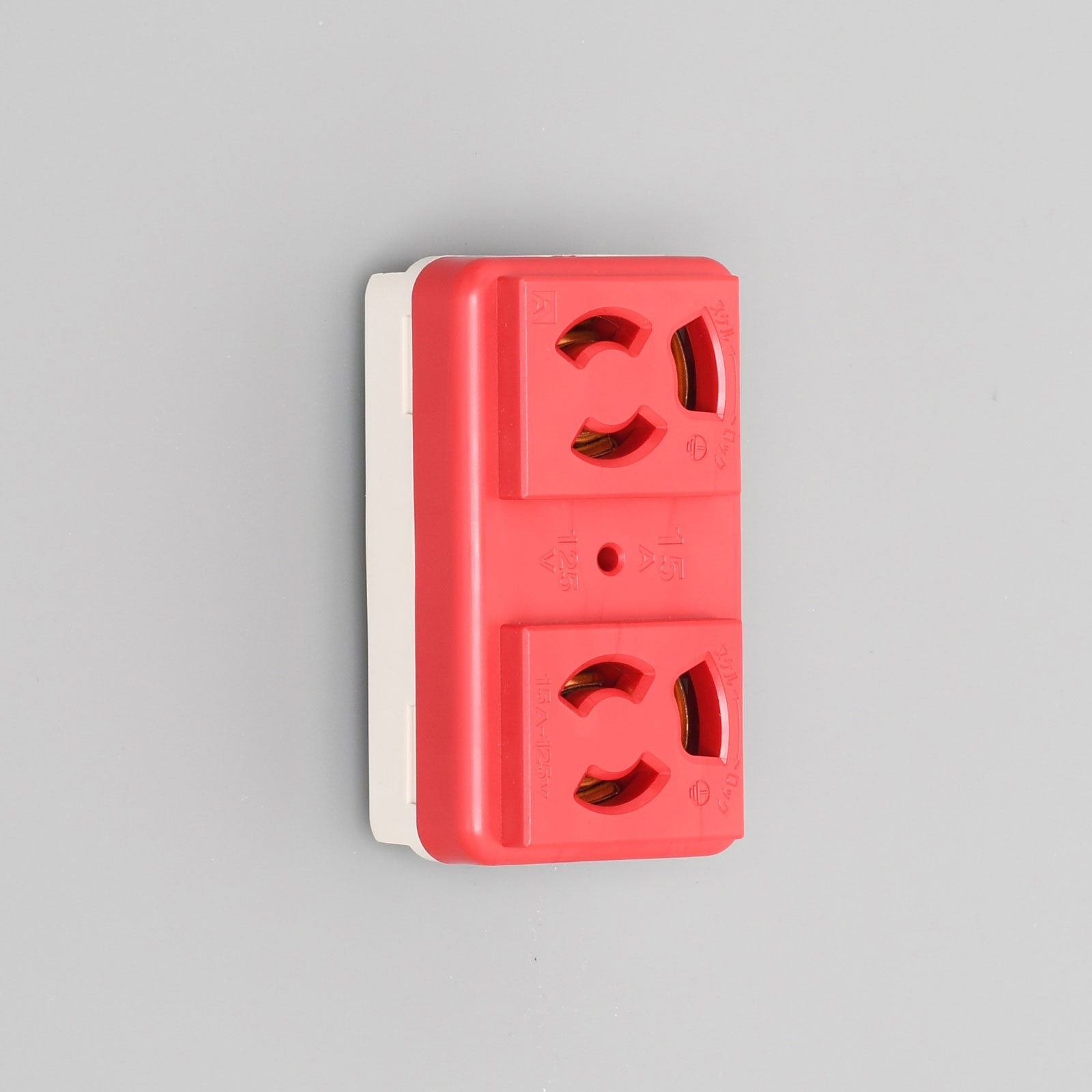

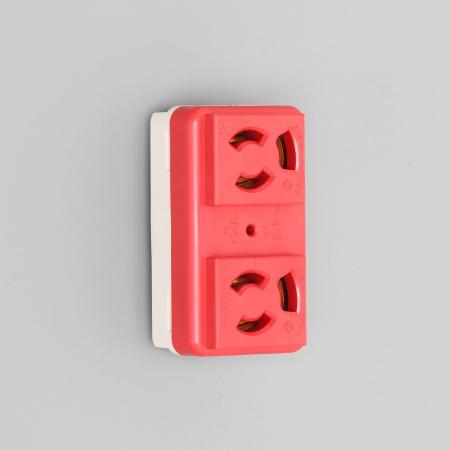

Panel Mount Duplex Outlet

Panel Mount Duplex Outlet

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 125V

Panel Mount Duplex Outlet

  • Catalog No.

    7117GHDZ-RD

  • Price(JPY YEN)

    ￥0

  • Discontinued Date

    January, 2022

  • Alternative Product

    7117GHDZ (White), 7117GHDZ-BK (Black)

2 Clamp Locking

  • Color

    Red

  • Wire Size

    1.6φ〜2φ、2mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R2-4

  • Body Flammability

    UL94 V-0

  • Weight

    77.6g

  • Note

    Discontinued Product
    RoHS2 Compliant

Feauture

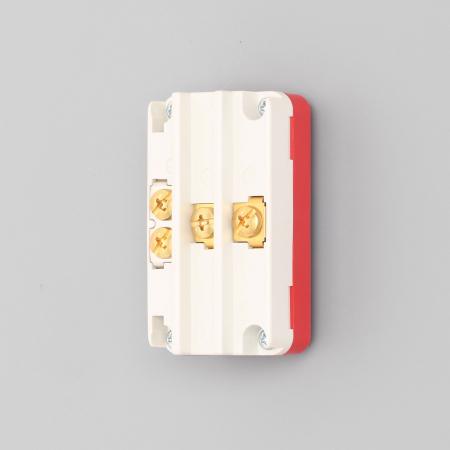

Panel Mount Duplex Outlet is the duplex contact device which is intended for flush embedded on an appliance or equipment, and which is intended to establish electrical connection with an inserted plug. It can be mounted with one screw. Since the terminal parts are arranged in parallel on the back side, wiring work can be done easily.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
