4220-P

Panel Receptacle

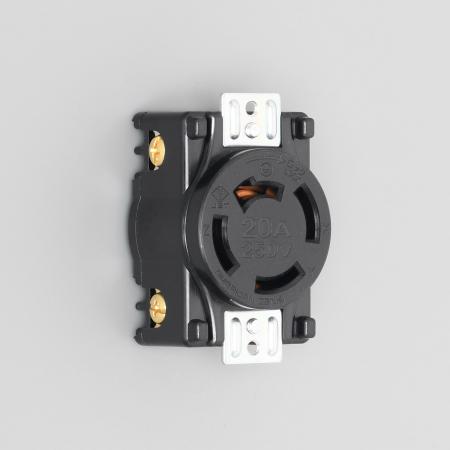

Panel Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 20A 250V

Panel Receptacle

  • Catalog No.

    4220-P

  • Price(JPY YEN)

    ￥1,350

Twist Locking

  • Color

    Black

  • Wire Size

    2φ〜2.6φ、3.5mm²、5.5mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R3.5-4、R5.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    101.7g

  • Note

    RoHS2 Compliant

Feauture

Panel Receptacle is the contact device which is intended for flush embedded on an appliance or equipment, and which is intended to establish electrical connection with an inserted plug.
The material of the main body is made of thermosetting resin excellent in durable and insulation properties.
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
