PLC41W
for 20A/30A Panel Receptacle (Face Dia. φ40.5)
Waterproof Lift Cover Plate
-
Catalog No.
PLC41W
-
Price(JPY YEN)
￥1,710
-
Waterproof IP Rating
IP44 Conforming Product
-
Color
White
-
Body Flammability
UL94 V-0
-
Weight
96.7g
-
Note
with Plate Screw, Mounting Screw and Nut
PLC Sticker (Rated Voltage Display)
RoHS2 Compliant
Feauture

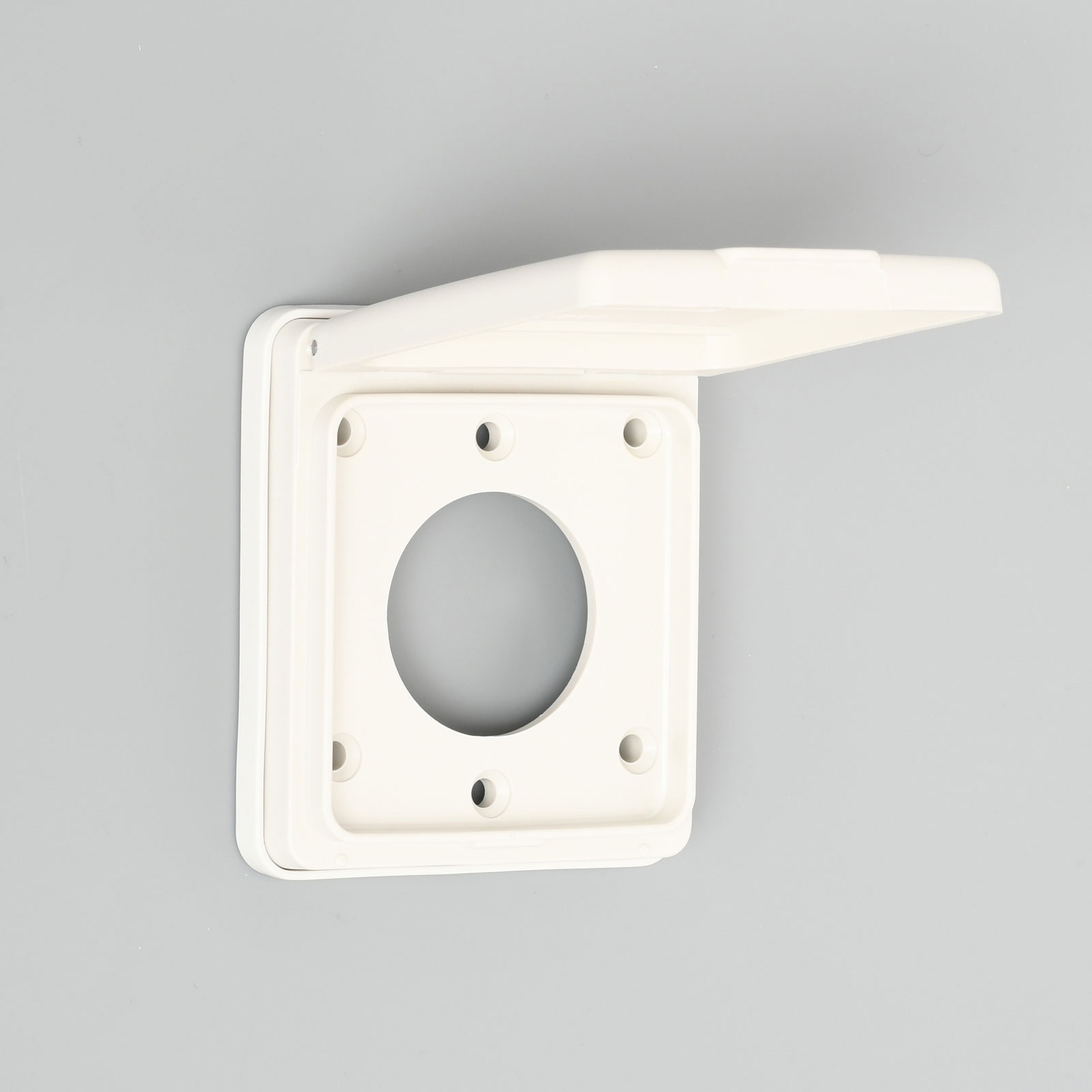

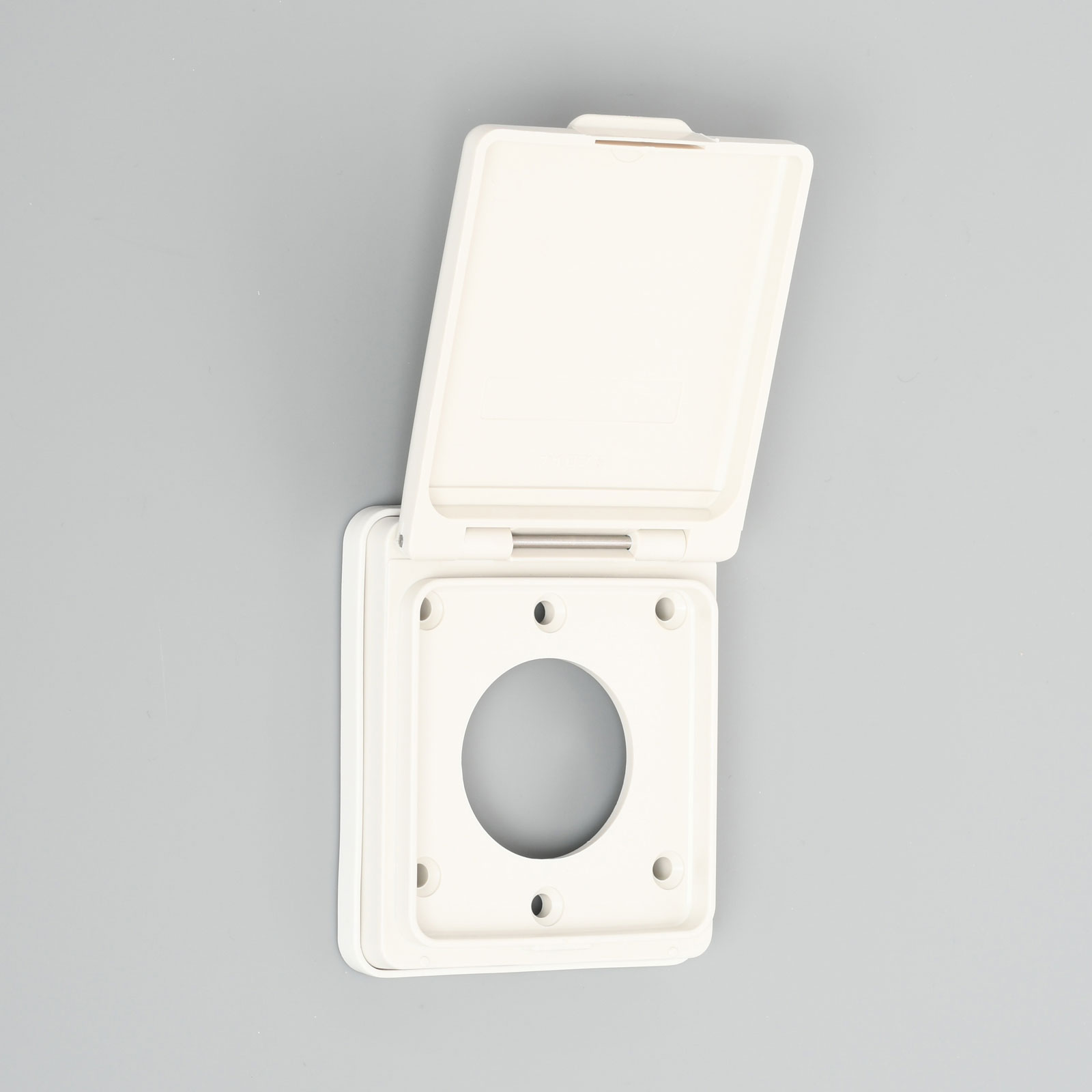

It is a cover opening-closing type plate that can be attached to a panel receptacle (diameter: 40.5). When cover is fully closed, it will be dust & jet proof specification IP44, equivalent products based on JIS C 0920 (protection class by electrical machine equipment shell). And it can be stopped at the cover 80 ° and 160 ° position in use. The material of the plate and cover are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.Related Product
-
