3121

Discontinued

NEMA

Surface Receptacle

Surface Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

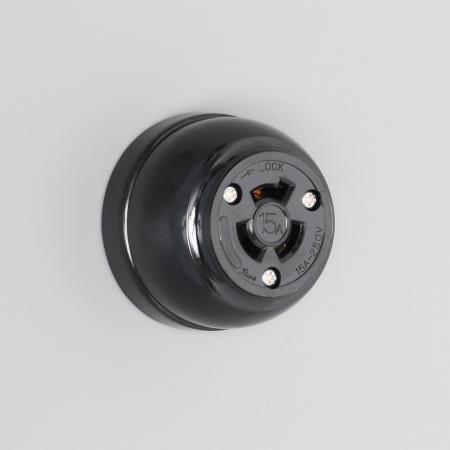

2-Pole 3-Wire Grounding 15A 250V (NEMA L6-15)

Surface Receptacle

  • Catalog No.

    3121

  • Price(JPY YEN)

    ￥0

  • Discontinued Date

    April, 2024

  • Alternative Product

Twist Locking

  • NEMA Configuration No.

    NEMA L6-15

  • Color

    Black

  • Wire Size

    1.6φ〜2φ、2mm²

  • Connectivity

    Wire Binding Terminal

  • Weight

    75.1g

  • Note

    RoHS2 Compliant

Feauture

Surface Receptacle is the contact device which is intended to be installed on the surface of a wall, panel or equipment, and which is intended to establish electrical connection with an inserted plug.
Connectivity is "binding terminal" in which the conductor is wound around the neck of the terminal screw and the screw is tightened to fix it.

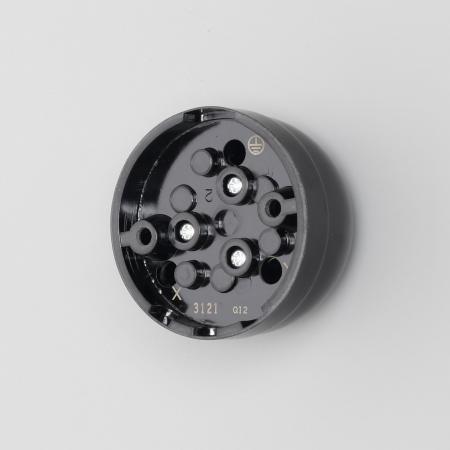

Pull out the wire by cracking the cable entry of the knockout type on the back side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
