3122N

NEMA

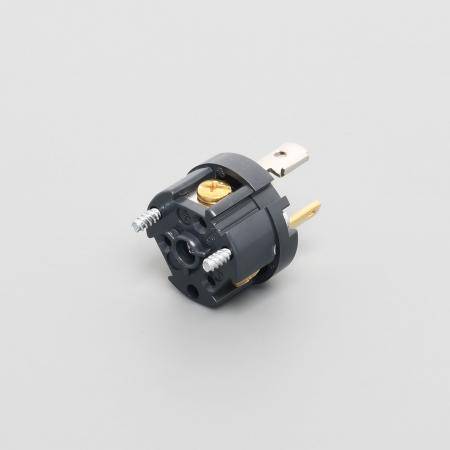

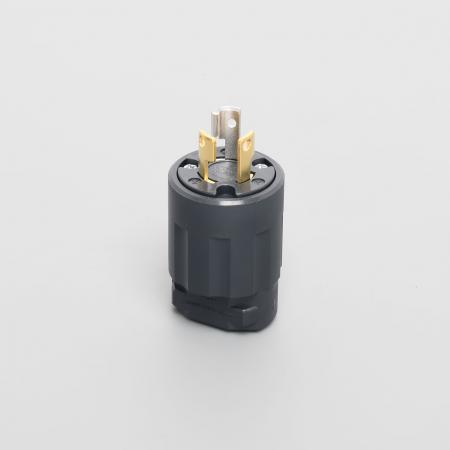

Plug (Nylon Housing)

Plug (Nylon Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 250V (NEMA L6-15)

Plug (Nylon Housing)

  • Catalog No.

    3122N

  • Price(JPY YEN)

    ￥940

Twist Locking

  • NEMA Configuration No.

    NEMA L6-15

  • Color

    Black

  • Wire Size

    2PNCT/VCT 2mm²、VCT 3.5mm²(Crimping Terminal only)

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R2-4、R3.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    60.5g

  • Note

    Nylon Housing
    RoHS2 Compliant

Feauture

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.
The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
