3121D

Discontinued

NEMA

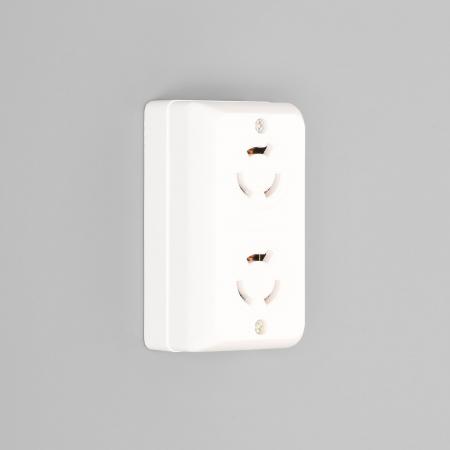

Duplex Surface Receptacle

Duplex Surface Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 250V (NEMA L6-15)

Duplex Surface Receptacle

  • Catalog No.

    3121D

  • Price(JPY YEN)

    ￥0

  • Discontinued Date

    April, 2024

  • Alternative Product

2 Twist Locking

  • NEMA Configuration No.

    NEMA L6-15

  • Color

    White

  • Wire Size

    1.6φ〜2φ、2mm²

  • Connectivity

    Push-in-screw Terminal

  • Body Flammability

    UL94 V-0

  • Weight

    157.2g

  • Note

    Duplex
    RoHS2 Compliant

Feauture

Surface Receptacle is the contact duplex device which is intended to be installed on the surface of a wall, panel or equipment, and which is intended to establish electrical connection with an inserted plug.
Connectivitys is "screwing terminal" using wire insertion holes.

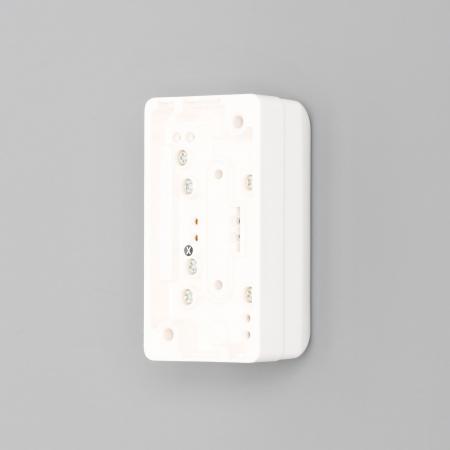

Pull out the wire by cracking the cable entry of the knockout type on the back side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
