3221

Discontinued

Surface Receptacle

Surface Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 3-Wire 20A 250V

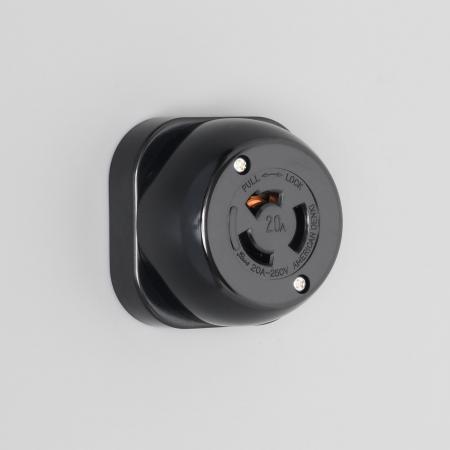

Surface Receptacle

  • Catalog No.

    3221

  • Price(JPY YEN)

    ￥0

  • Discontinued Date

    April, 2024

  • Alternative Product

Twist Locking

  • Color

    Black

  • Wire Size

    2φ〜2.6φ、3.5mm²

  • Connectivity

    Push-in-screw Terminal

  • Body Flammability

    UL94 V-0

  • Weight

    109.4g

  • Note

    RoHS2 Compliant

Feauture

Surface Receptacle is the contact device which is intended to be installed on the surface of a wall, panel or equipment, and which is intended to establish electrical connection with an inserted plug.
The material of the main body is made of thermosetting resin excellent in durable and insulation properties.
Connectivitys is "screwing terminal" using wire insertion holes.

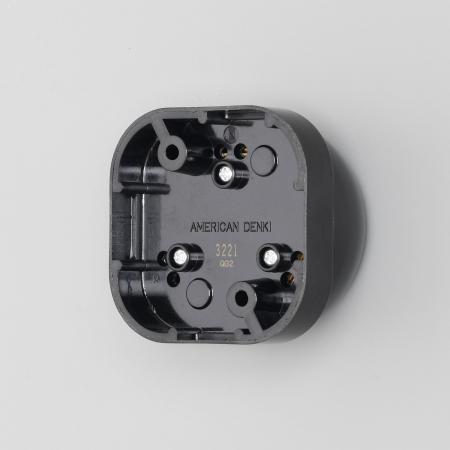

Pull out the wire by cracking the cable entry of the knockout type on the back side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
