3222R

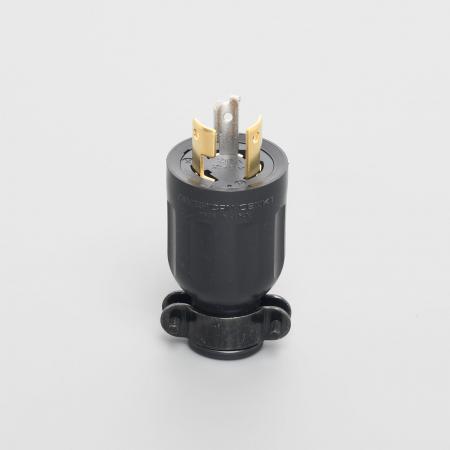

Plug (Rubber Housing)

Plug (Rubber Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 3-Wire 20A 250V

Plug (Rubber Housing)

  • Catalog No.

    3222R

  • Price(JPY YEN)

    ￥1,190

Twist Locking

  • Color

    Black

  • Wire Size

    2PNCT/VCT 3.5mm²、VCT 5.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R3.5-4、R5.5-4(VCT wiring)

  • Body Flammability

    UL94 V-0

  • Weight

    83.8g

  • Note

    Rubber Housing
    RoHS2 Compliant

Feauture

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances, and the housing is made of flame-retardant (UL94 V-1) soft rubber.
Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
