43

Discontinued

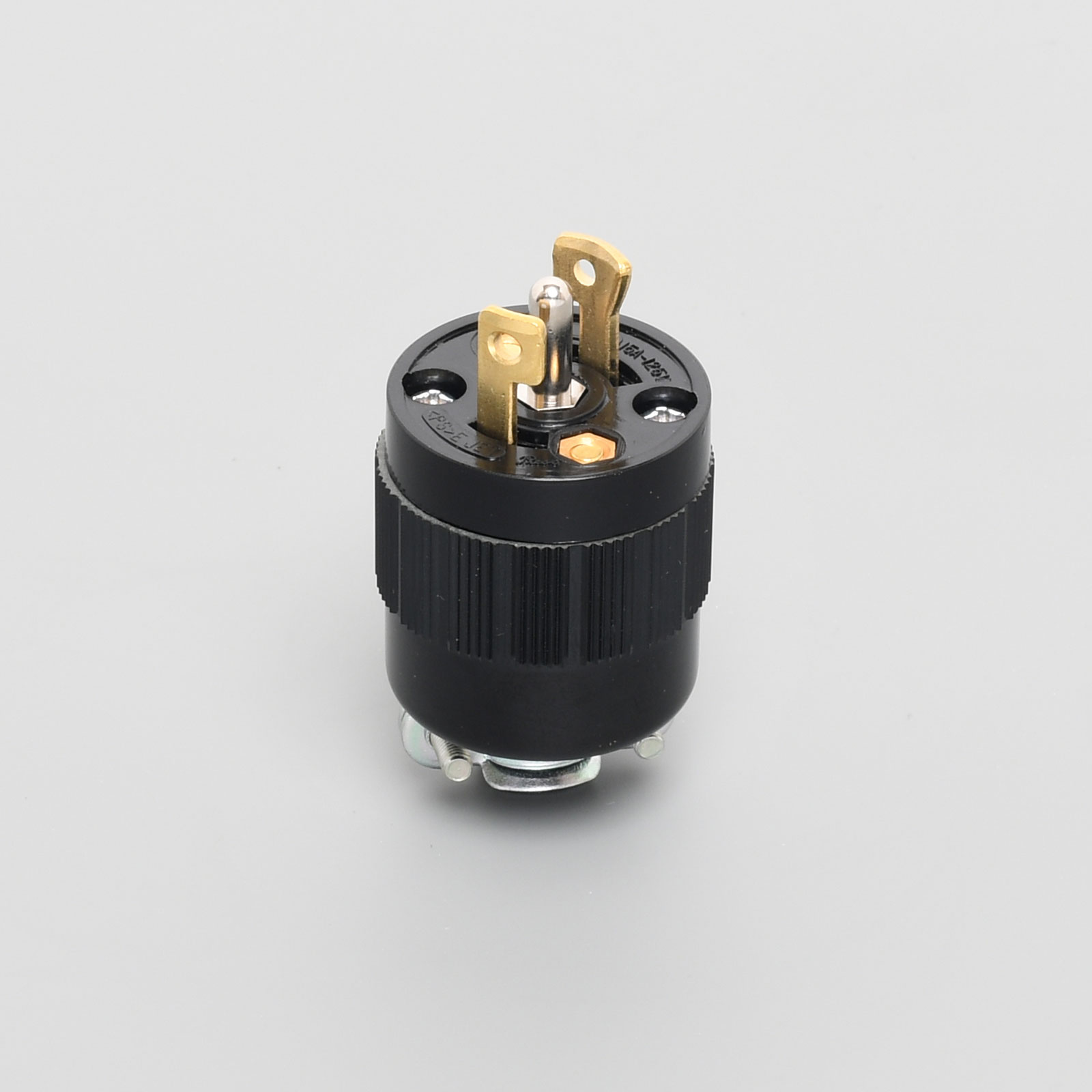

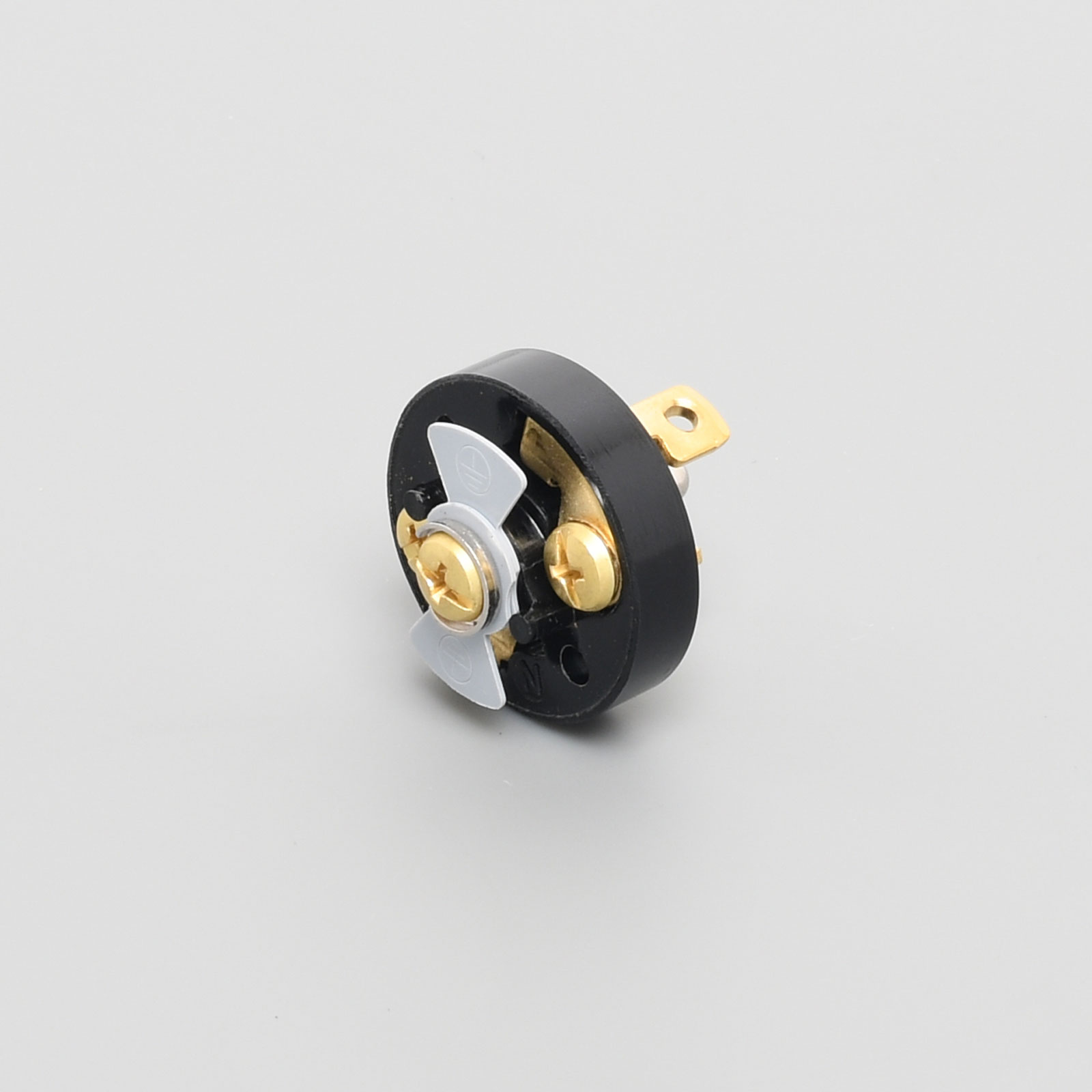

Plug (Thermoset Resin)

Plug (Thermoset Resin)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 125V

Plug (Thermoset Resin)

  • Catalog No.

    43

  • Price(JPY YEN)

    ￥0

  • Discontinued Date

    November, 2020

  • Alternative Product

    3112N, 3112N-L5

Twist Locking

  • Color

    Black

  • Wire Size

    VCT 2mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R2-3.5

  • Body Flammability

    UL94 V-0

  • Weight

    35.1g

  • Note

    Thermoset Resin
    Discontinued Product
    RoHS2 Compliant

Feauture

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.
The material of the main body is made of thermosetting resin excellent in durable and insulation properties.
Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
