45

Discontinued

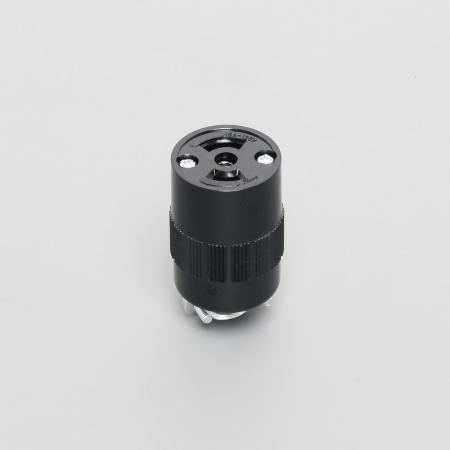

Connector Body (Thermoset Resin)

Connector Body (Thermoset Resin)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 125V

Connector Body (Thermoset Resin)

  • Catalog No.

    45

  • Price(JPY YEN)

    ￥0

  • Discontinued Date

    November, 2020

  • Alternative Product

Twist Locking

  • Color

    Black

  • Wire Size

    VCT 2mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R2-3.5

  • Weight

    38.9g

  • Note

    Thermoset Resin
    Discontinued Product
    RoHS2 Compliant

Feauture

Connector Body is the portable relay receptacle which is provided with means for attachment to a flexible cord and which is not intended for permanent mounting, and is used to connect to an inlet for receiving power and to supply power.
The material of the main body is made of thermosetting resin excellent in durable and insulation properties.

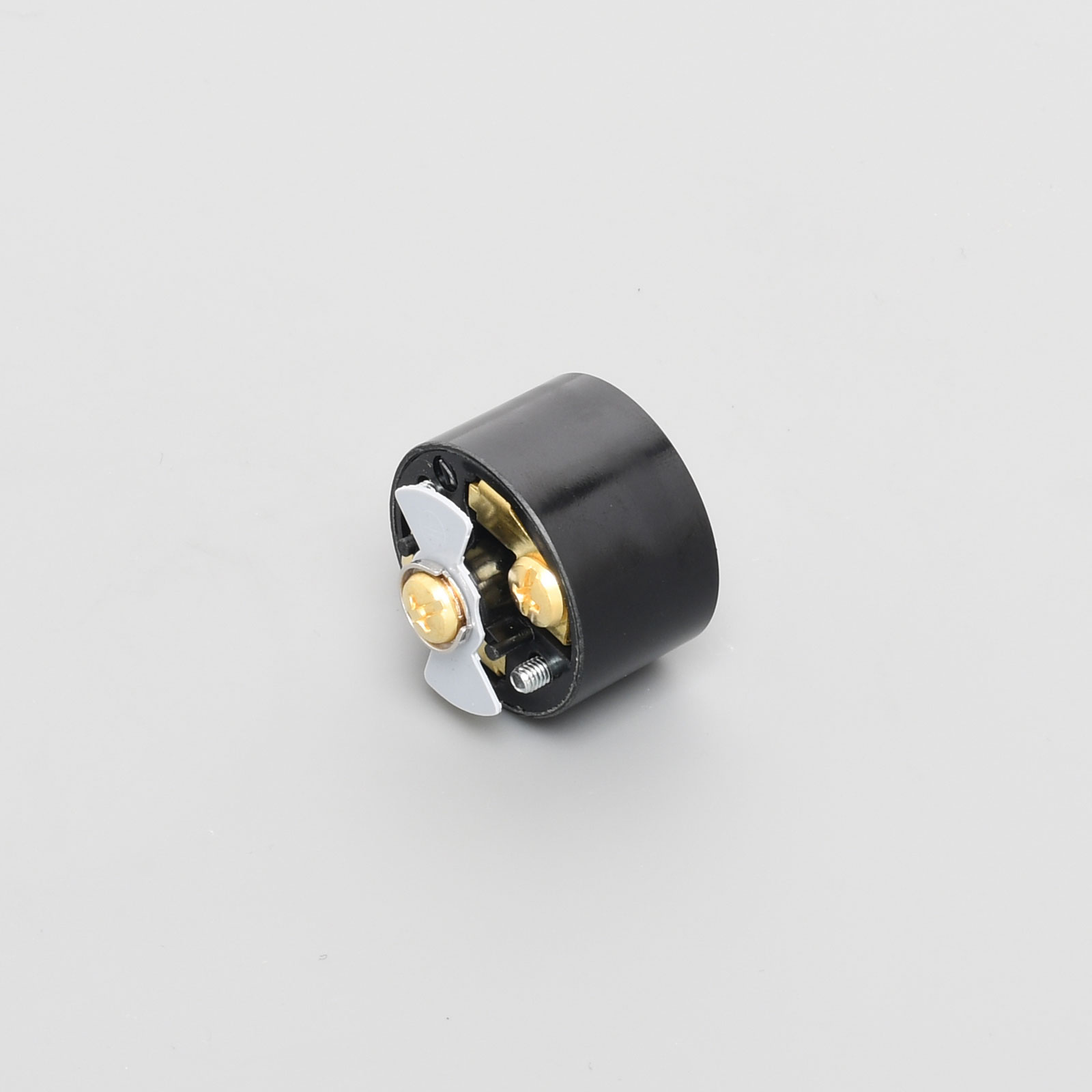

Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
